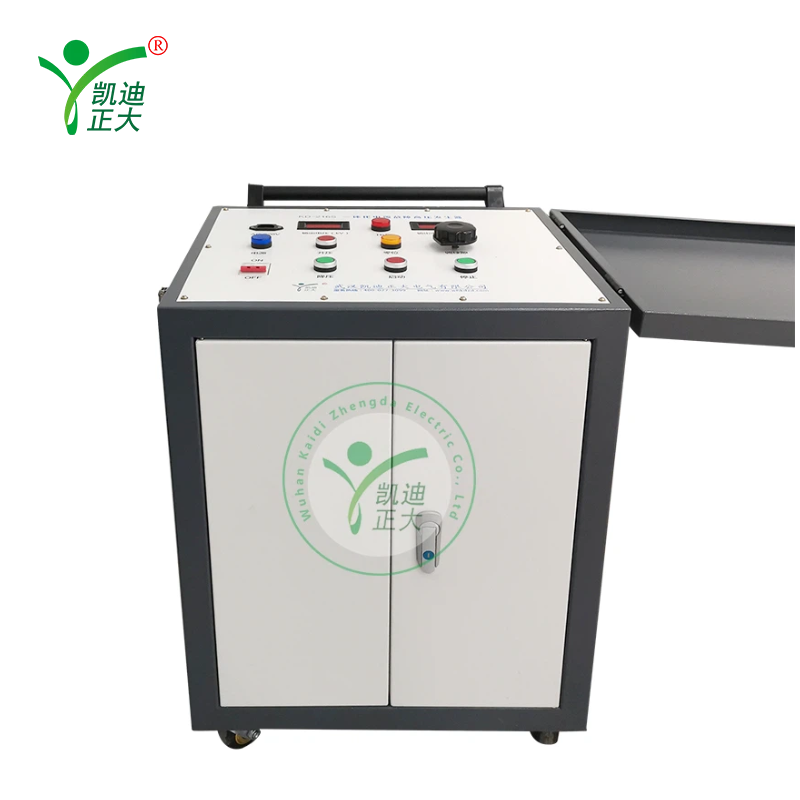

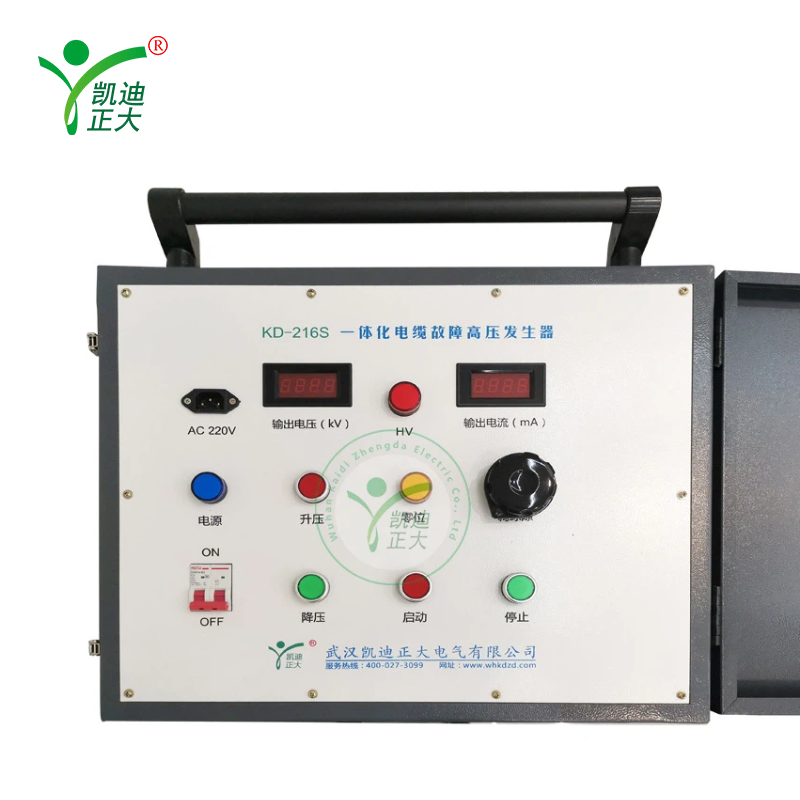

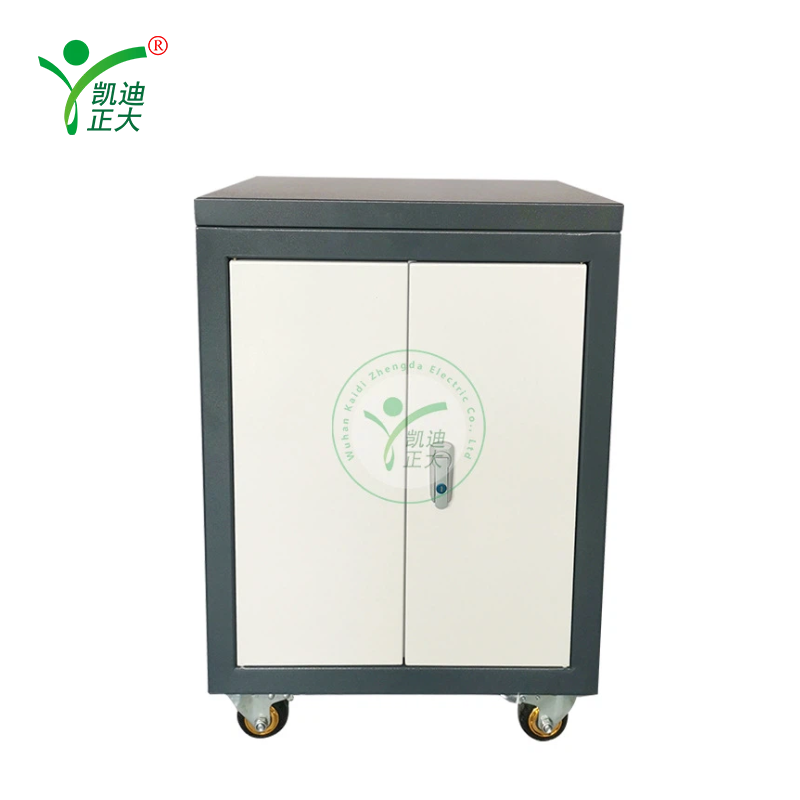

KD-216S Integrated High-Voltage Generator
KD-216S Integrated High-Voltage Generator

KD-216S Integrated High-Voltage Generator

Applications:

KD-216S is used for fault testing and route identification of various copper/aluminum power cables and communication cables from 380V up to 380kV. It detects open/short circuit, high/low resistance, grounding, flashover and poor contact faults for power and telecommunication maintenance.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

An integrated high-voltage generator supporting multiple test methods and adjustable HV output. It features stable energy storage, wide cable compatibility and high-precision measurement, ideal for full-range cable fault testing and pre-location.

Features:

  1. Supports multiple test methods: low-voltage pulse, impulse flashover, triple pulse, multiple pulse and velocity measurement.
  2. Wide cable voltage compatibility from 380V to 380kV for various power and communication cables.
  3. Selectable output high voltage: 0–8kV, 0–16kV, 0–32kV with corresponding built-in capacitance switching.
  4. Three high-voltage output modes: DC, single pulse and periodic pulse with adjustable time parameters.
  5. High test resolution of 0.5m and blind zone ≤0.5m for accurate and reliable fault detection.
  6. Built-in high-energy storage capacitor with maximum energy ≥1024J for stable impulse testing.
  7. Automatic and manual impulse modes for flexible operation in different testing scenarios.
  8. Wide-range power input and strong environmental adaptability for field and laboratory use.

Parameter:

  1. Sampling method: Low-voltage pulse, impulse flashover, triple pulse, multiple pulse, velocity measurement
  2. Sampling rate: 200 MHz, 100 MHz, 80 MHz, 40 MHz, 20 MHz, 10 MHz
  3. Pulse width: 0.05μs, 0.1μs, 0.2μs, 0.5μs, 1μs, 2μs, 8μs
  4. Wave velocity: XLPE, PVC, oil-immersed paper, non-dripping oil, custom
  5. Impulse high voltage: ≤35kV
  6. Applicable cable voltage: 380V, 600V, 10kV, 35kV, 110kV, 220kV, 380kV
  7. Testing distance: ＜60km
  8. Blind zone: ≤0.5m
  9. Resolution: 0.5m
  10. Testing accuracy: 0.5m
  11. Selectable HV: 0～8kV, 0～16kV, 0～32kV
  12. Voltage division accuracy: Class 1.5
  13. Built-in capacitor: 8μF/32kV, 8μF/16kV, 2μF/32kV
  14. 0～8kV: 32µF
  15. 0～16kV: 8µF
  16. 0～32kV: 2µF
  17. Discharge cycle: 0～99s adjustable
  18. Discharge time: 1～99s adjustable (typical 0.3s)
  19. HV output mode: DC, single pulse, periodic pulse
  20. Max energy storage: ≥1024J
  21. Impulse time: Auto ~4s, manual adjustable
  22. Impulse power: 2kVA
  23. Working power: AC 220V±10%, 50Hz±2Hz
  24. Operating temperature: -10℃～40℃
  25. Operating humidity: ≤80%
  26. Altitude: ≤1000m
  27. Dimensions: 534(L)×444(W)×805(H) mm
  28. Weight: ≤75kg
