KD2670J AC/DC Voltage Breakdown Tester 10kV/20mA for Insulation Materials

KD2670J AC/DC Voltage Breakdown Tester 10kV/20mA for Insulation Materials

Applications:

Complies with GB/T1408.1-2006, used to test breakdown voltage and withstand voltage of electrical components and solid insulation materials like plastic, ceramic and rubber, widely applied in electronics manufacturing, electrical equipment production and lab insulation performance detection.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

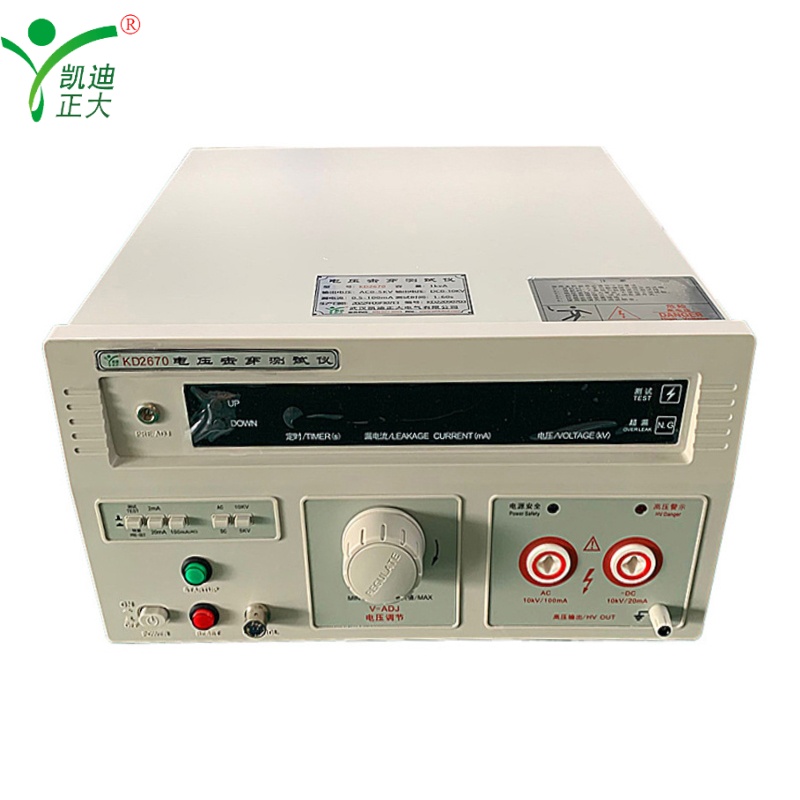

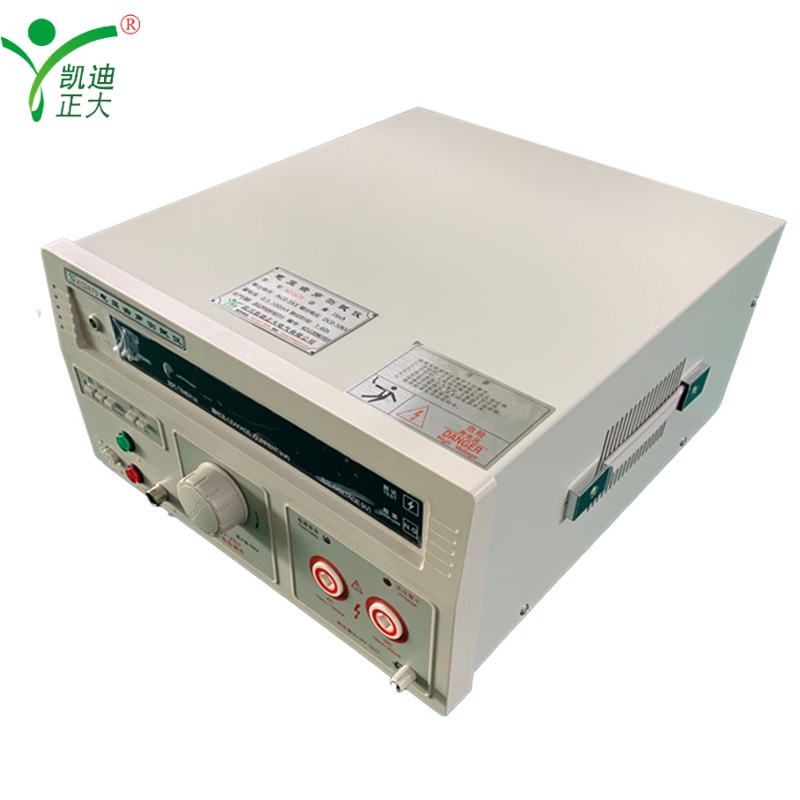

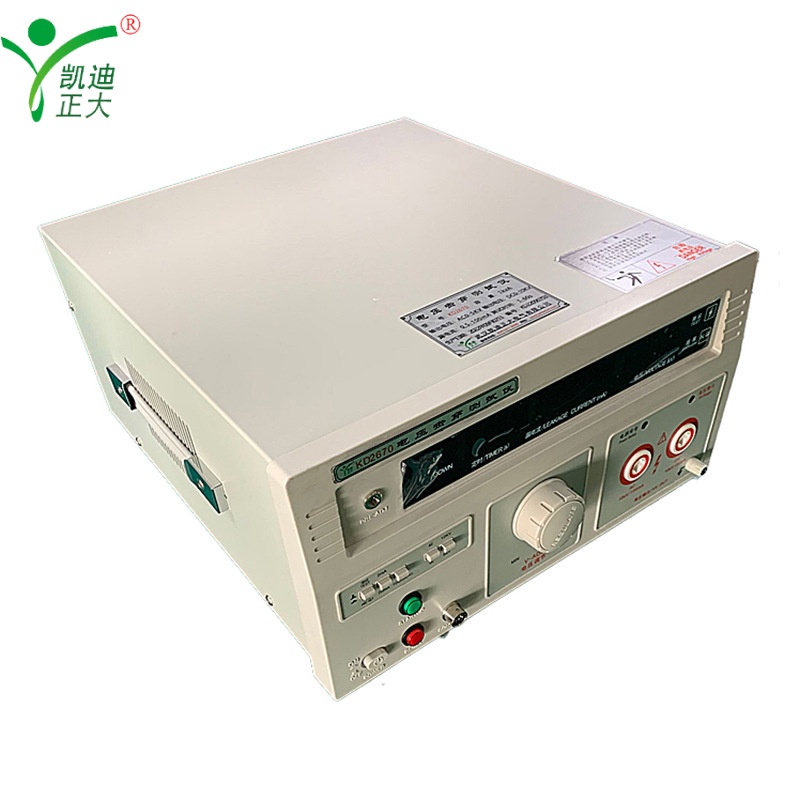

KD2670J is a microprocessor-controlled AC/DC voltage breakdown tester with 10kV output, equipped with multiple electrodes, supporting timed/manual/remote tests. It features automatic over-leakage alarm and precise digital display, for insulation material breakdown detection.

Features:

10kV AC/DC wide voltage output to meet high-voltage breakdown test demands
Configurable standard and optional electrodes for diverse insulation material testing
Multi-range leakage current measurement with free preset of alarm value
Digital display of voltage/current/time with high measurement accuracy
Automatic power-off and audible alarm when leakage current exceeds preset value
Support manual/timed/remote test modes with flexible operation
Low static power consumption and compact design for easy use in various scenarios

Parameter:

Core Output Performance (KD2670J)
- Output voltage: AC 0～10kV, DC 0～10kV (3-digit digital display, accuracy ±5%)
- Leakage current range: AC 0～2mA/20mA/200mA, DC 0～2mA/20mA (3.5-digit digital display, accuracy ±5%)
- Output power: 1500VA; Output waveform: 50/60Hz sine wave (consistent with power supply)
Time Setting
- Timing range: 1～99s, accuracy ±1%; Support manual/timed test mode via switch
Power Supply & Power Consumption
- Input power: AC 220V±10%, 50/60Hz single-phase
- Static power consumption: ≤30W
Physical Specification
- Weight: 32kg
Electrode Configuration
- Standard: 1 set of Φ25mm cylindrical electrodes, 1 set of spherical-cylindrical combined electrodes
- Optional: Φ25/75mm sheet electrodes, enameled wire electrodes, tube electrodes (brass material)
Functional Interfaces & Indicators
- Interfaces: 5-pin remote control socket, high-voltage output terminal, grounding terminal, AC220V power socket
- Indicators: Test light, over-leakage light (with audible alarm)
- Knobs/Switches: Voltage adjustment knob, AC/DC conversion switch, leakage current range/preset/test switch, timing/manual switch
Protection & Operation
- Automatic protection: Over-leakage triggers immediate power-off and alarm
- Remote control: Support remote test rod (timing function invalid in remote mode)
- Operation: Reset/start buttons, stepless voltage adjustment, leakage current preset potentiometer
Series Model Reference
- KD2670: AC 0～5kV, 0～2/20mA, 100VA, 7/15kg
- KD2670A: AC/DC 0～5kV, 0～2/20mA(AC)/2/10mA(DC), 200VA,15/32kg
- KD2670B: AC/DC 0～5kV, 0～2/20/100mA(AC)/2/20mA(DC),1000VA,32kg
