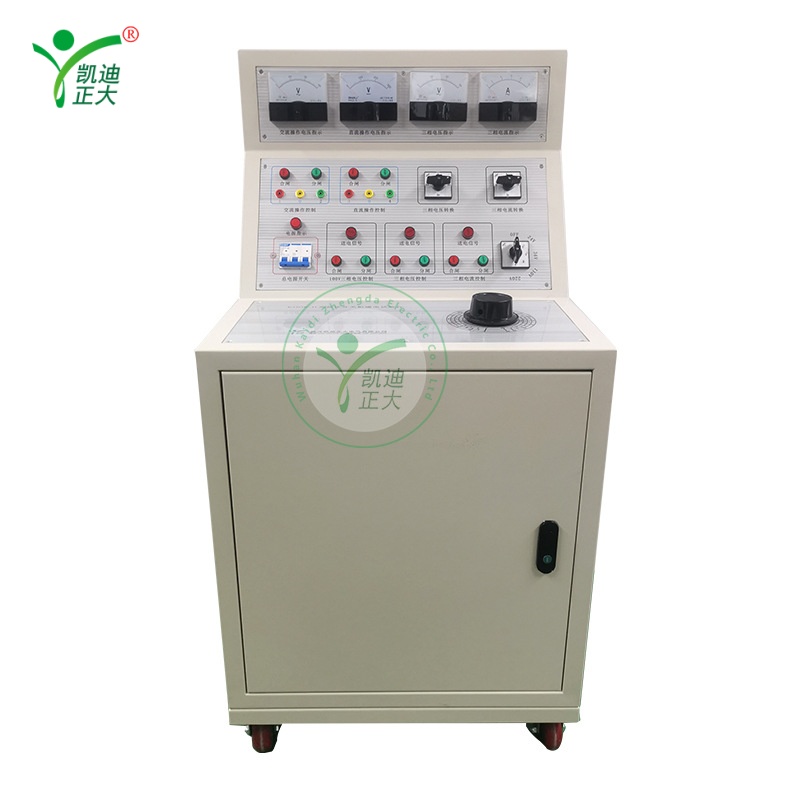

The KDGK-II High/Low Voltage Switchgear Power-on Test Bench is a professional calibration device designed for switchgear manufacturers to conduct comprehensive pre-delivery tests. It integrates voltage regulators, high-precision analog meters, AC contactors, and control buttons to deliver multiple fixed and adjustable AC/DC power outputs. Compliant with relevant electrical standards, it supports safe testing of switchgear action characteristics, enabling efficient quality control and performance analysis for production and inspection departments. Its robust cabinet structure with casters ensures easy movement in workshop environments.

• Multiple fixed and adjustable AC/DC power outputs to meet diverse testing needs
• High-precision analog ammeters and voltmeters for intuitive parameter monitoring
• Modular control panel with clear buttons and indicators for easy operation
• Built-in safety protection mechanisms to ensure reliable testing operations

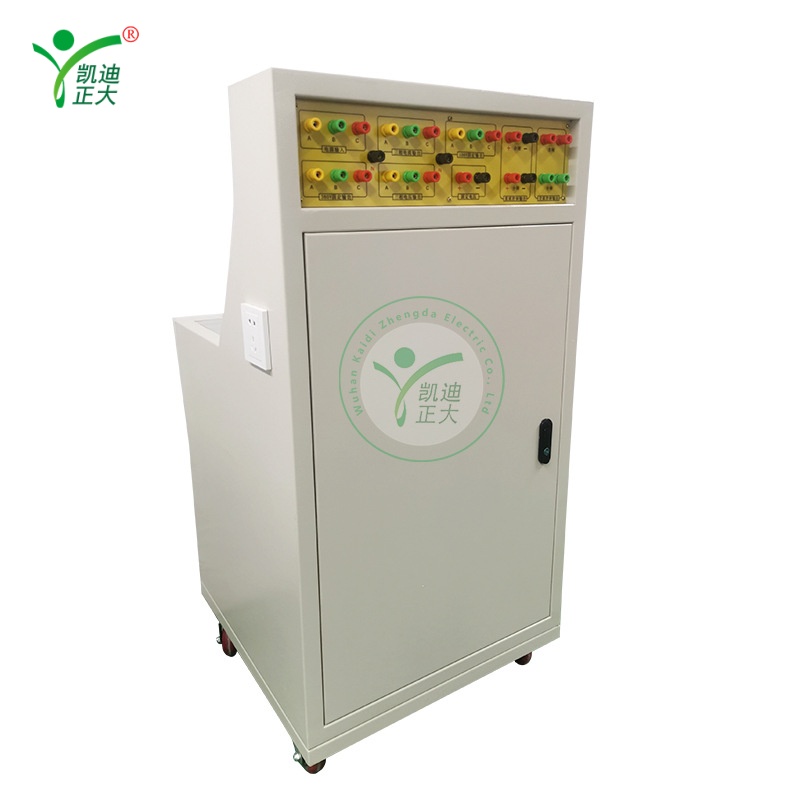

• Robust cabinet design with casters for convenient workshop mobility
• Compliant with national standards for low-voltage switchgear testing
• Supports comprehensive measurement and analysis of switchgear action characteristics

• Model: KDGK-II
• Input Power: Three-phase four-wire AC 380V
• Outputs:
  • 3-phase AC 100V (fixed): 1 group
  • 3-phase AC 0~10A (100V, adjustable): 1 group
  • AC operating voltage: AC 0~400V
  • DC operating voltage: DC 0~260V: 1 group
• Dimensions: 780mm × 620mm × 1100mm
• Weight: 55kg
• Application: Factory pre-delivery testing of high/low voltage switchgear
