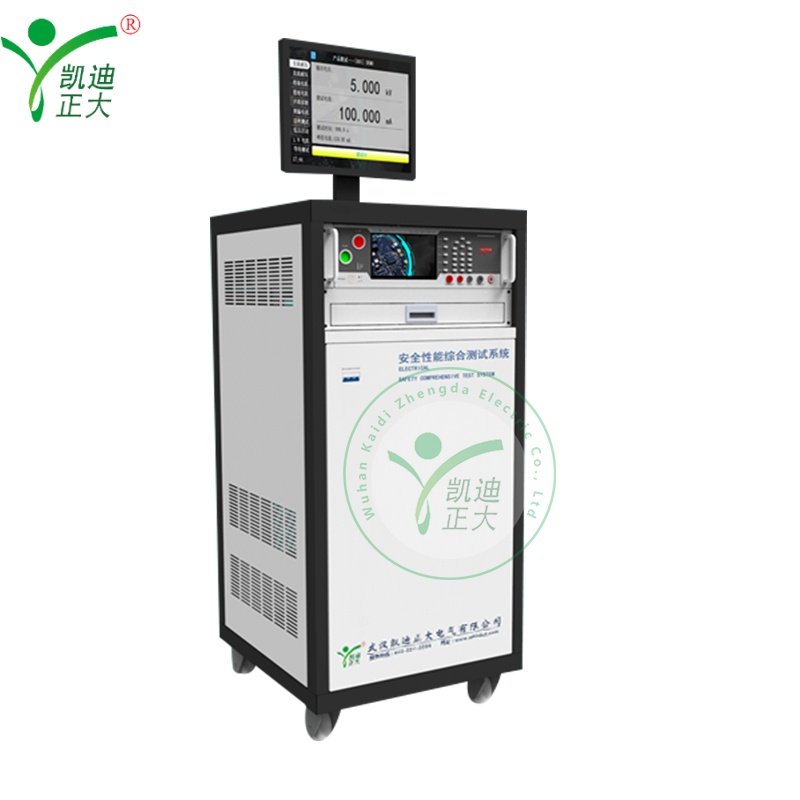

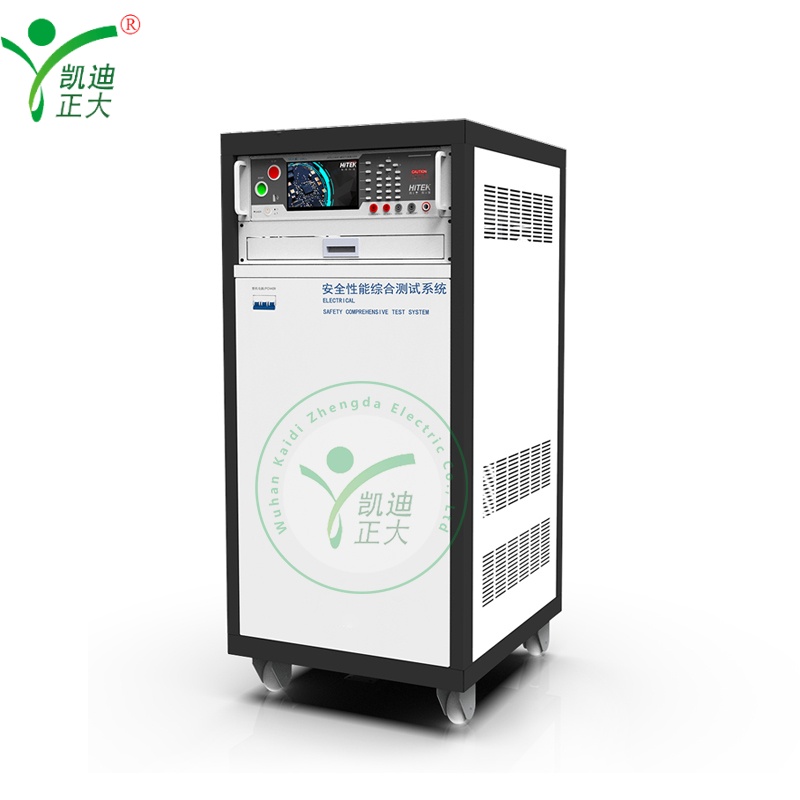

KDZD9661T Electrical Safety Comprehensive Test System
KDZD9661T Electrical Safety Comprehensive Test System

KDZD9661T Electrical Safety Comprehensive Test System

Applications:

Widely used in motors, home appliances, 3C, new energy, wiring harness, power supplies and laboratory instruments. Suitable for production lines and inspection labs, meets national & international safety standards, supports customized test requirements.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDZD9661T integrates 8 test functions with 7-inch touch screen. It supports one-key auto test, parallel measurement, full protection, rich interfaces and MES docking. High accuracy, fast test speed, compact size, stable performance for efficient safety testing.

Features:

  • One-time wiring, automatic test with 100 built-in test programs
  • Hardware & software dual protection for safe operation
  • 20ms fast test item switching for automated lines
  • Supports USB, RS232/485, LAN, PLC and MES connection
  • Admin & operator password authority management
  • Grounding + withstand/insulation parallel test to save time

Parameter:

  • AC Withstand: 5kV/100mA, 100–5000V, accuracy ±(1%×set+5V)
  • DC Withstand: 6kV/20mA, 100–6000V, ripple <2%
  • Insulation: 2500VDC/50GΩ, 0.1MΩ–50GΩ measuring range
  • Grounding: 40A/600mΩ, meets medical R<100mΩ requirement
  • Leakage: supports dynamic & static mode, multi-mode measurement
  • Power: 0.1W–12kW, accuracy 0.2%, supports PF & frequency test
  • Display: 7-inch touch screen, Chinese/English
  • Interfaces: USB, RS232, LAN, I/O, PLC, alarm
  • Power: AC220V±10%, 50Hz±5%, 10A
  • Dimensions: 430×130×470mm, Weight: 20kg
