KDYZ-FB Square Wave Impulse Current Test Equipment

KDYZ-FB Square Wave Impulse Current Test Equipment

Applications:

Designed for residual/leakage current tests of ≤10kV ZnO arresters and resistors (U1mA≤6kV). Applied in arrester manufacturers and power systems to verify performance, complying with ZnO arrester test standards.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

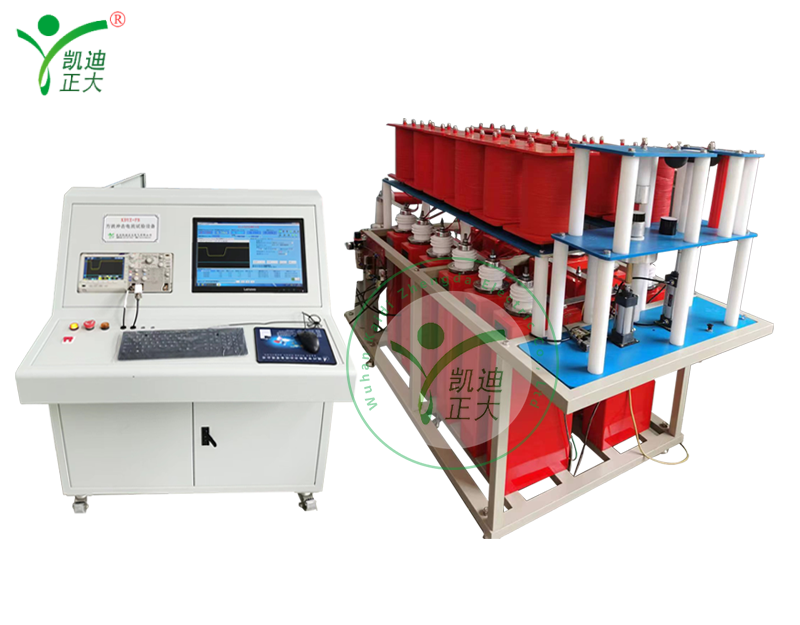

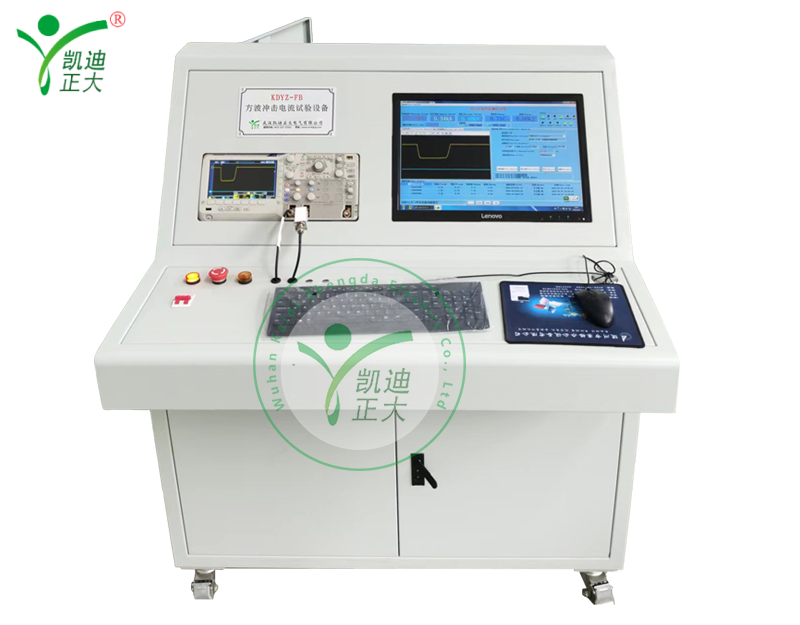

KDYZ-FB is a specialized test device generating 2ms square wave impulse current. It integrates Tektronix oscilloscope, computer control and multiple safety protections, enabling accurate and safe arrester performance testing.

Features:

Outputs 2ms square wave impulse current with rated 800A, meeting ZnO arrester test requirements

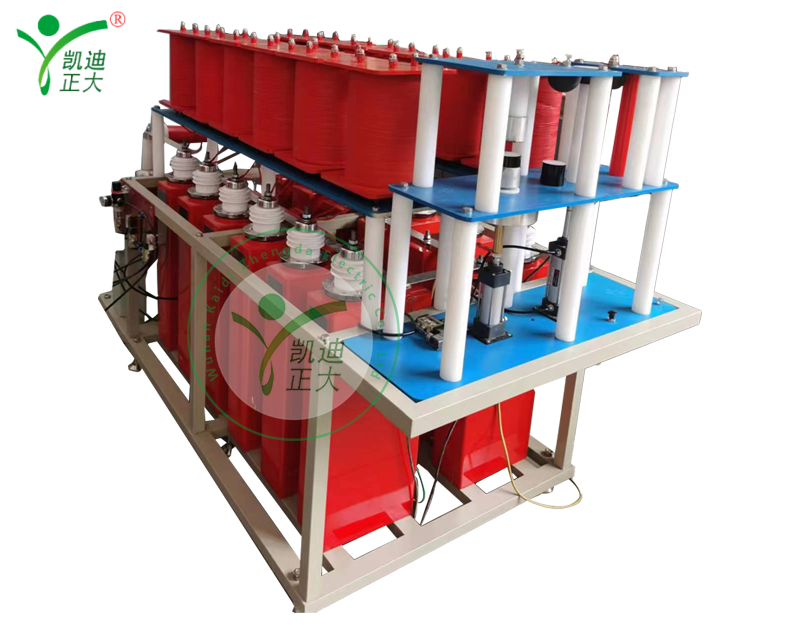

Pneumatic discharge gap with automatic/manual control modes for stable triggering
Rogowski coil (1~1500A, 1% accuracy) for precise current measurement
Computer software analyzes waveform parameters (peak, charge, energy) and manages test data
Comprehensive safety protections: overvoltage/overcurrent, access interlock, automatic discharge, explosion-proof box
Supports data storage in Excel/Word/PDF formats and report printing
Equipped with manual grounding rod for safe operation during maintenance or sample replacement

Parameter:

Core Output Performance
- Current waveform: 2ms square wave; Rated current: 800A (2ms)
- Current polarity: Positive (current display: negative; residual voltage display: positive)
- Energy storage capacitors: 10 units
Measurement Accuracy
- Current measurement: Rogowski coil (range 1~1500A), accuracy ±1%
- System measurement accuracy: ±3%
- Data acquisition: Tektronix oscilloscope
Power & Environment
- Power supply: AC220V±10%, 50Hz
- Ground resistance: ≤0.5Ω
- Applicable test samples: ZnO resistors with U1mA≤6kV
Safety & Control
- Safety functions: Overvoltage/overcurrent protection, access interlock, emergency stop, charging audible-visual alarm, automatic discharge, explosion-proof box for samples
- Control mode: Computer software + oscilloscope (communication & parameter setting), manual grounding rod included
Data Management
- Software functions: Waveform analysis, parameter calculation (peak current, charge, energy), data storage/query, report printing
- Output formats: Excel, Word, PDF
