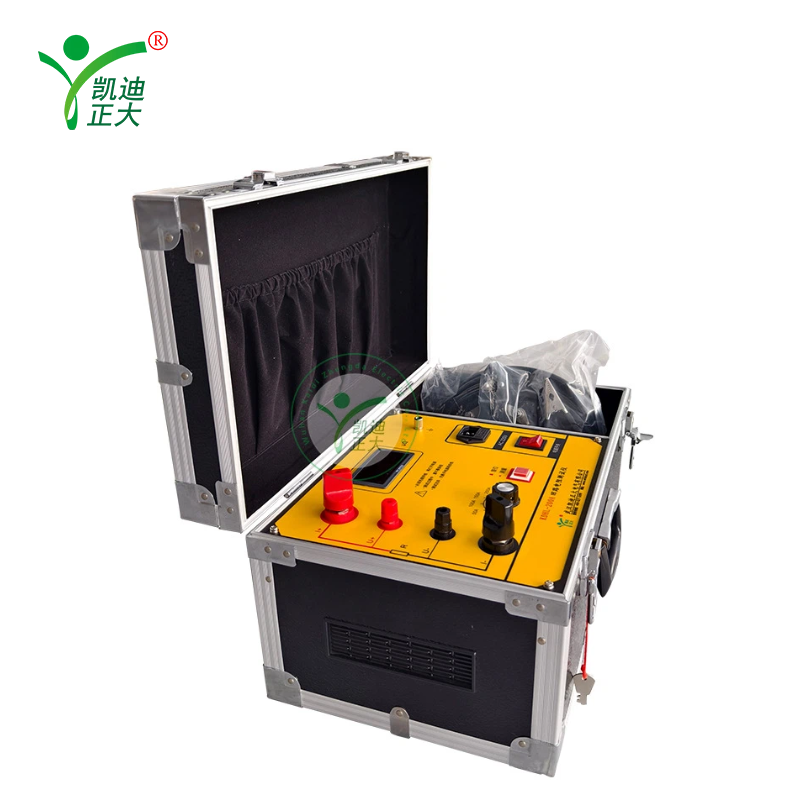

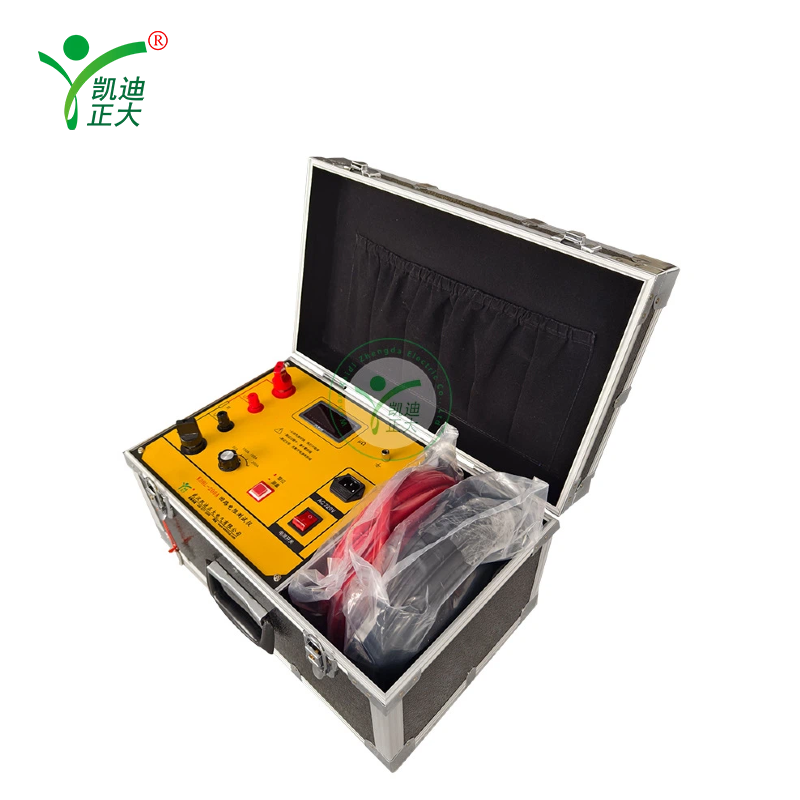

KDHL-200A Loop Resistance Tester
KDHL-200A Loop Resistance Tester

KDHL-200A Loop Resistance Tester

Applications:

Compliant with DL/T845.4-2004 standard, it is ideal for high-precision measurement of contact/loop resistance of high-voltage switches. Also suitable for other scenarios requiring large-current and micro-resistance testing in power supply departments and switch factories.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

Designed with high-frequency switching power supply and digital circuit technologies, it offers 4 fixed DC current outputs (50A/100A/150A/200A) for direct resistance measurement. Features accurate results, stable performance and digital display, meeting on-site maintenance and factory testing needs.

Features:

  1. Continuous large current output effectively breaks through contact oxide films, avoiding drawbacks of pulsed power.
  2. Strong anti-interference: The last digit of LCD stabilizes within ±1 word under severe interference, ensuring stable reading and good repeatability.
  3. Long service life: High-precision resistors eliminate temperature impacts; military-grade connectors enhance vibration resistance.
  4. Portable design: Compact size and lightweight, convenient for on-site carrying and operation.

Parameter:

  1. Measurement range: 1~1999μΩ
  2. Resolution: 1μΩ
  3. Test current: DC 50A, 100A, 150A, 200A (4 fixed output gears)
  4. Measurement accuracy: 0.5%
  5. Working mode: Continuous
  6. Display: 3½-digit LCD
  7. Power supply: AC 220V±10%, 50Hz
  8. Operating conditions: Temperature -10℃~40℃; Humidity ≤80%RH
  9. Dimensions (L×W×H): 380mm×350mm×260mm
  10. Weight: 12kg
