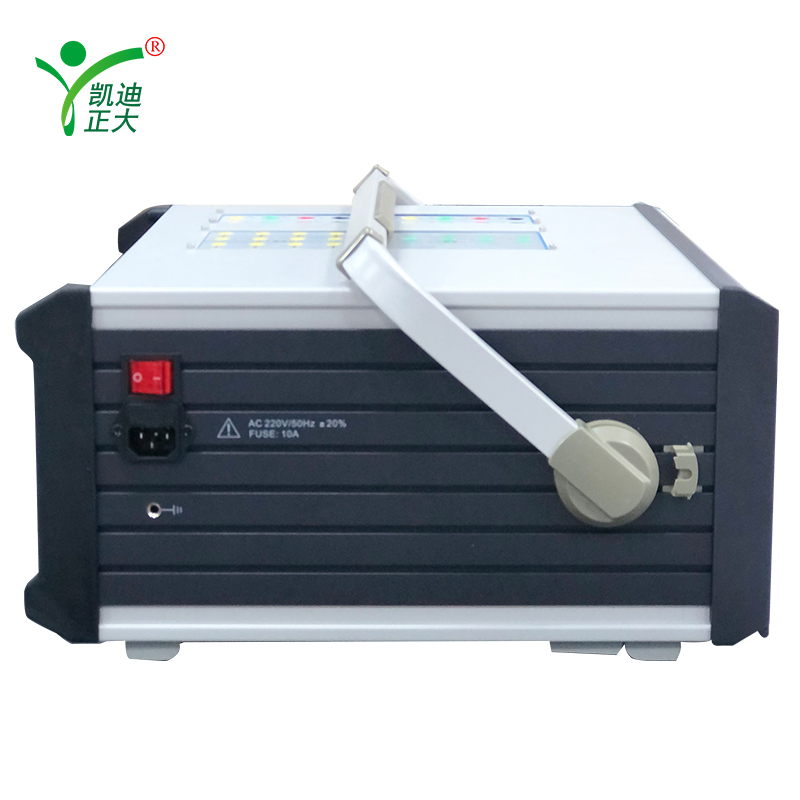

KDJB-1200Y Six Step Relay Protection Tester Microcomputer Relay Protection Calibration Instrument Mi

KDJB-1200Y Six Step Relay Protection Tester Microcomputer Relay Protection Calibration Instrument Mi

Applications:

Commissioning and maintenance of substation protection systems
Testing transformer, generator, and busbar differential relays
Verifying auto-transfer (ATS) logic and sequence control schemes
Simulating symmetrical and asymmetrical multi-phase faults for distance, overcurrent, and directional relays
On-site calibration of microprocessor-based IEDs in utilities, railways, mining, oil & gas, and industrial power networks
Real-time fault playback, protection coordination studies, and acceptance testing

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

The KDJB-1200Y combines advanced digital signal processing, high-fidelity linear amplification, and an all-in-one embedded design to deliver unmatched reliability and precision. Built with a 10.1-inch color touchscreen and a rugged industrial computer, it operates independently—no external PC required. With built-in WiFi, dual Ethernet, GPS synchronization, and USB connectivity, the KDJB-1200Y offers seamless control whether used in the lab or at remote substations. It’s the ideal solution for engineers who demand speed, accuracy, and flexibility in protection system testing.

Features:

Six-Phase Flexibility: 6×30A AC current + 6×120V AC voltage + 6×±10A/±160V DC — perfect for differential, ATS, and complex protection schemes
High-Fidelity Linear Amplifiers: No switching noise; smooth, low-distortion waveforms across full range (µA to 30A)

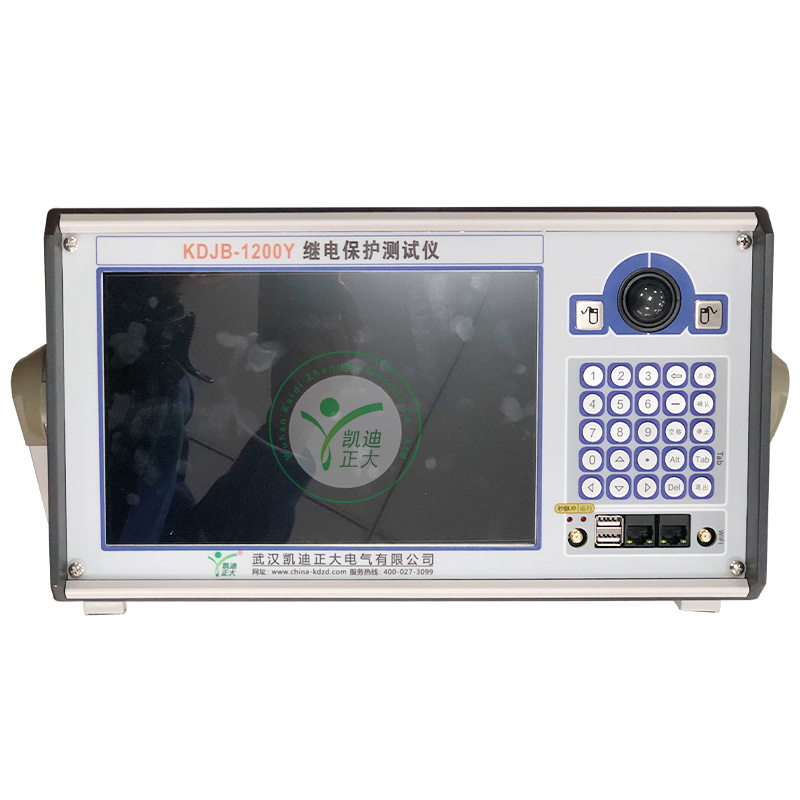

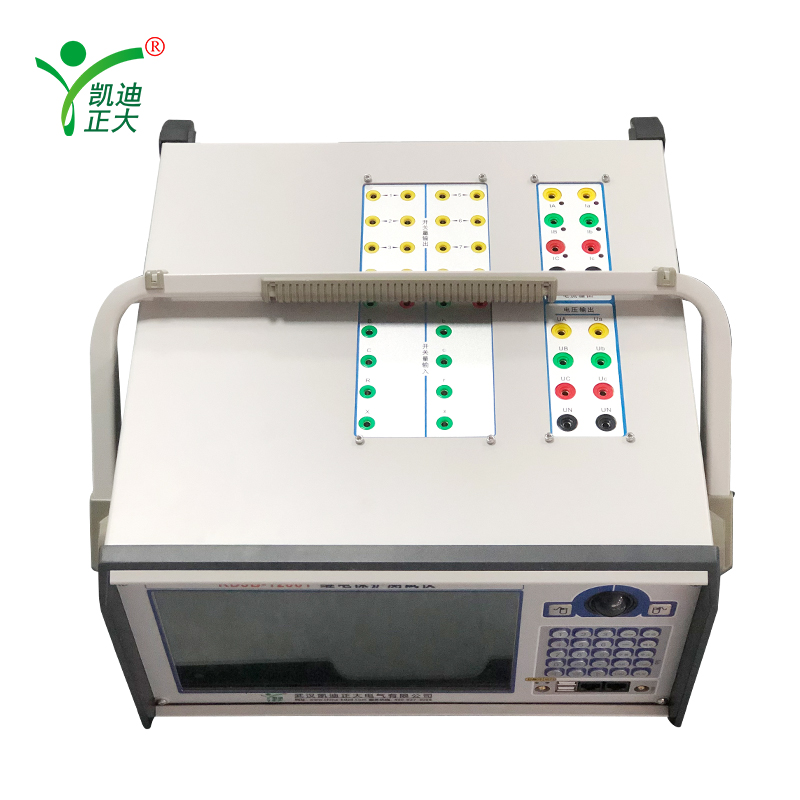

True All-in-One Design: Integrated 10.1" touchscreen, industrial PC, WiFi, dual RJ45, GPS, and USB — eliminates need for external laptop
Ultra-Fast Outputs: 4 fast开出 (≤0.01ms) + 4 conventional开出 (≤1ms) for precise trip/close timing simulation
Intelligent Software: Automated test sequences, fault replay, real-time vector diagrams, report generation, and U盘 data backup

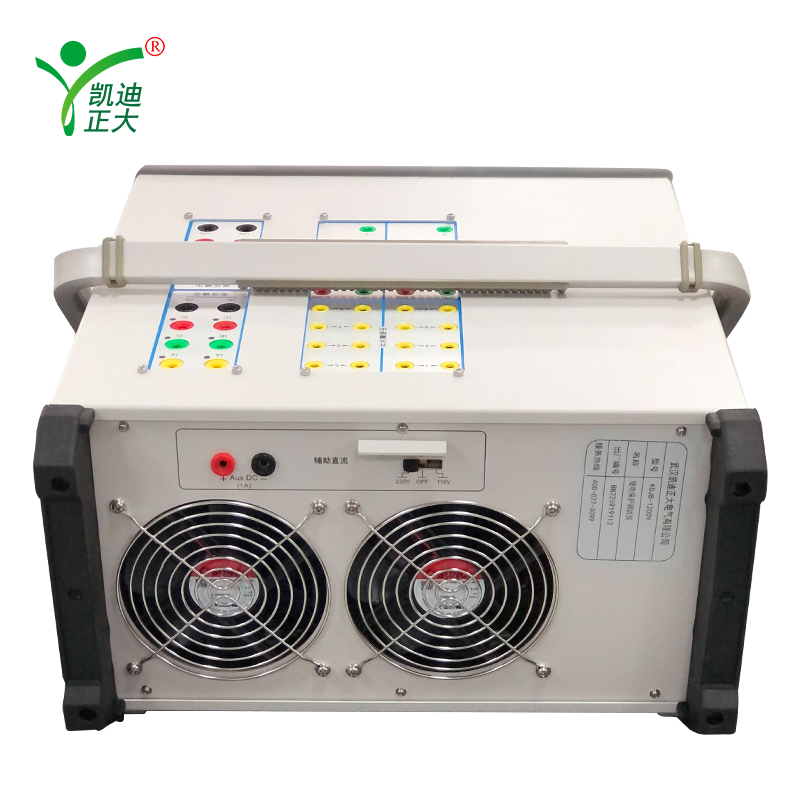

Field-Optimized: Lightweight (19 kg), built-in 110V/220V auxiliary DC supply, and comprehensive protection (overload, overheat, short-circuit)

Parameter:

Category	Specification
Model	KDJB-1200Y
AC Current Output	6×0–30A (0.1% accuracy), max 450VA/phase, frequency: 0–1200Hz, harmonics: 1–24th
DC Current Output	6×0–±10A (0.2% accuracy), max load voltage: 20V
AC Voltage Output	6×0–120V (0.1% accuracy), max 60VA/phase, frequency: 0–1200Hz
DC Voltage Output	6×0–±160V (0.2% accuracy), max 70VA/phase
Digital Inputs	10 pairs (dry contact & potential compatible: “0” = 0–6V / “1” = 11–250V)
Digital Outputs	8 pairs (4 fast ≤0.01ms + 4 conventional ≤1ms); DC 250V/0.3A, AC 250V/0.5A
Time Measurement	Range: 0.1ms – 9999s, accuracy: ≤0.1ms
Auxiliary DC Supply	Switchable 110V/220V, 100VA
Interfaces	Dual RJ45 Ethernet, USB, GPS antenna port, built-in WiFi
Display	10.1" TFT color LCD (1280×800 resolution)
Dimensions & Weight	364 × 200 × 402 mm, 19 kg
