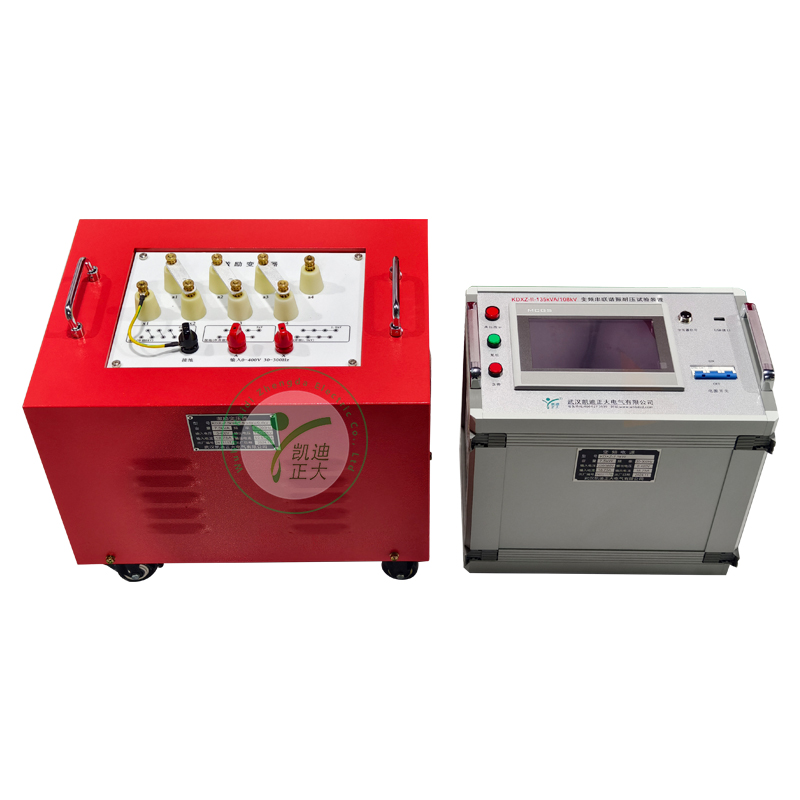

Large screen touch LCD color screen and external mouse directly complete the setting of various parameters, you can set or select parameters such as starting frequency, ending frequency, starting voltage, stage boost and timing, measuring voltage divider ratio, excitation ratio, overvoltage protection, overcurrent protection, flashover protection, test mode, capacitor and inductor frequency exchange calculation, parameter setting tips and help.

Functional characteristics

Parameter display: Touch or external mouse large screen LCD interface display system can display resonance voltage (that is, the target voltage set before the test), test frequency, measurement frequency, low voltage, low voltage current, voltage withstand time, overvoltage protection, overcurrent protection, flashover protection, stage boost and stage timing, operation mode switching, capacitance, inductance, The frequency exchange calculation, parameter query, etc., can also display the frequency curve, voltage curve, etc., which can intuitively judge the accuracy and stability of the resonant frequency of the test.


Parameter setting: Large screen touch LCD color screen and external mouse directly complete the setting of various parameters, you can set or select parameters such as starting frequency, ending frequency, starting voltage, stage boost and timing, measuring voltage divider ratio, excitation ratio, overvoltage protection, overcurrent protection, flashover protection, test mode, capacitor and inductor frequency exchange calculation, parameter setting tips and help.


Automatic test mode: touch screen and external mouse operation, automatic, semi-automatic, manual three operating states. With boost voltage, tuning (including manual, automatic), segmented pressure and timing, operating status, mode switching, fault warning, capacitance and inductance frequency exchange calculation function;

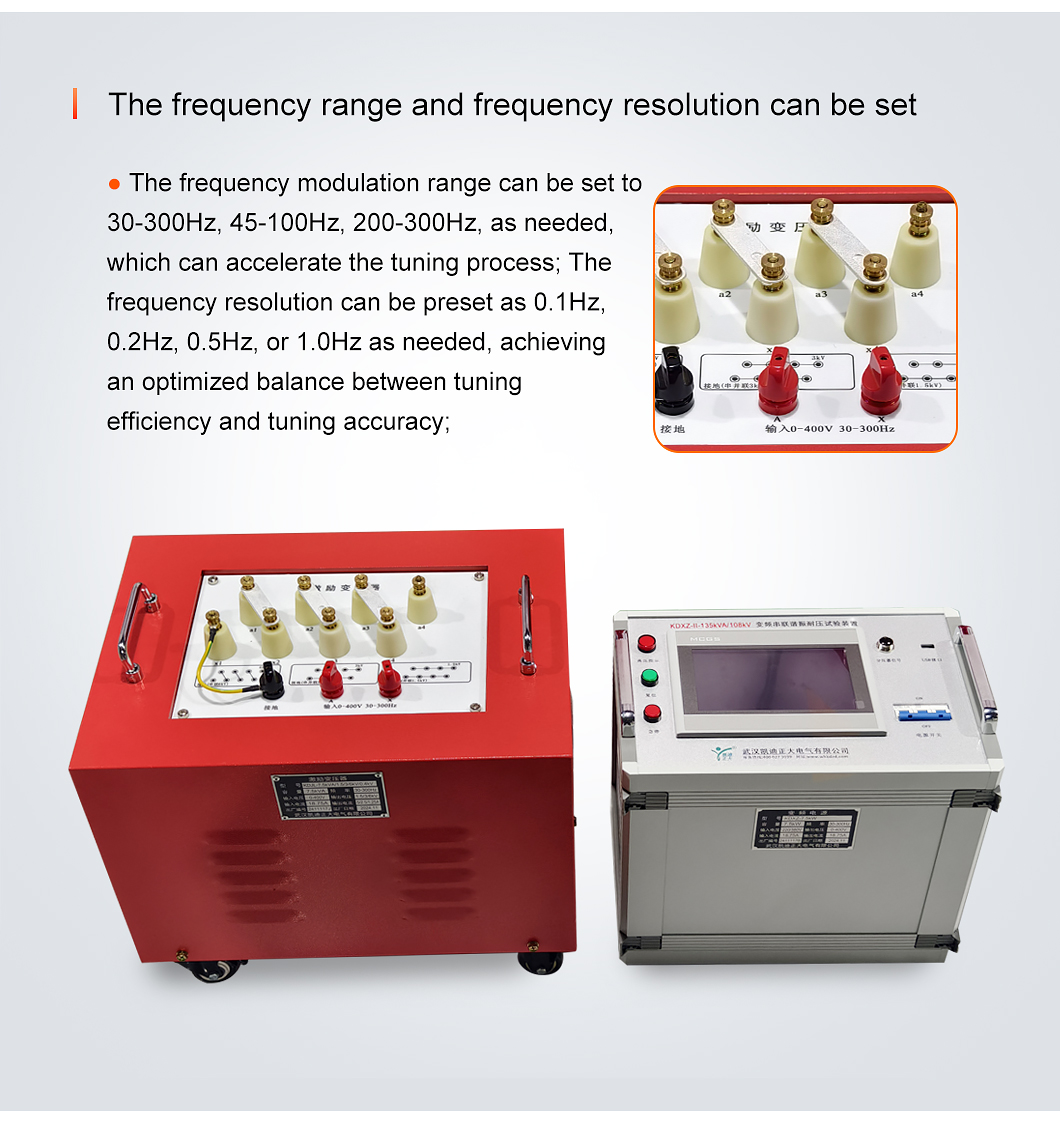

The frequency range and frequency resolution can be set: the frequency range can be set to 30~300Hz, 45~100Hz, 200-300Hz, on demand, can speed up the tuning process; The frequency resolution can be preset to 0.1Hz, 0.2Hz, 0.5Hz, or 1.0Hz as required to achieve an optimal balance between tuning efficiency and tuning accuracy.


Automatic tuning mode: Using the fast tracking method, automatically find the resonant frequency point only about 30~40S, after tuning is completed, lock the resonant frequency. If no resonance point is found, Tuning Failed is displayed in the prompt area. If there is no resonance point between 30Hz and 300Hz during manual tuning, the prompt area displays "No resonance point". In this case, the booster circuit is automatically cut off. Do not continue to increase the pressure, to ensure the safety of the test products, equipment, personal safety.


Overcurrent protection: built-in multiple automatic overcurrent protection, when the output current of the inverter power exceeds the rated value of 1.1 times the protection setting value, automatically cut off the output of the whole device. When the output current of the inverter power supply exceeds the set value, the output is automatically cut off.


Overvoltage protection: built-in multiple automatic overvoltage protection, can manually set the test voltage value, when the test voltage exceeds the setting value of 1.1 times, through the hardware and software real-time judgment quickly cut off the entire device output, effectively ensure the safety of inverter power supply and operators. The sampling value of the current sensor is calculated by DSP. When the current value exceeds 1.1 times of the theoretical value, the output is quickly cut off to prevent the voltage divider or the ratio of the voltage divider is set incorrectly, which leads to the overvoltage of the test product.


Sample flashover discharge protection: with sample discharge or flashover protection function, when there is a high-voltage discharge flashover in the test or boost voltage, the entire device will be automatically cut off, and will not cause harm to the test equipment and personal injury, and the electronic components inside the inverter power supply will not damage the breakdown.


Power failure protection: with power failure protection function, a special protection function module is installed in the output end of the frequency conversion control power supply. When the input power suddenly fails during the test or boost process, the resonant feedback to the host energy is absorbed, and the output is quickly short-circuited, so that the energy of the resonant system is rapidly consumed; The special function module can still work for more than 10S after the power supply is suddenly disconnected, ensuring that the energy consumption process is completely completed. Automatic cutting of the entire device, and will not cause damage to the test equipment and personal injury, frequency conversion power supply internal electronic components will not damage breakdown.


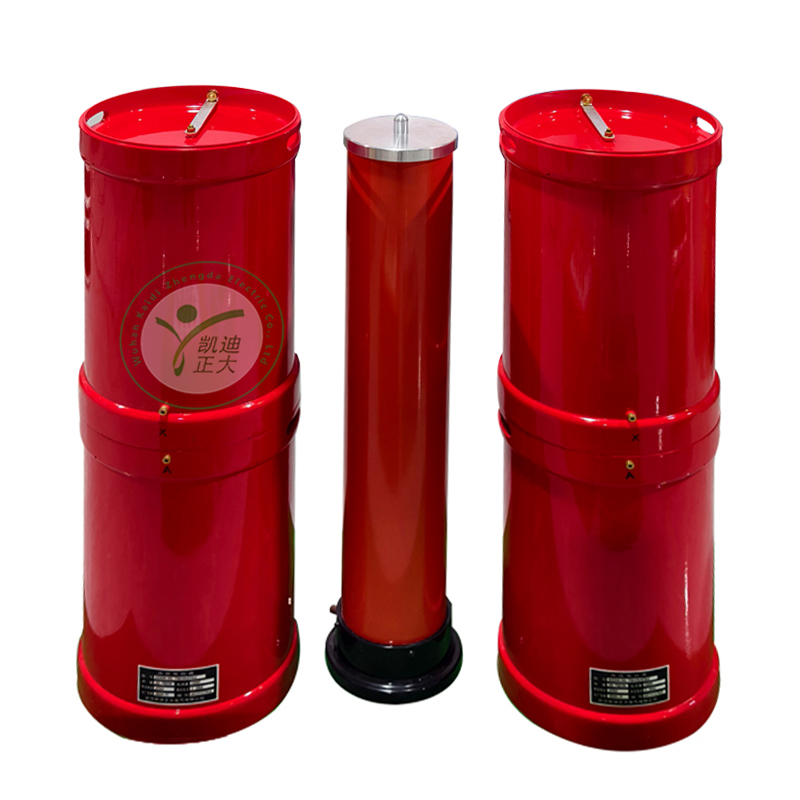

Connection error protection: Protection when the test line is incorrectly connected or disconnected. (such as frequency conversion control power supply, excitation transformer, resonant reactor, capacitor voltage divider and other connection lines).
