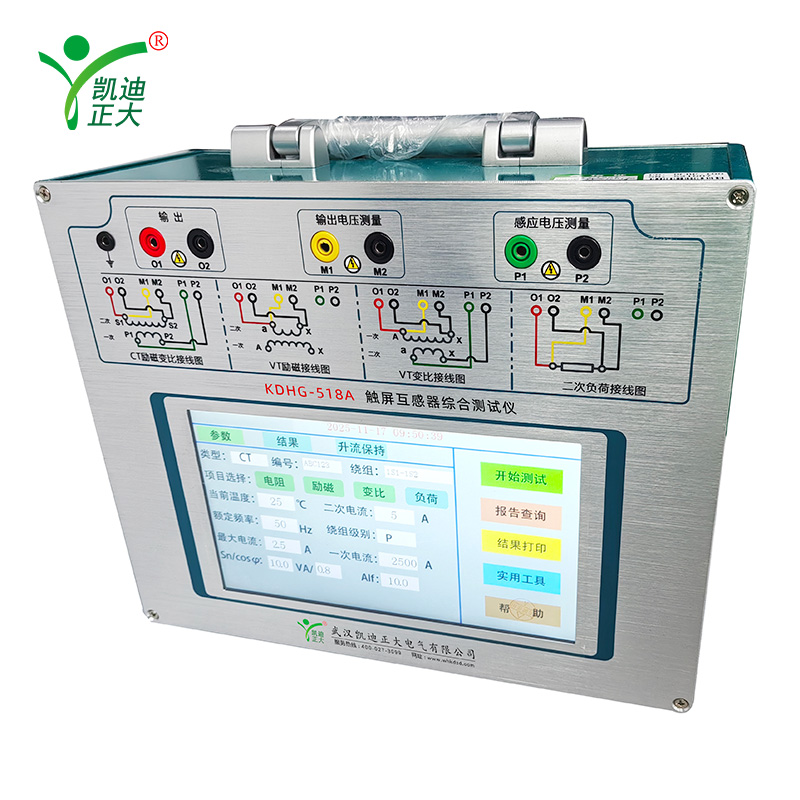

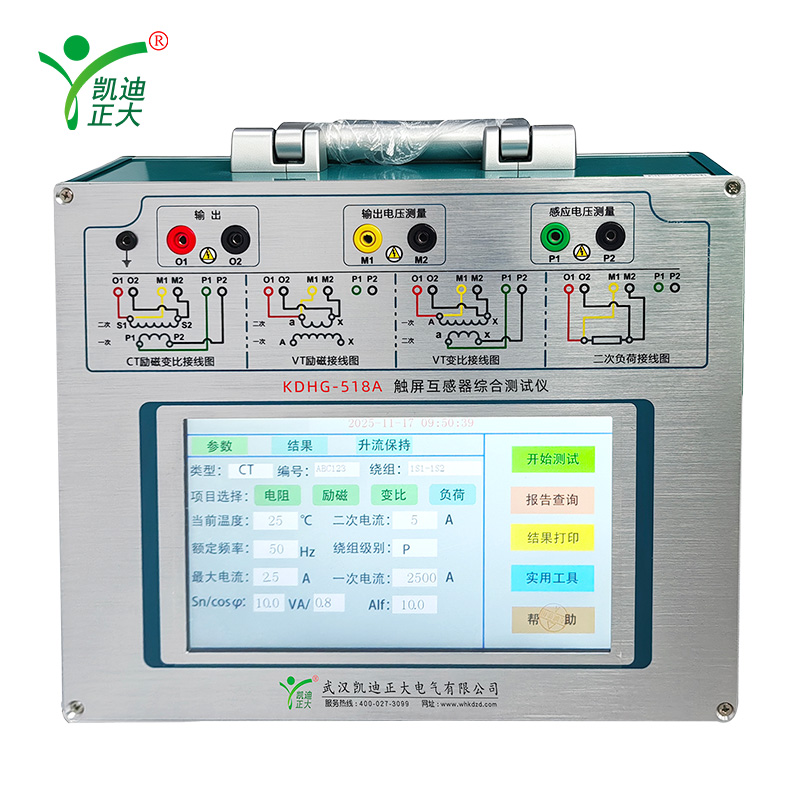

The KDHG-518A Touch Screen CT/VT Analyzer is a versatile, next-generation testing instrument designed for the power industry. It is used for the comprehensive testing of various types of Current Transformers (CTs), including protection, metering, and TP class, as well as electromagnetic and capacitive Voltage Transformers (VTs). This device is essential for power plants, substations, and electrical testing laboratories to ensure the accuracy, safety, and reliability of transformer installations by performing a wide range of diagnostic tests.
Response within
24 hours
Free warranty
12 month
On-line training
Support
| Parameter | Specification |
|---|---|
| Model Number | KDHG-518A |
| Power Supply | AC 220V ±10%, 50Hz |
| Output | 0~180Vrms, 10Arms, 20A (Peak) |
| Voltage Measurement Accuracy | ±0.2% |
| CT Ratio Measurement | Range: 1~30000, Accuracy: ±0.2% |
| VT Ratio Measurement | Range: 1~10000, Accuracy: ±0.5% |
| Phase Measurement | Accuracy: ±5min, Resolution: 0.5min |
| Secondary Winding Resistance | Range: 0~300Ω, Accuracy: 0.2%±2mΩ |
| Secondary Burden Measurement | Range: 0~300VA, Accuracy: 0.2%±0.2VA |
| Operating Environment | Temperature: -10°C~50°C, Humidity: ≤90% |
| Dimensions (W*D*H) | 355mm × 285mm × 150mm |
| Weight | < 9kg |
