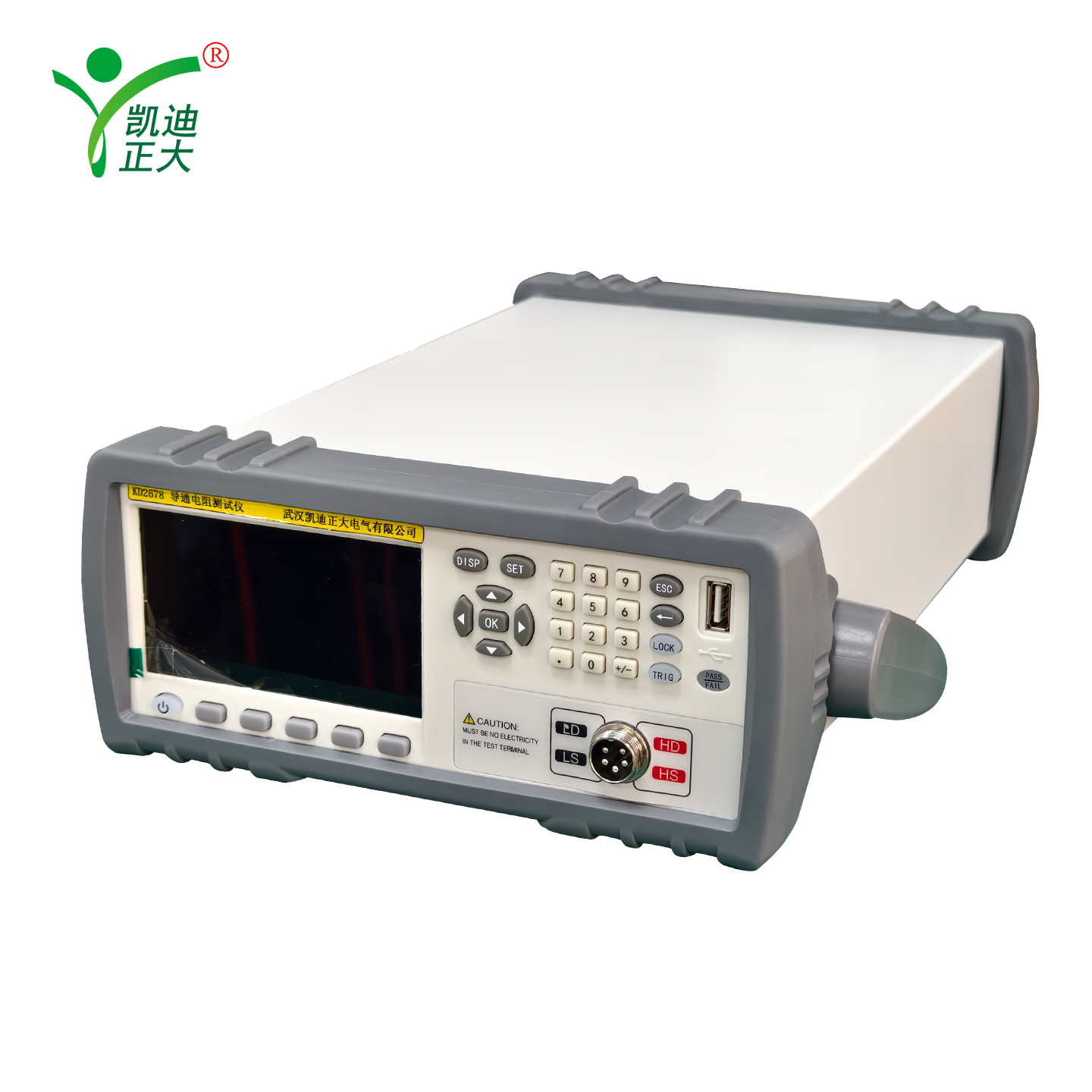

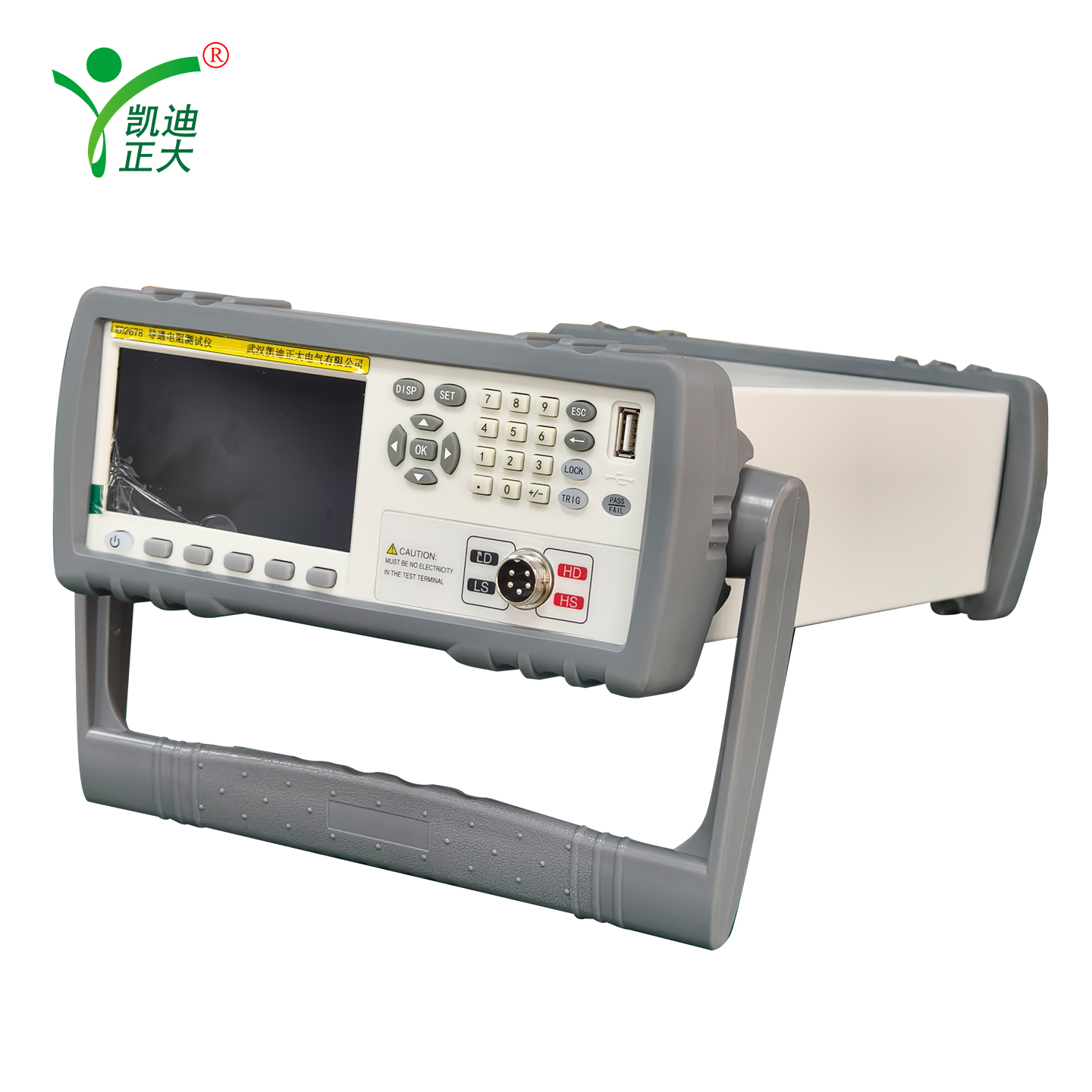

The KD2678 Series Conductive Resistance Tester is a high-precision instrument designed for the electronics, electrical, and manufacturing industries. It is used for measuring the DC resistance of various components, including switches, relays, transformers, inductors, motors, wiring harnesses, and printed circuit boards (PCBs). This device is also essential for quality control in production lines, testing contact resistance of connectors, metal riveting resistance in automotive and aerospace applications, and the resistance of fuses and conductive rubber.
Response within
24 hours
Free warranty
12 month
On-line training
Support
| Parameter | KD2678 (Standard) | KD2678A (Simplified) | KD2678B (Simplified) |
|---|---|---|---|
| Measurement Range | 1µΩ - 2MΩ | 1µΩ - 200kΩ | 10µΩ - 20kΩ |
| Display | 4.5-digit LCD | 4.5-digit LCD | 4.5-digit LCD |
| Basic Accuracy | 0.05% - 0.1% | 0.05% - 0.1% | 0.05% - 0.1% |
| Test Speed | Fast: 20/s, Slow: 10/s | Fast: 20/s, Slow: 10/s | Fast: 20/s, Slow: 10/s |
| Test Current | 1µA - 1A (Auto-ranging) | 10µA - 1A (Auto-ranging) | 100µA (Fixed) |
| Temperature Compensation | Yes (PT1000 Sensor) | No | No |

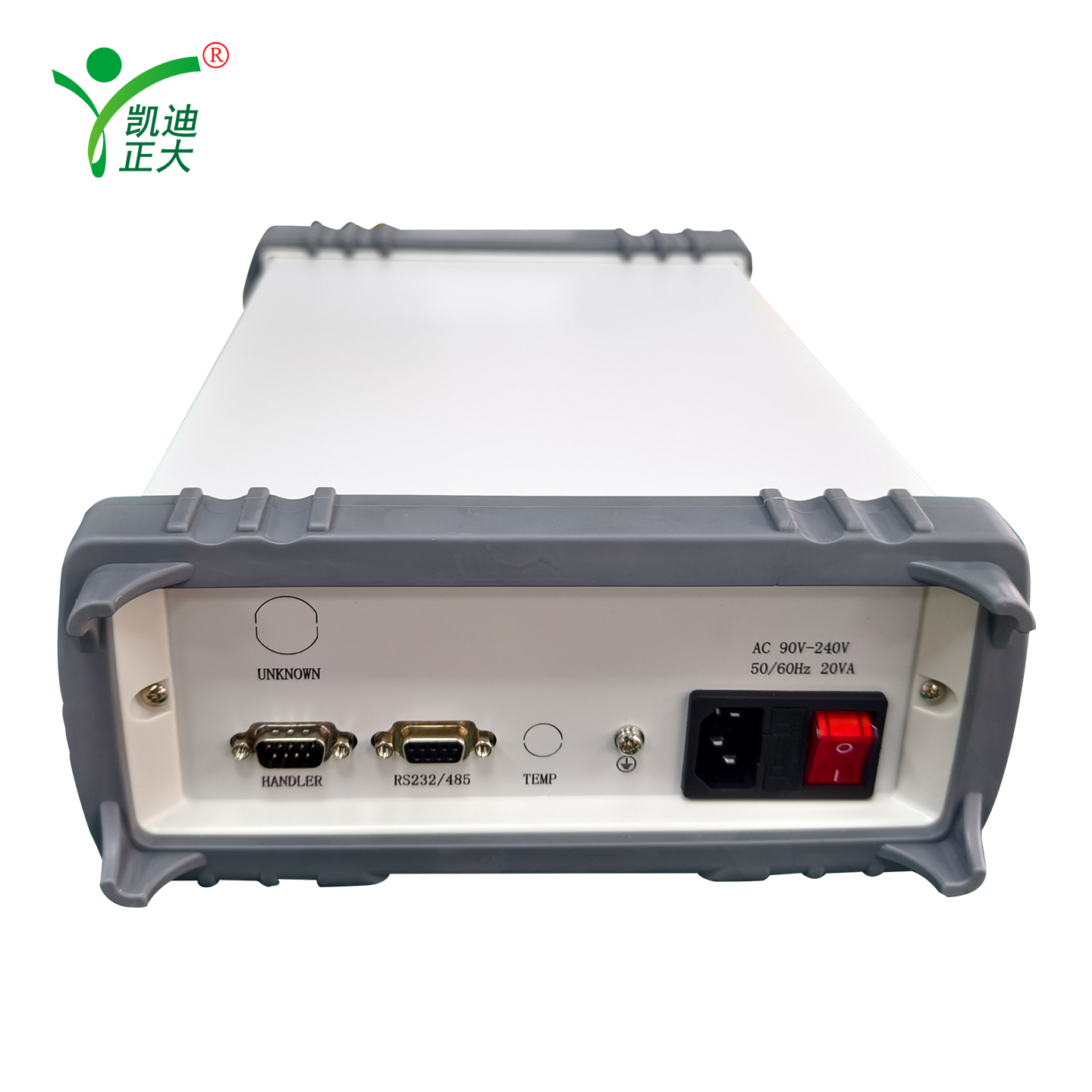

| Interfaces | RS232, Handler, USB | RS232, Handler, USB | RS232, Handler, USB |
| Power Supply | AC 198V-242V, 50/60Hz | AC 198V-242V, 50/60Hz | AC 198V-242V, 50/60Hz |
| Dimensions (W*D*H) | 335mm × 86mm × 216mm | 335mm × 86mm × 216mm | 335mm × 86mm × 216mm |
| Weight | Approx. 4.5kg | Approx. 4.5kg | Approx. 4.5kg |
