KDFCR-100kV Smart AC/DC High Voltage Divider | 100kV Digital Coupling Capacitor
KDFCR-100kV Smart AC/DC High Voltage Divider | 100kV Digital Coupling Capacitor

KDFCR-100kV Smart AC/DC High Voltage Divider | 100kV Digital Coupling Capacitor

Applications:

The KDFCR-100kV Smart AC/DC High Voltage Divider is a precision measurement instrument designed for high-voltage testing environments. It is widely used in power generation plants, substations, high-voltage equipment manufacturing factories, and electrical laboratories. This device is ideal for measuring Power Frequency AC Voltage, DC Voltage, Impulse High Voltage, and Lightning High Voltage. Its robust design and high accuracy make it a reliable tool for field testing, quality control, and dielectric withstand tests in industrial settings.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

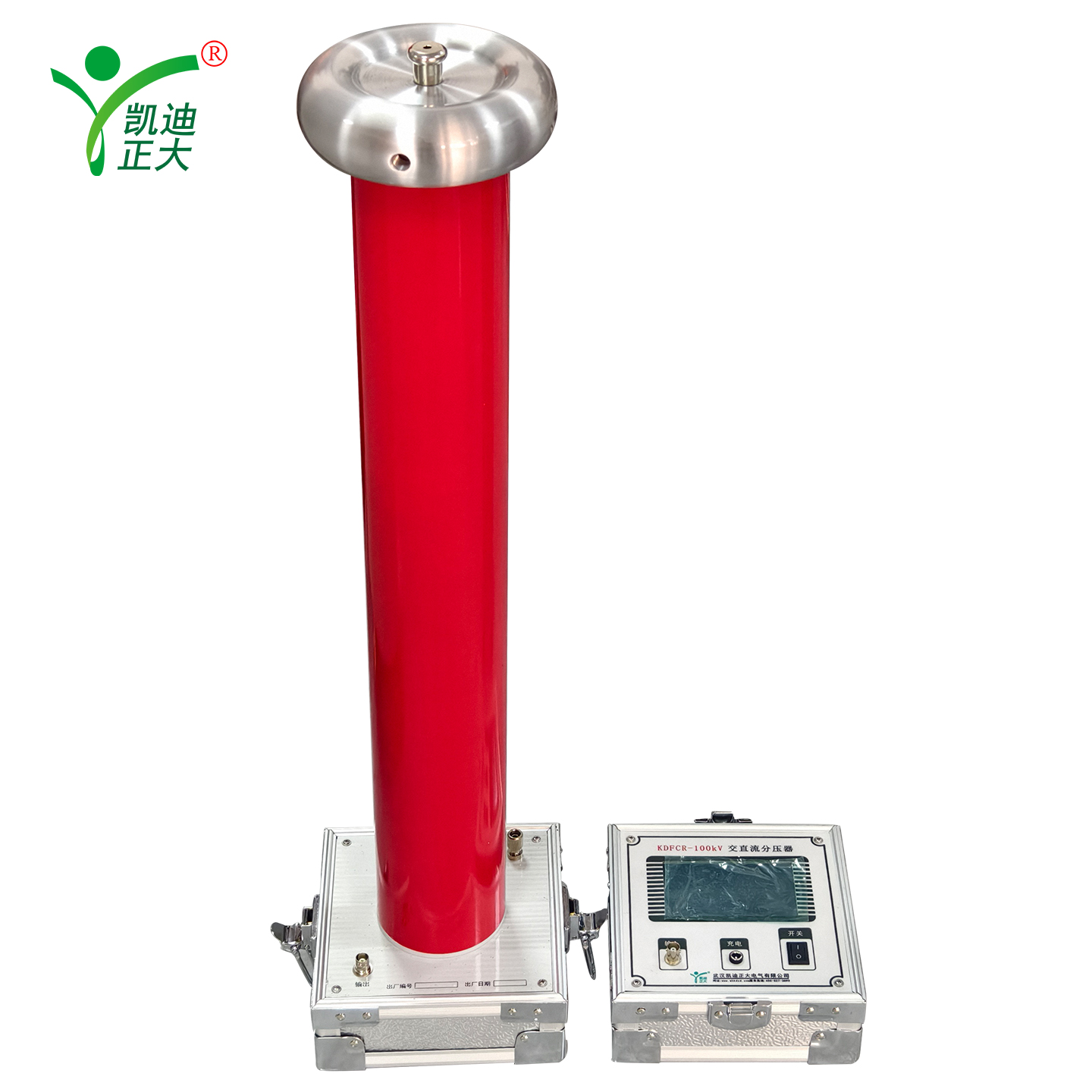

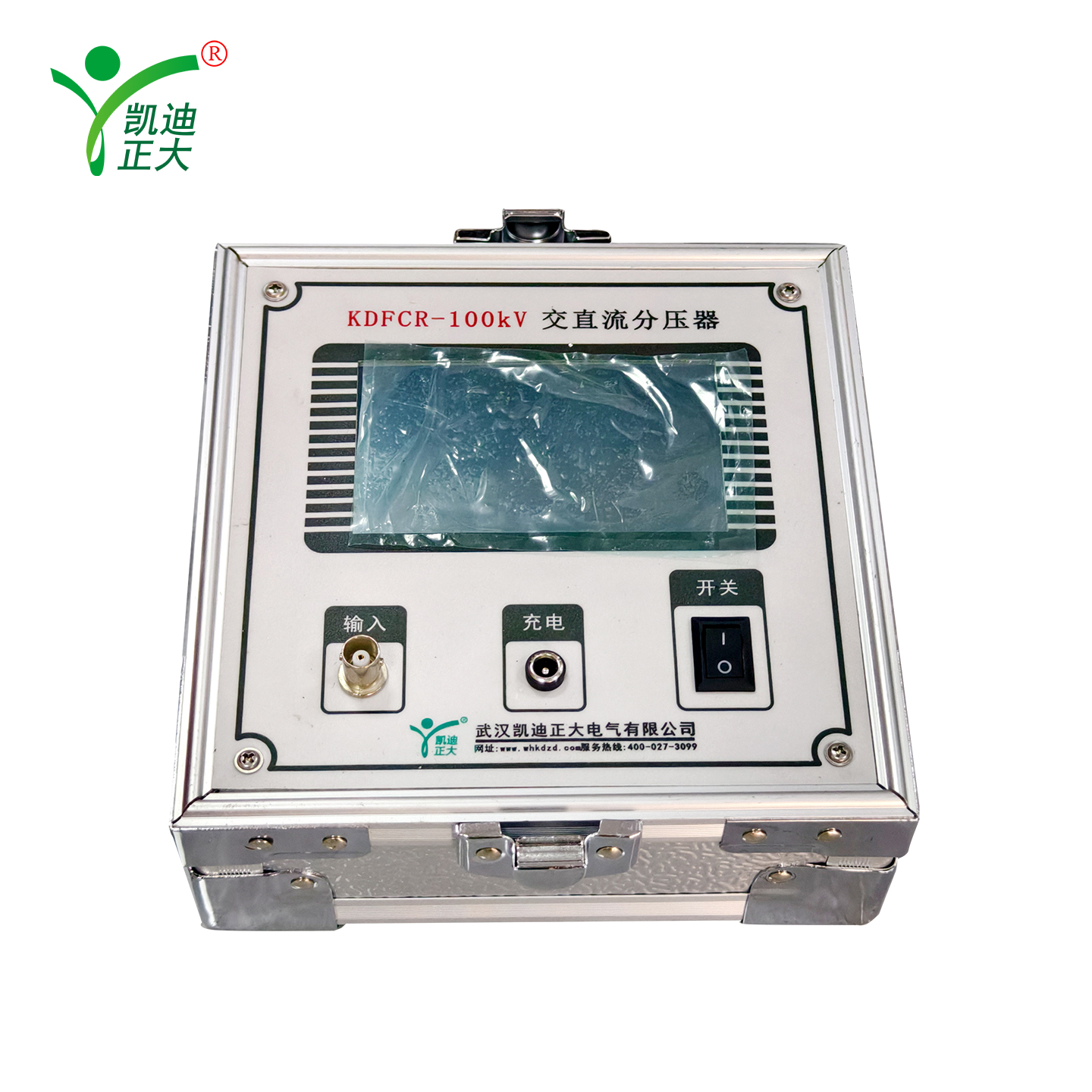

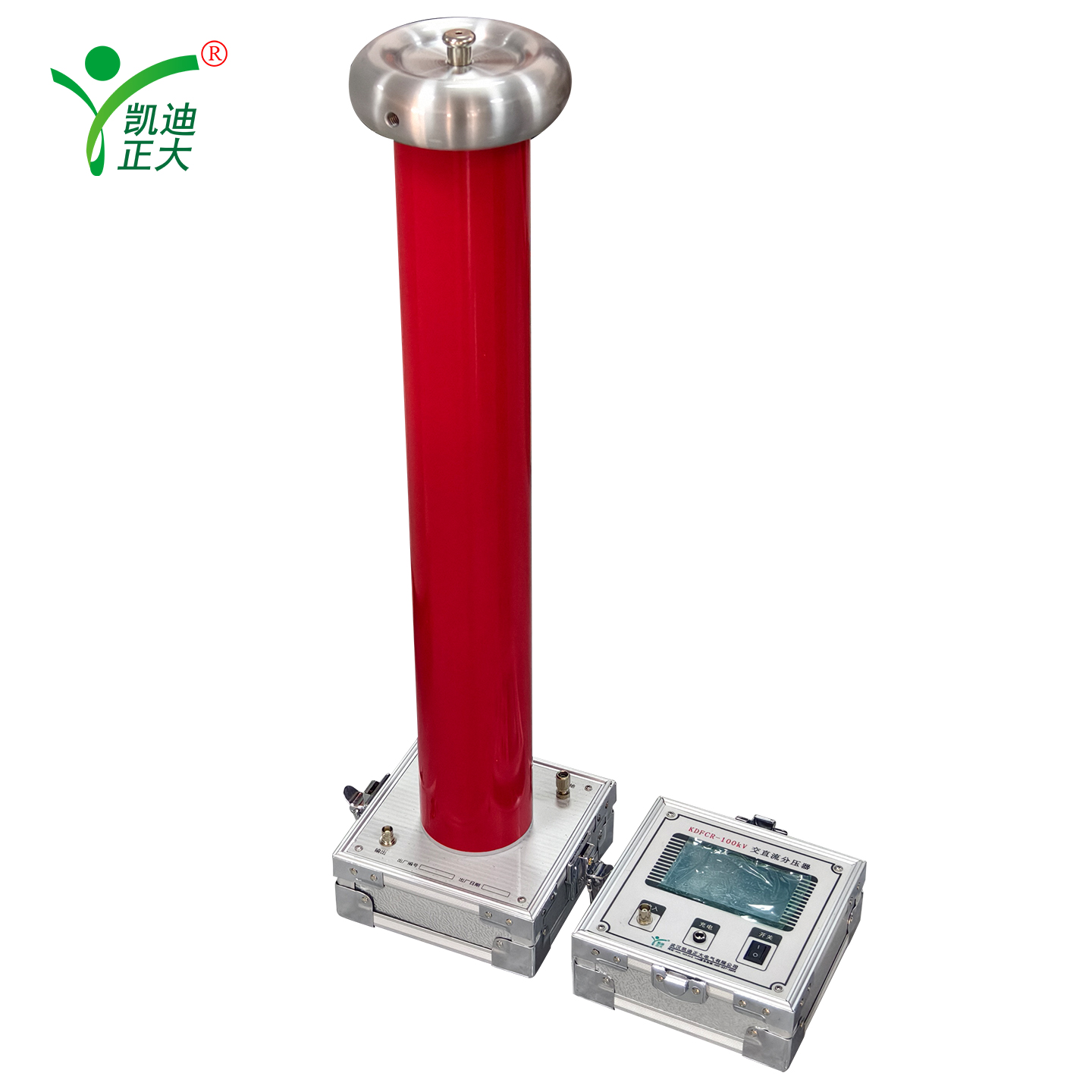

The KDFCR-100kV is a state-of-the-art high-voltage measurement system developed by Wuhan Kaidizhengda Electric Co., Ltd. This instrument adopts an equal-potential shielding structure with a fully sealed insulating cylinder, ensuring stable performance and high linearity. The system is composed of a high-voltage divider section and a low-voltage digital display meter, which are separated during operation to guarantee user safety. Manufactured under ISO9001 quality standards and certified by the Provincial Metrology Institute, this divider is a preferred replacement for traditional high-voltage meters, offering intuitive display, portability, and ease of use.

Features:

  • Dual AC/DC Measurement Capability: Specifically designed as an intelligent AC/DC dual-use divider, it accurately measures both alternating current (AC) and direct current (DC) high voltages, making it versatile for various testing scenarios.
  • Equal-Potential Shielding Structure: Utilizes an advanced resistive-capacitive (RC) equal-potential shielding design to minimize electromagnetic interference and ensure high measurement accuracy and linearity.
  • Portable & Safe Design: Constructed with a portable structure and housed in an aluminum alloy case for durability and easy transportation. The high-voltage section and display meter are physically separated to enhance operational safety.
  • Dual-Range Functionality: Features a selectable measurement range (Low/High). For voltages below 20kV, users can switch to the low range for higher precision readings.
  • Robust Environmental Protection: Rated for indoor use or outdoor use under clear weather conditions with an IP rating suitable for non-condensing environments (Relative Humidity <85%RH).
  • Comprehensive After-Sales Service: Backed by a strict warranty policy—3 months free replacement, 1 year free maintenance, and lifetime paid  (maintenance) after the warranty period.

Parameter:

The technical specifications of the KDFCR-100kV are defined by its high-voltage rating and precision measurement capabilities.
  • Model Number: KDFCR-100
  • Voltage Rating: 100 kV
  • Impedance: 1280 MΩ
  • Capacitance: 250 pF
  • Height: 960 mm
  • Base Dimensions: 195×195 mm
  • Cable Length: 4 Meters
  • Weight: 9.5 kg
  • Accuracy Class:
    • Standard Type: AC 1.5% / DC 1.0%
    • G Type: AC 1.0% / DC 0.5%
    • H Type: AC 0.5% / DC 0.5%
  • Divider Ratio: 1000:1 (Standard), 10000:1 available for 300kV models (customizable)
  • Frequency Range: Power Frequency (50/60 Hz)
  • Operating Temperature: 0°C to 45°C
  • Relative Humidity: <85% RH (Non-condensing)
  • Altitude: <1500 meters (Customizable for high-altitude regions)
  • Display Type: Digital LED/LCD (as per low-voltage meter)
