The KDJB-SA60 is designed for the rapid analysis, testing, and commissioning of optical digital network communication systems in smart substations based on the IEC 61850 standard. It serves as an essential tool for on-site periodic inspections, troubleshooting, and secondary equipment maintenance. Key applications include:
Protection Relay Commissioning: Comprehensive testing modules for AC test, state sequence, differential protection, distance and zero-sequence protection, and whole-group testing.
Network Protocol Analysis: Acting as a flexible simulator that can be arbitrarily configured as an IEC 61850 9-2 SMV sender/receiver or a GOOSE sender/receiver.
Substation Signal Verification: Conducting phase verification , polarity testing for instrument transformers, and time synchronization detection.
Network Stress & Security Audits: Simulating abnormal traffic and packets to test the resilience of substation IEDs (Intelligent Electronic Devices).
Response within
24 hours
Free warranty
12 month
On-line training
Support

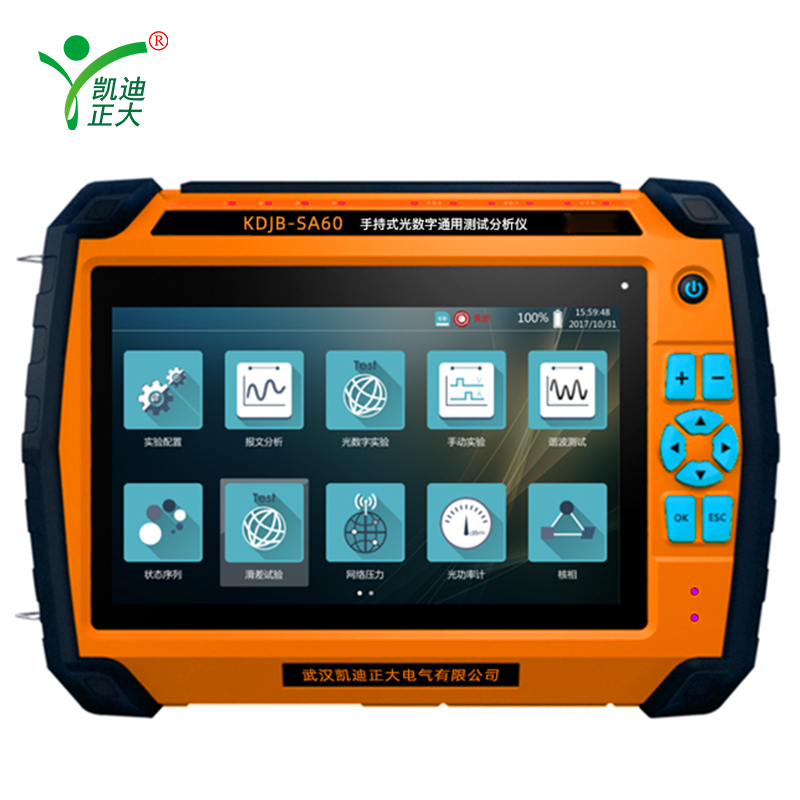

The KDJB-SA60 is a highly integrated, handheld instrument that seamlessly combines an optical digital network signal analyzer with an optical digital protection relay tester into a single device.
Built upon a high-performance SoC hardware platform and running a stable, secure embedded Linux operating system, it features a highly responsive capacitive touchscreen. This analyzer is uniquely tailored to handle the complex data environments of modern smart substations. It allows field engineers to directly import Substation Configuration Description (SCD) files via a USB drive—fully supporting massive SCD configurations from 500kV to 750kV substations—and translates abstract network data streams into intuitive, graphical visualizer interfaces. Equipped with a high-capacity lithium battery, it ensures long-lasting, untethered operation during intensive field testing.
Versatile SMV & GOOSE Mapping: Flexibly configures as an IEC 61850 9-2 SMV or GOOSE transmitting and receiving node.
Robust SCD File Management: Supports direct importing of large-scale SCD files (up to 750kV) and features a built-in SCD comparison tool to visually pinpoint configuration discrepancies between two files.
Graphical Virtual Terminals: Provides intuitive graphical displays for virtual terminals, mapping out complex, abstract digital data flows clearly.
In-Line Serial Monitoring (Sniffer Mode): Allows serial connection listening to parse and analyze network data packets in real time without interrupting ongoing live substation data transmissions.
Multi-Protocol Legacy & Standard Support: Supports FT3, FT3 extended, and DL/T 282 packet outputs with customizable UART (2M to 10M) and Manchester (5M to 20M) encoding.
Anomaly & Stress Simulation: Features network stress testing and packet anomaly injection to rigorously evaluate IED stability under worst-case network conditions.
Integrated Optical Power Meter: Built-in capability to measure physical signal strength across optical network and serial ports.
Time Synchronization & Master Clock Output: Parses incoming timing signals to calculate precise time deviations; also functions as a clock source, outputting optical IRIG-B(DC) and optical PPS signals.
High Efficiency & Autonomy: Features intelligent test template editing to save custom profiles for repetitive testing. Includes an internal lithium battery providing over 6 hours of continuous operation.
| Interface Type | Functionality | Physical Port & Specs |
| IEC 61850 Interface |
SMV (IEC 61850 9-2) / GOOSE Tx & Rx |
3 pairs of LC ports (1 pair 100/1000M adaptive, 2 pairs 100M); Wavelength: 1310nm |
| FT3 Interface |
GB/T 20840.8, DL/T 282, Q/GDW441 Tx & Rx |
1 pair of ST ports (1 Tx, 1 Rx) |
| Time Sync Interface |
IRIG-B / PPS Optical Signals (Time Input & Output) |
2 optical ports (1 for time sync tracking, 1 for time distribution output) |
| Wired Network |
Standard LAN Connection |
1 $\times$ 100M RJ45 Ethernet port |
| Data Interface |
Screenshot & Packet Copying |
1 $\times$ USB port |
Phase Angle Range: 0° to 360° | Accuracy: $\pm$0.1° | Resolution: 0.1°
Frequency Range: 0Hz to 1000Hz
Accuracy (0Hz ~ 65Hz): $<\pm$0.001Hz
Accuracy (65Hz ~ 450Hz): $<\pm$0.01Hz
Accuracy (450Hz ~ 1000Hz): $<\pm$0.02Hz
Resolution: 0.001Hz
Time Duration Range: 10ms to 9999.999s | Resolution: 1ms
Binary Inputs: 1 pair (supports dry contacts or potential contacts from 0V to 250V)
Binary Outputs: 1 pair (Interrupt Capacity: DC 250V / 0.5A)
Response Time: $<100\mu\text{s}$
Main Power Supply: AC 220V (Permissible deviation: -20% to +15%), 47Hz to 65Hz
Charging Input: 5V, 4A
Display: 10.1-inch or 7-inch high-resolution capacitive touch screen (Note: Hardware platform variations utilize 1280800 capacitive display )*
Environmental Tolerances: Operating Temperature: -10°C to 50°C | Humidity: $\le$95% (non-condensing)
Form Factor: Dimensions: 239mm $\times$ 41mm $\times$ 170mm (L $\times$ W $\times$ H) | Weight: 2.5kg
