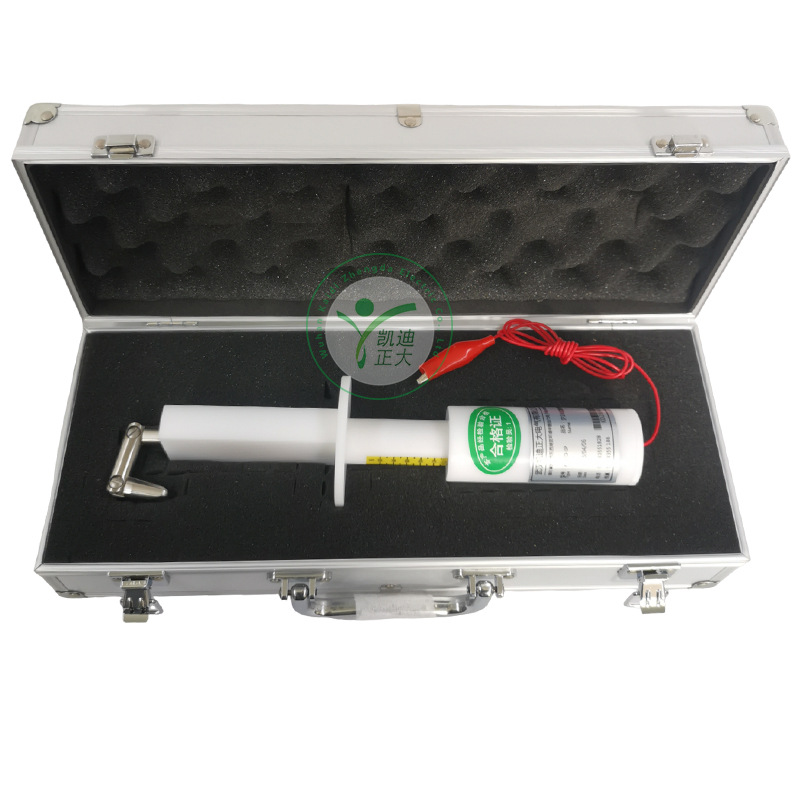

IP2X Push-Force Test Finger – Articulated Safety Probe with 10 N Force for IP2X & Anti-Electric Shoc
IP2X Push-Force Test Finger – Articulated Safety Probe with 10 N Force for IP2X & Anti-Electric Shoc

IP2X Push-Force Test Finger – Articulated Safety Probe with 10 N Force for IP2X & Anti-Electric Shoc

Applications:

  • Verification of IP2X ingress protection rating (protection against ≥12.5 mm solid objects)
  • Anti-electric shock testing per GB 4706 (household appliances), GB 2099 (plugs & sockets), GB 4943 (IT equipment), and IEC 60335/IEC 60884
  • Use in safety compliance labs, factory QA/QC, and third-party certification bodies (e.g., for CCC, CE, UL)
  • Simulates access by a human finger to assess enclosure safety design

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

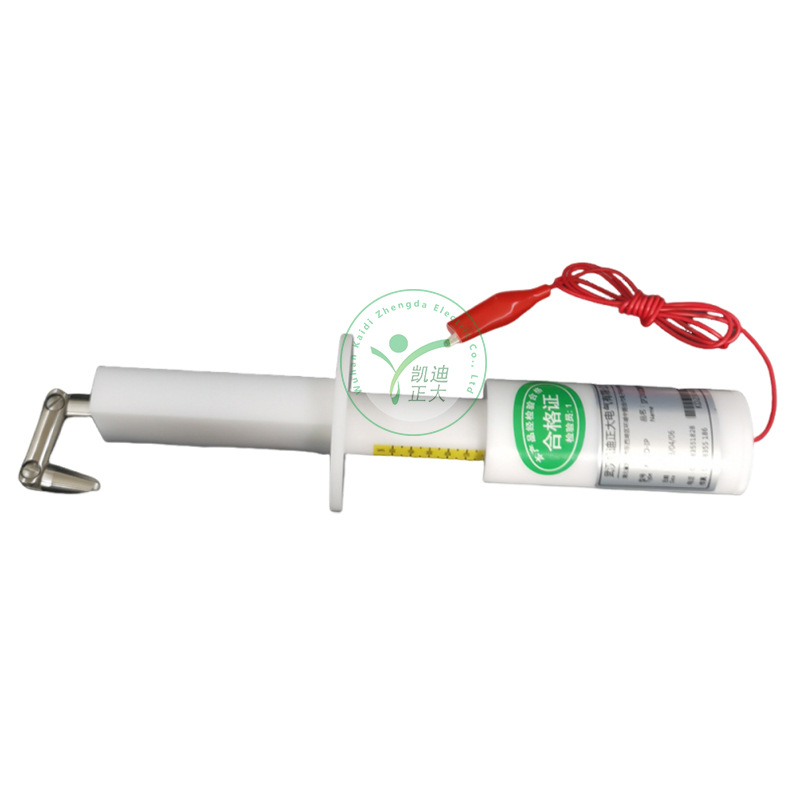

Based on the articulated “jointed finger” design specified in IEC 61032 Figure 2, this probe features a 12 mm diameter curved tip, a 50 mm stop plate, and precise dimensional tolerances. When fitted with the optional 10 N push-force mechanism, it applies standardized mechanical force during testing—ensuring consistent evaluation of whether live parts are adequately shielded from finger contact.

Features:

  • Articulated jointed design mimics real human finger movement
  • Calibrated push force option: 10 N ±1 N (spring-loaded or force gauge integrated)
  • Stop plate (50 mm diameter) prevents over-insertion beyond standard limits
  • Full compliance with:
    • IEC 61032:1997 Figure 2 (Test Probe B)
    • GB/T 4208–2017 (IP2X)
    • GB/T 16842
    • GB 4706.1–2005 Clause 8.1.1, GB 2099, GB 4943, IEC 60335, IEC 60884
  • Durable construction for repeated laboratory and production-line use

Parameter:

Parameter Specification
Finger Tip Diameter 12 mm
Finger Length (Curved Section) 80 mm
Stop Plate Diameter 50 mm
Stop Plate Length 100 mm
Reference Standard IEC 61032:1997 Figure 2 (Test Probe B)
GB/T 4208–2017 (IP2X)
GB 4706.1–2005 Clause 8.1.1
Optional Push Force 10 N ±1 N (calibrated)
Applicable IP Rating IP2X (first characteristic digit = 2)
