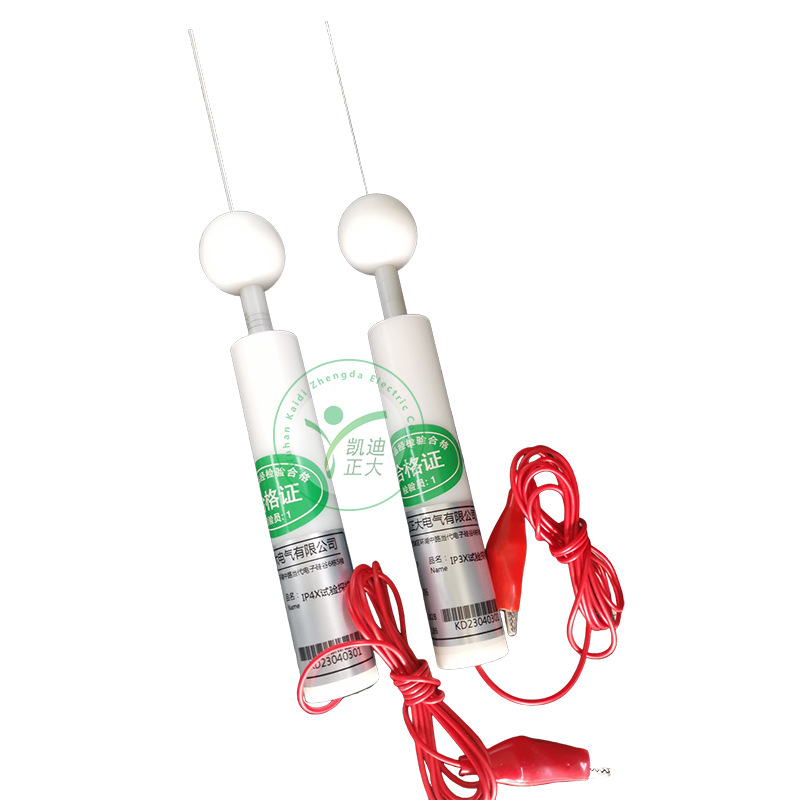

| Parameter | IP3X Probe (Test Probe C) | IP4X Probe (Test Probe D) |
|---|---|---|
| Probe Length | 100 mm | 100 mm |
| Probe Diameter | 2.5 mm | 1.0 mm |
| Stop Ball Diameter | 35 mm | 35 mm |
| Handle Diameter | 10 mm | 10 mm |
| Handle Length | 100 mm | 100 mm |
| Applicable IP Rating | IP3X (1st digit = 3) | IP4X / IP5X / IP6X (1st digit ≥4) |
| Reference Standard | IEC 61032 Fig. 2 GB/T 4208 Table 6 (Digit 3) |
IEC 61032 Fig. 4 GB/T 4208 Table 6 (Digits 4–6) |
| Optional Force | 3 N ±0.3 N | 1 N ±0.1 N |
