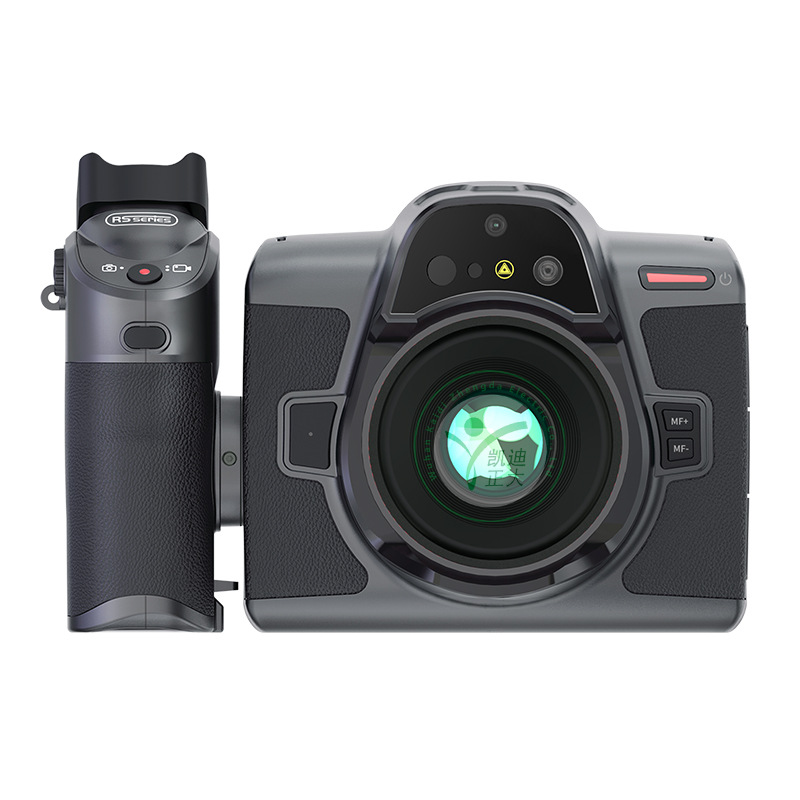

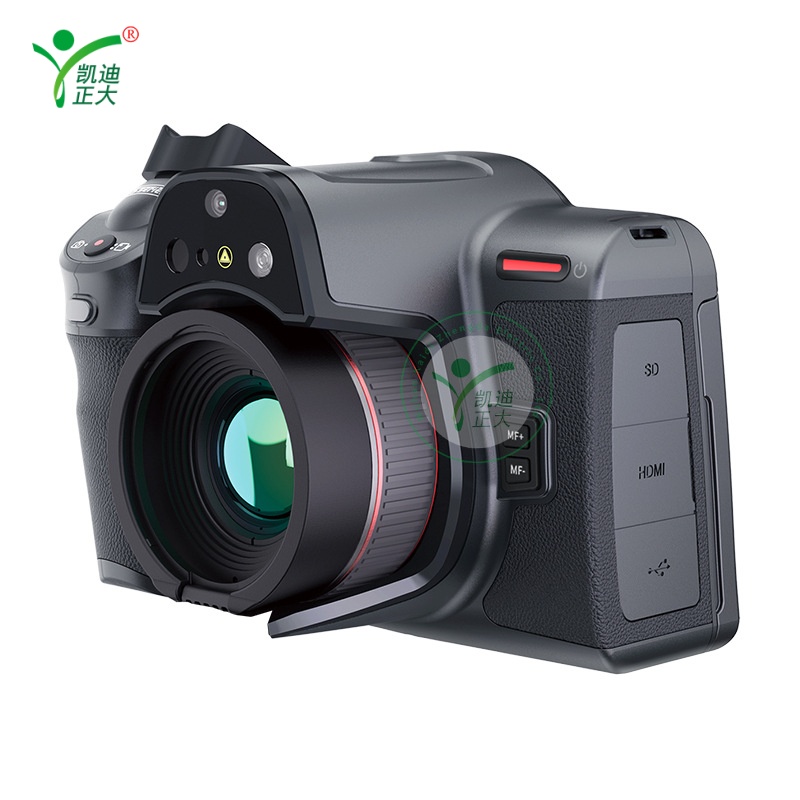

High performance thermal imaging core
Perform well in critical tasks, with at most one machine
High resolution, high frame rate, high precision, wide range
12 μ m high-performance 640 × 512 infrared thermal imaging core, combined with high-definition multiple lens combinations and up to 10x digital zoom, suitable for various complex scenarios.
Native 320000 stunning infrared heatmap+1300W visible light
Able to distinguish a temperature difference of 0.025, coupled with a high frame rate of 25Hz, it can still obtain delicate and smooth image and video in a mobile working environment, without missing any details; Soil 2 temperature measurement accuracy provides a wider temperature measurement range while ensuring the accuracy of temperature data.
USB plug and play analysis, supporting real-time transmission and analysis of full frame temperature information
Support cloud service function, in machine support for scheduled photography, PC software support for real-time and offline analysis, images and videos captured can be uploaded to the cloud, and can be downloaded, opened, and analyzed on multiple clients; One click output report, further assisting professional scientific research and equipment monitoring, temperature measurement and evaluation applications

Complete machine function
Temperature measurement mode: center point/hot/cold spot tracking and temperature display
Custom temperature measurement analysis: supports up to 25 movable points, lines, boxes, circles, and polygons; Supports up to 5 preset modes
Temperature measurement units: Celsius, Fahrenheit, Kelvin
Emissivity setting: 0.01-1.00, step size 0.01
Environmental temperature setting: -10~50 ℃, step size 1 ℃
Electronic zoom: 1 ×, 2 ×, 4 ×, 8 ×, 10 ×
Image modes: infrared, dual light fusion, visible light, picture in picture, detail enhancement
Color palette: 19 types
Temperature alarm: Yes
Alarm method: Image alarm
Temperature and width stretching: manual/automatic temperature range
Laser pointer: available
Visible light camera: 13 million pixels
Radiation infrared video recording: supports compressed full radiation video recording (. irv), with a maximum support for 25Hz recording
Non radiative infrared or visible light video recording: standard MP4 video recording
Radiation infrared video stream transmission: Connect to PC software via Type-C/WLAN to transmit real-time radiation infrared video stream
Non radiative infrared video streaming: RTSP H.264
Video transmission: UVC, without temperature data
Voice control: voice assistant, fast command recognition
Language: Simplified Chinese

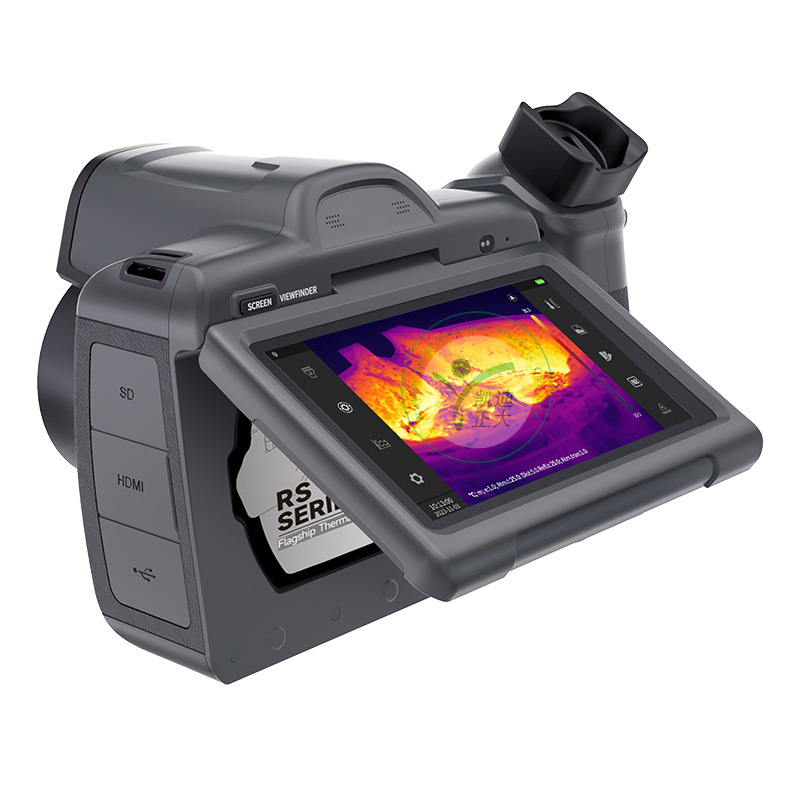

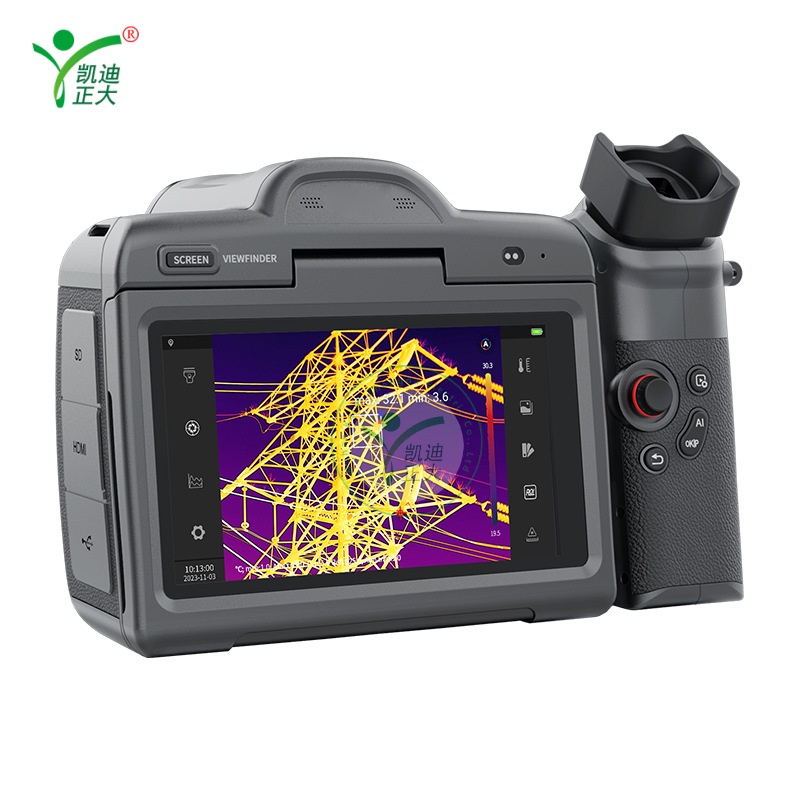

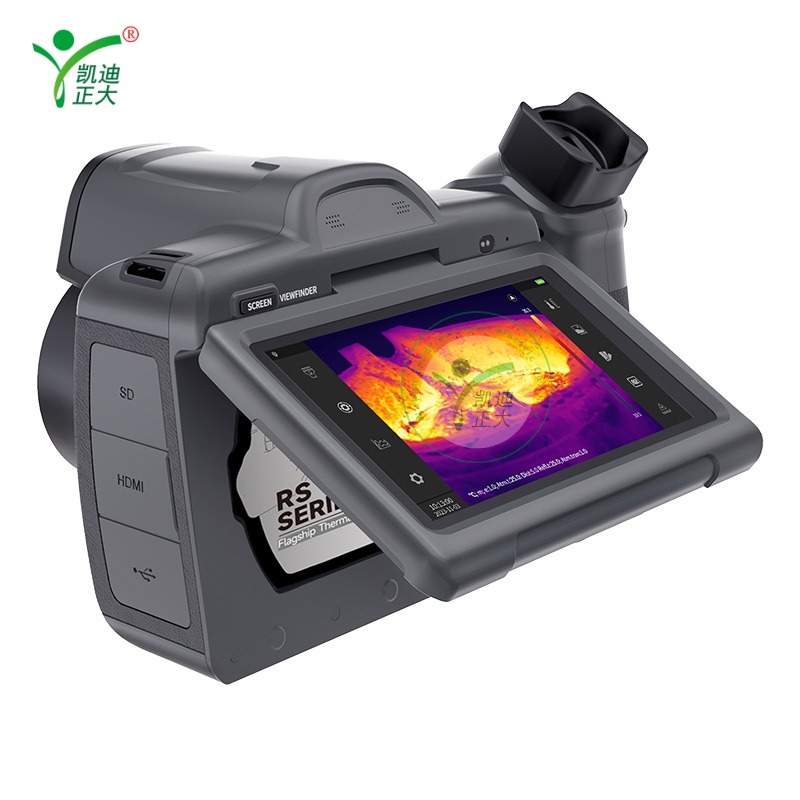

Display screen size: 5.5-inch touch screen (1920x1080)
Image Naming: Automatic/Manual Input Naming, Scan QR Code Naming
Storage medium: Standard 64GB Micro SD, supports SD, SDHC, and SDMC, with a maximum support of 2TB
Battery: 9000mAh lithium battery, can be replaced on site, supports fast charging
Power interface: USB Type-C
Connection methods: USB 3.0, WIFI, Bluetooth Type-C、4G*、5G*
Charging time: 1.5 hours to charge up to 90% of battery capacity; Can be filled in 2 hours
Working hours: Continuous working time ≥ 3 hours (actual usage time depends on the current situation)
Environment and usage conditions
Cloud service: capable of transmitting shooting data to cloud platforms for sharing and secondary analysis across multiple clients; Support automatic time synchronization.
Voice control: voice assistant, fast command recognition

Main parameters of the product
Thermal imaging parameters
Detector type: uncooled vanadium oxide
Detector resolution: 640 × 512
Super resolution: 1280 × 1024 (4x super-resolution)
Infrared response band: 7.5-14 μ m
Pixel size: 12 μ m
Thermal sensitivity: ＜ 25mK
IFOV (spatial resolution): standard lens: 0.68mrad; Ultra long focal length lens: 0.2mrad; Telephoto lens: 0.38mrad; Wide angle lens: 1.26mrad;
Macro lens: one pixel corresponds to 60 μ m; Ultra macro lens: one pixel corresponds to 30 μ m
Frame rate: 25Hz
Focal length: standard lens: 17.7mm; optional lens (ultra long focus lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm; macro lens (0.2 ×): 13mm; ultra macro lens (0.4 ×): 14.8mm)
Field of view: Standard lens: 25 °× 20 °; Optional lenses (telephoto lens: 7 °× 5.6 °; telephoto lens: 14 °× 11.2 °; wide-angle lens: 45 °× 36 °)
Focusing modes: manual focusing, electric fine-tuning, one key center focusing, automatic center focusing, one touch automatic focusing, laser assisted focusing
Temperature measurement range: -20 ℃~+150 ℃, 100 ℃~650 ℃; Optional: 400 ℃~1500 ℃
Temperature measurement accuracy: ± 2 ℃ or ± 2%
