Petroleum product surface interfacial tension tester Oil synthesis Blood liquid ink Ink tension test
Petroleum product surface interfacial tension tester Oil synthesis Blood liquid ink Ink tension test

Petroleum product surface interfacial tension tester Oil synthesis Blood liquid ink Ink tension test

Applications:

Application Environment

The Automatic Tension Meter is designed for precise measurement of surface tension (liquid-gas interface) and interfacial tension (liquid-liquid interface) across a wide range of industrial and laboratory environments. It is ideally suited for use in:

  • Power Industry – Testing insulating oils and transformer fluids to assess aging, contamination, and dielectric performance in accordance with GB/T 6541 and international standards.
  • Petroleum & Petrochemicals – Evaluating crude oil, refined products, surfactants, and emulsions for quality control, process optimization, and interfacial behavior analysis.
  • Chemical Manufacturing – Monitoring surfactant efficiency, formulation stability, and wetting properties of coatings, adhesives, and cleaning agents.
  • Pharmaceuticals – Supporting R&D and quality assurance in drug formulation, where surface tension influences solubility, absorption, and emulsion stability.
  • Food & Beverage Industry – Analyzing surface activity in emulsions, beverages, and food additives to ensure consistency and product performance.
  • Academic & Research Laboratories – Used in physical chemistry, material science, and colloid studies for fundamental research on intermolecular forces and fluid behavior.

The instrument operates reliably in controlled laboratory conditions with ambient temperatures between 10–30°C and humidity below 85% RH, ensuring stable and accurate measurements. Its compact size, integrated printer, and optional RS232 data output make it suitable for both benchtop testing and integration into data management systems.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

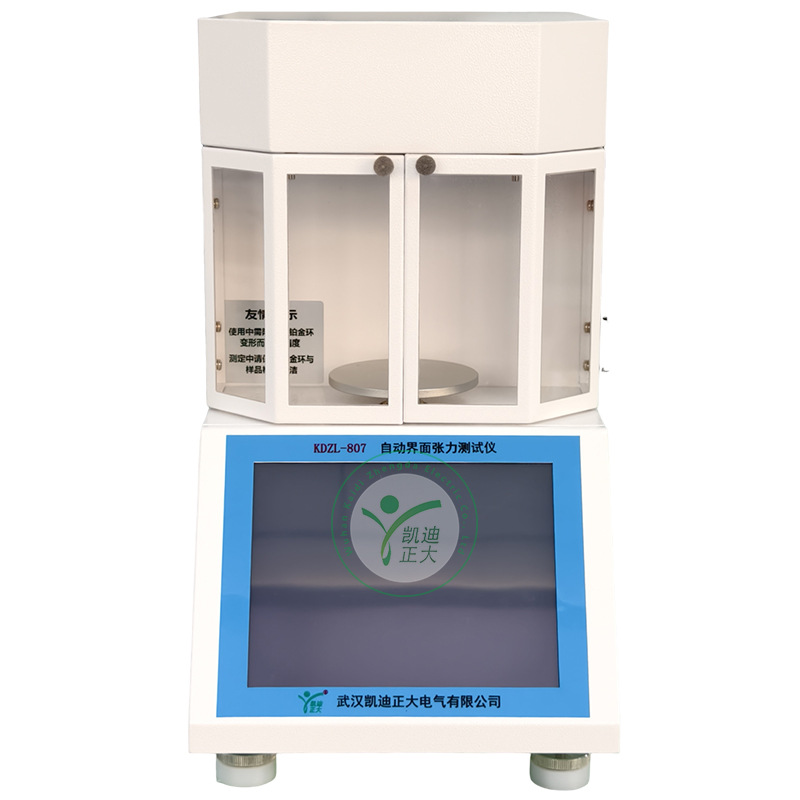

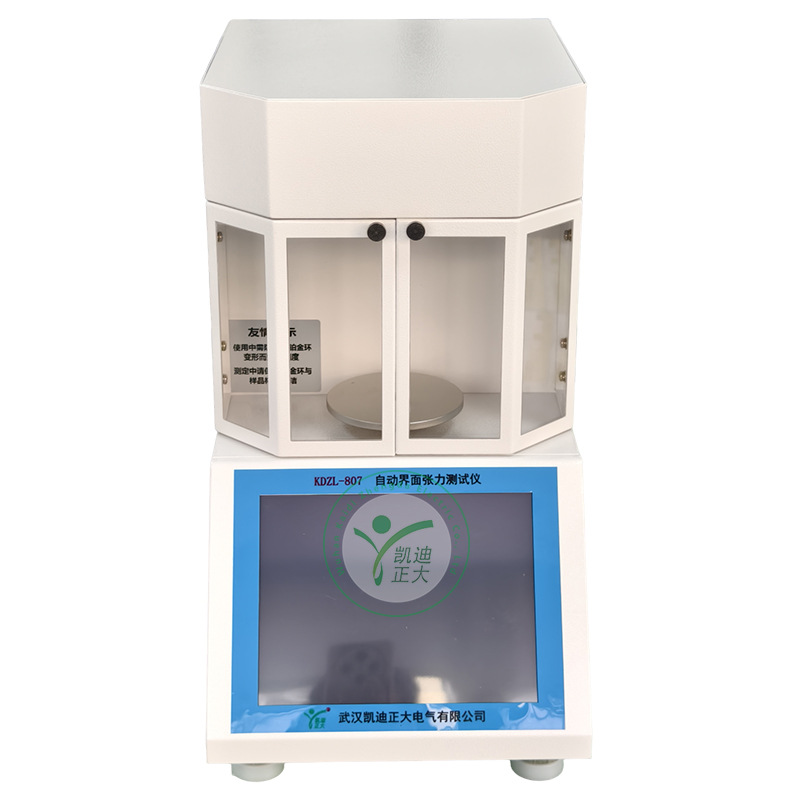

Automatic Tension Meter – High-Precision Surface & Interfacial Tension Testing

This automatic tension meter accurately measures surface tension (liquid-gas) and interfacial tension (liquid-liquid) based on the Ring Method (Platinum Ring Method) in compliance with GB/T 6541. Featuring a high-speed electromagnetic balance sensor, automatic temperature compensation, and a user-friendly LCD interface, it delivers reliable, repeatable results with 0.1 mN/m resolution and high accuracy. Ideal for power, petroleum, chemical, pharmaceutical, and food industries, the instrument combines precision, ease of use, and robust data management with built-in printing and RS232 output.Features

Features:

Features

1. Adopting a fast response electromagnetic force balance sensor improves measurement accuracy and linearity
2. Instrument calibration only requires one point calibration, solving the problem of the previous generation of sensors requiring multi-point calibration. Eliminating the need for zero adjustment potentiometers and full-scale potentiometers
3. Real time display of equivalent tension value and current weight (can be used as an electronic balance for weighing)
4. Integrated temperature detection circuit, automatic temperature compensation for test results
5.240x128 dot matrix LCD display screen, no labeled buttons, with screen protection function
6. Historical records with time stamps, capable of storing 255 records
7. Built in high-speed thermal micro printer, with beautiful and fast printing, and offline printing function
8. Equipped with a standard RC232 interface, it can be connected to a computer and is convenient for processing experimental data (optional)

Parameter:

technical indicators
Measurement range: 0-200mN/m
Accuracy: 0.1% reading ± 0.1 mN/m
Resolution: 0.1mN/m
Sensitivity: 0.1mN/m
Power supply voltage: AC220V+20% 50HZ+10%
Power consumption: 20W
Applicable ambient temperature: 10-30 ℃ (typical value 25 ° C)
Applicable environmental humidity:<85% RH
Dimensions: 200x300x330 (mm)
Weight: 6kg
