KDVLF-60kV 0.1Hz Ultra-Low Frequency High-Voltage Generator

KDVLF-60kV 0.1Hz Ultra-Low Frequency High-Voltage Generator

Applications:

Complies with DL/T849.4-2004, used for withstand voltage tests of power cables, generators and capacitors. Applied in power plants, substations and labs as an alternative to power frequency tests for large-capacity insulation equipment.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

KDVLF-60kV is an intelligent VLF generator with a 7-inch touch screen and ARM7 MCU. It supports automatic testing, multi-frequency output and data management, offering compact, safe and reliable insulation detection.

Features:

Multi-frequency selection (0.1Hz/0.05Hz/0.02Hz) to meet diverse test scenarios
7-inch capacitive touch screen with intuitive operation and Chinese/English display
Full-automatic test process: self-test, boosting, timing, step-down and shutdown
Multiple protections (overvoltage/overcurrent) with fast response (≤10ms)
High/low voltage closed-loop feedback control, no capacity rise effect
Automatic data storage (up to 64 records) and built-in printer for test reports

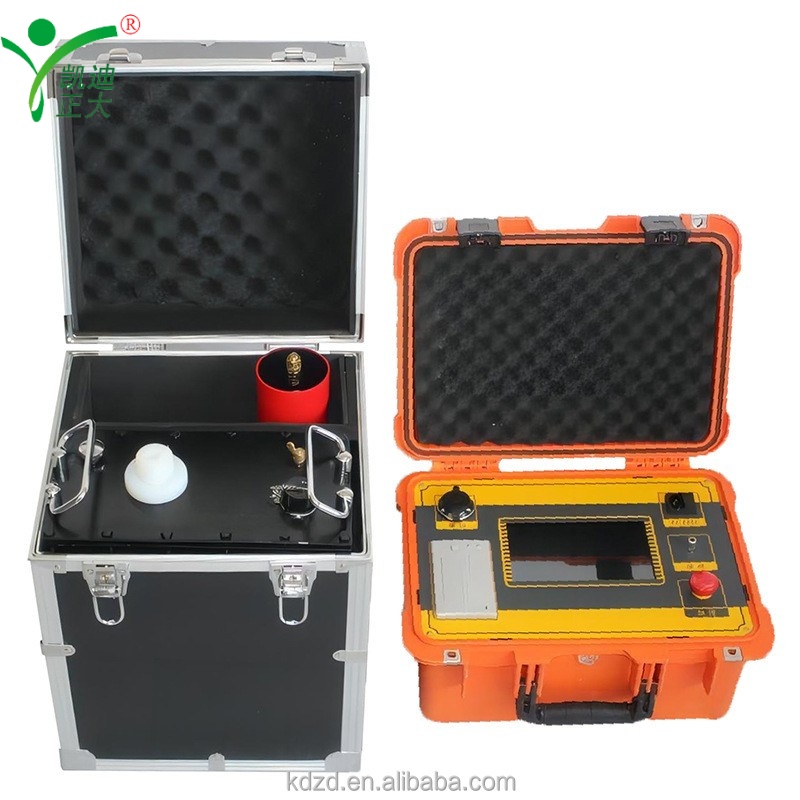

Compact split design (controller + booster) for convenient outdoor operations

Parameter:

Power Supply
- Input voltage: AC220V±10%, 50Hz
- Fuse rating: 10A
Output Performance
- Rated output voltage: 60kV (peak value)
- Output frequency: 0.1Hz, 0.05Hz, 0.02Hz
- Load capacity: 1.1μF (0.1Hz), 2.2μF (0.05Hz), 5.5μF (0.02μF)
Accuracy & Waveform
- Measurement accuracy: ±3%
- Voltage positive/negative peak error: ≤3%
- Waveform: Sine wave; Distortion factor: ≤5%
Test Control
- Test time: 0~99 minutes adjustable
- Protection settings: Adjustable overvoltage/overcurrent limits
- Data storage: Up to 64 test records, automatic saving on shutdown/protection
Physical & Environmental
- Structure: Split type (Controller: 6kg; Booster: 45kg)
- Working temperature: -10℃~+40℃; Relative humidity: ≤85%RH
- Storage temperature: -20℃~+60℃; No corrosive gas or severe vibration
Accessories

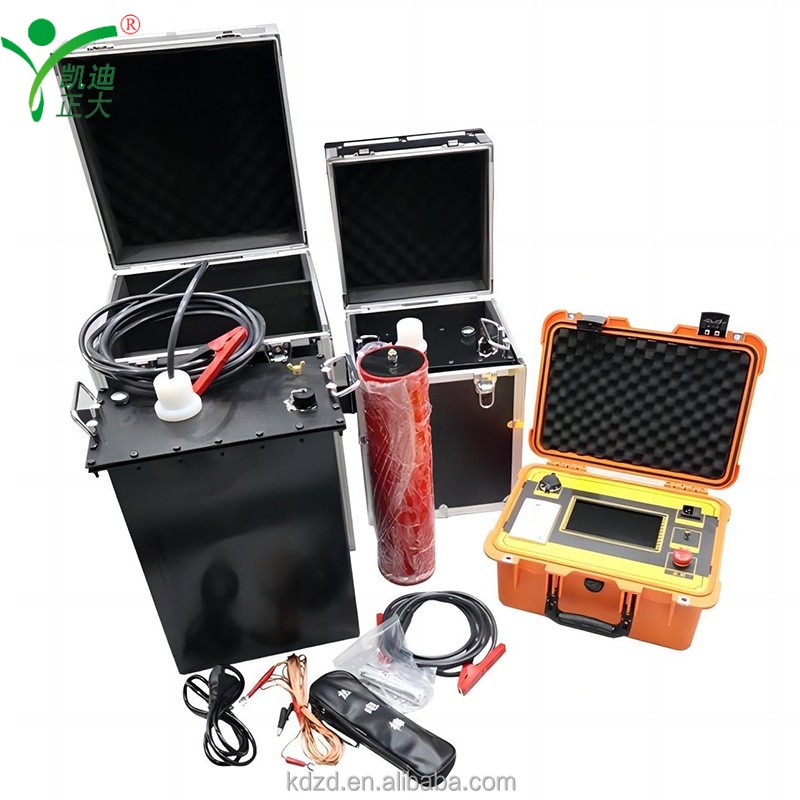

- Standard accessories: Control cable, high-voltage cable, grounding wire, 0.05μF self-test capacitor, discharge rod, power cord, user manual, certificate
