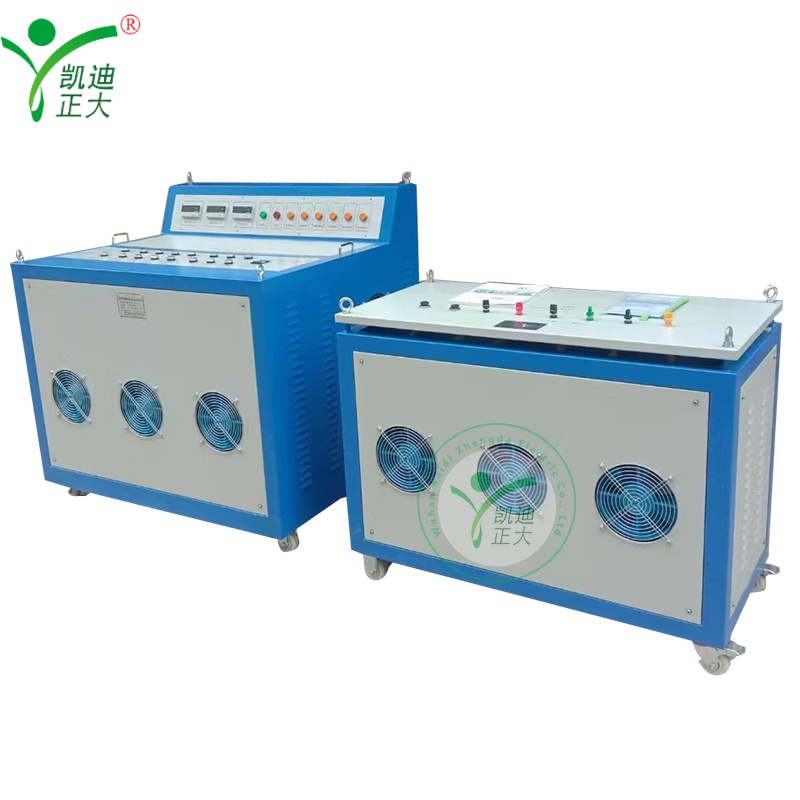

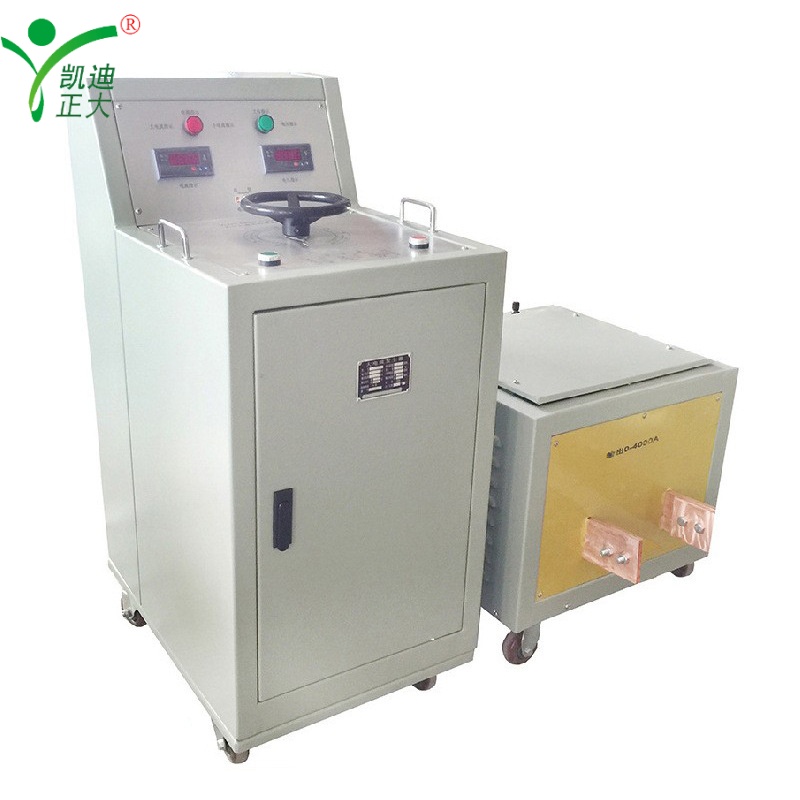

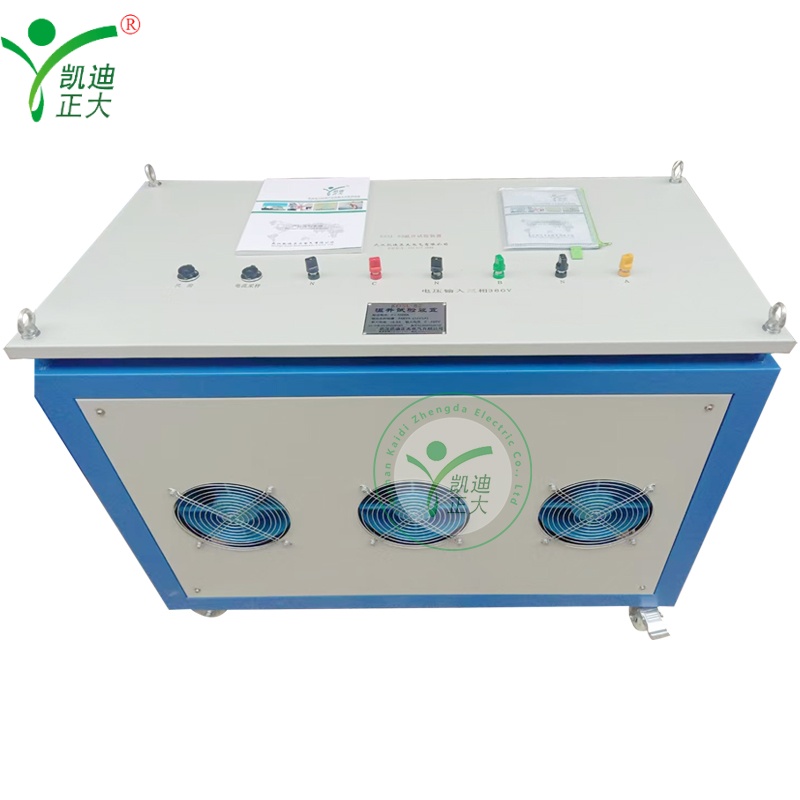

KDSL-82 series split-type Primary Current Injector
KDSL-82 series split-type Primary Current Injector

KDSL-82 series split-type Primary Current Injector

Applications:

Used as a low-voltage high-current power source for thermal/motional stability tests and trip verification of circuit breakers, contactors and relays. Applied in power plants, substations, electrical factories and research institutes for short/intermittent high-current testing.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDSL-82 series is a split-type high-current generator (24kVA) for short-time working. It features stepless current adjustment, compact design and easy operation, providing stable 0~4000A output for electrical equipment performance testing.

Features:

  • Short-time (5min) and intermittent (≤2.5min) working modes to meet different test demands
  • Stepless current adjustment via autotransformer with smooth and stable output
  • Dual-range current selection (large/small) with clear analog ammeter display
  • Integrated/split structure options (4000A: split-type) for flexible on-site use
  • Green/red indicator lights for power/working status, ensuring intuitive operation
  • Reliable grounding and overload protection to safeguard operators and equipment
  • Open-circuit voltage of 6V, compatible with various low-voltage electrical test scenarios

Parameter:

  • Core Output Performance (KDSL82-24/4000)
    • Rated output capacity: 24kVA; Output current: 4000A (AC)
    • Open-circuit voltage: 6V; Power supply: 380V AC, 3-phase
    • Structure: Split-type
  • Working Mode
    • Short-time work: ≤5 minutes at full load
    • Intermittent work: ≤2.5 minutes per cycle, cycle ≥10 minutes
  • Series Model Reference (Partial)
    • KDSL82-3/500: 3kVA, 500A, 220V 1-phase, integrated
    • KDSL82-6/1000: 6kVA, 1000A, 220V 1-phase, integrated
    • KDSL82-12/2000: 12kVA, 2000A, 220/380V, integrated/split
    • KDSL82-60/10000: 60kVA, 10000A, 380V 3-phase, split-type
  • Measurement & Control
    • Current display: Dual-range analog ammeters
    • Control: Start/stop buttons, autotransformer adjustment knob, current range switch
  • Working & Storage Conditions
    • Working temperature: -10～60℃; Relative humidity: ≤90% (no condensation)
    • Storage: Dry, ventilated room without corrosive gas or severe vibration
  • Accessories
    • Standard accessories: High-current test wires (optional), user manual, certificate of conformity/warranty card
