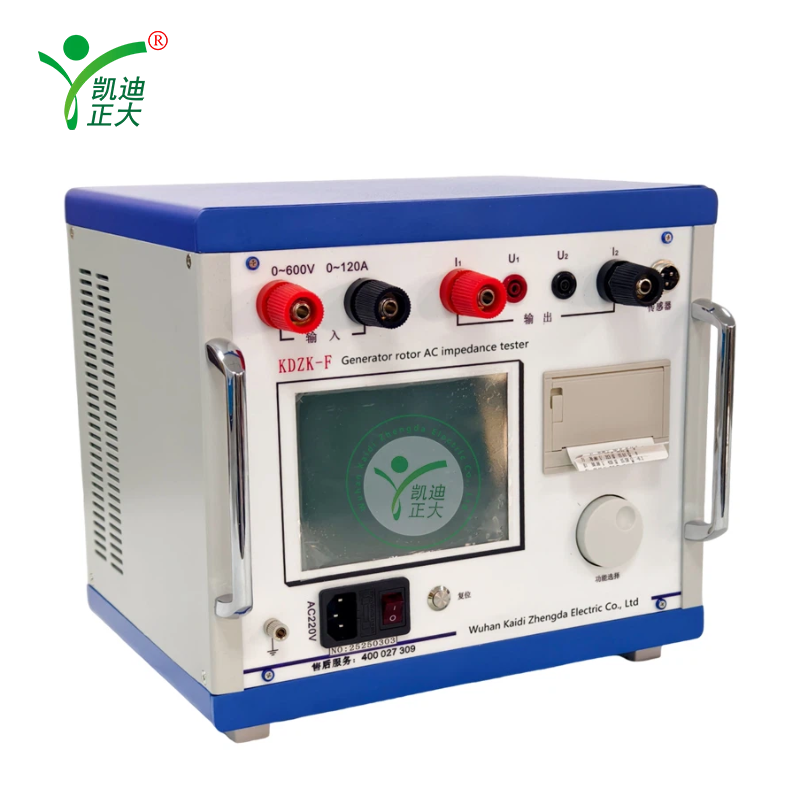

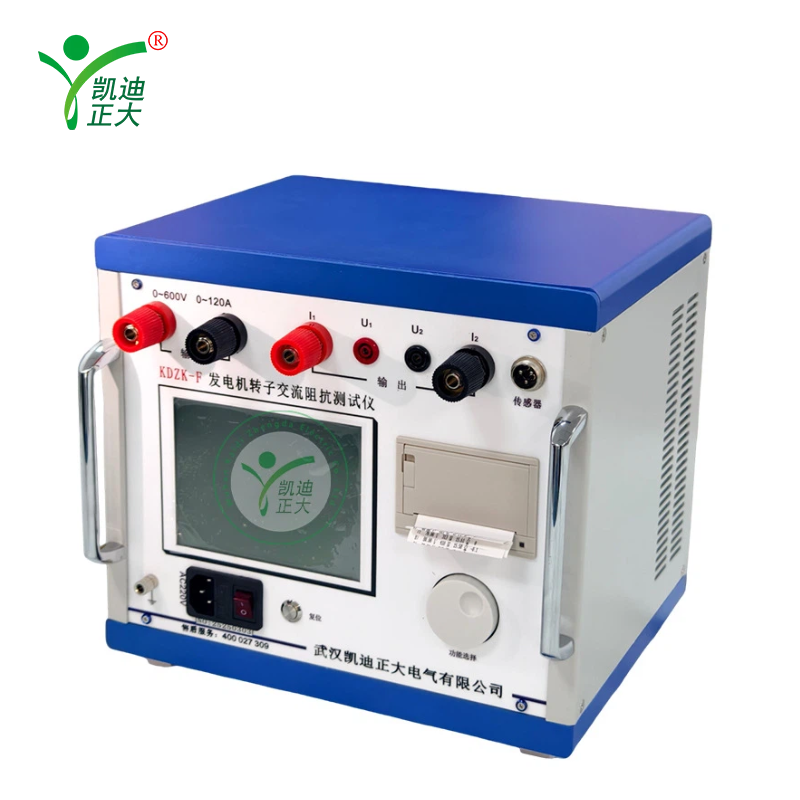

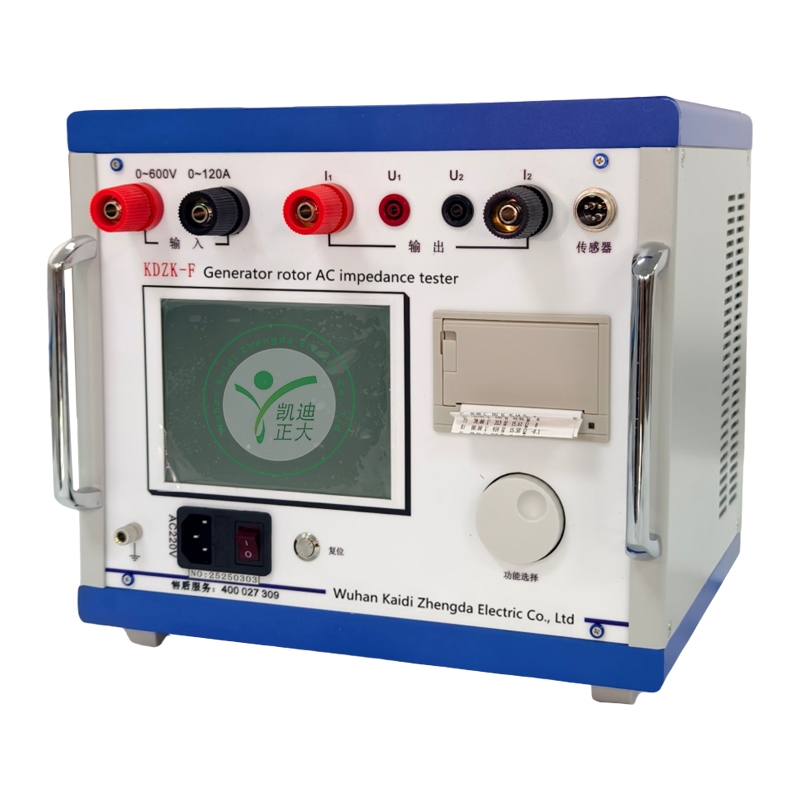

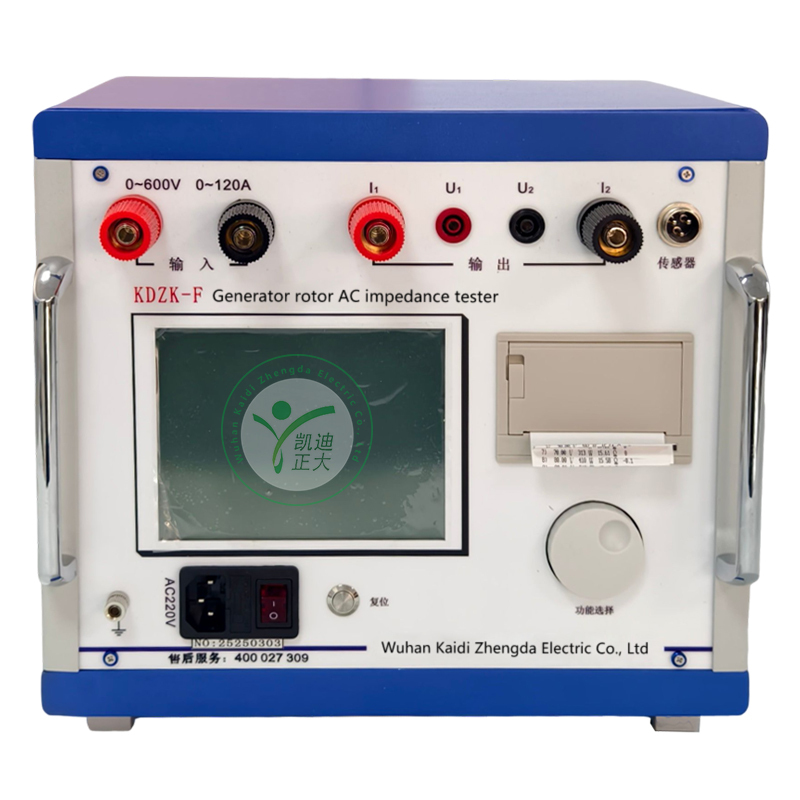

The KDZK-F Generator Rotor AC Impedance Tester is a specialized instrument designed to detect inter-turn short circuits in generator rotor windings. It can automatically or manually (in single or dual direction) measure key parameters of the rotor winding, including voltage, current, impedance, power, and phase angle.

Key Features and Applications:

• Comprehensive Testing: Measures AC impedance and characteristic curves of synchronous generator and asynchronous motor windings under static conditions.
• User-Friendly Operation: Features a rotary knob for easy and convenient control.
• Flexible Measurement Modes: Offers both rapid automatic measurement and flexible manual selection modes.
• Intuitive Interface: Equipped with a large-screen Chinese menu display that shows test data and curves in real time.
• Data Management: Stores test data and is equipped with a built-in mini printer for immediate printing of results and characteristic curves.
• Enhanced Safety: Automatically adjusts protection thresholds based on test parameters to ensure equipment safety.
• Multi-Function Capability: Can also perform open-circuit and short-circuit tests on single-phase transformers, as well as volt-ampere characteristic tests on voltage/current transformers and arc suppression coils.

Performance Specifications:

• AC Impedance: 0–999.9 Ω, Accuracy 0.5 class
• AC Voltage: 0–600 V, Accuracy 0.5 class
• AC Current: 0–120 A, Accuracy 0.5 class
• Active Power: 0–72 kW, Accuracy 1.0 class
• Frequency: 45–75 Hz, Accuracy 0.2 class
• Power Supply: AC 220 V ±10%, 50 Hz
• Dimensions: 415 × 225 × 200 mm
• Weight: 5 kg

The KDZK-F provides a reliable, efficient, and versatile solution for preventive maintenance and fault diagnosis of rotating electrical machinery in power plants and industrial facilities.

Based on the provided information, here are the key features of the KDZK-F Generator Rotor AC Impedance Tester:

• Specialized Function: Dedicated instrument for detecting inter-turn short circuits in generator rotor windings.
• Dual Operation Modes: Supports both fully automatic measurement and manual control (single or dual direction).
• Multi-Parameter Measurement: Capable of measuring voltage, current, impedance, power, and phase angle simultaneously.
• User-Friendly Interface: Features a large-screen Chinese menu display for clear, real-time viewing of data and curves.
• Convenient Control: Equipped with a rotary knob for intuitive and easy operation.
• Flexible Testing Options: Offers users the choice between quick automatic measurements and customizable manual measurements.
• Integrated Data Management: Stores test results internally and includes a built-in mini printer for immediate printing of data and characteristic curves.
• Enhanced Safety: Automatically adjusts protection settings based on test parameters to safeguard both equipment and personnel.
• Multi-Function Capability: Can also be used for testing single-phase transformers (open-circuit and short-circuit), voltage/current transformers, and arc suppression coils (volt-ampere characteristics).
• High Accuracy: Features high-precision measurement across all parameters (0.5 class for impedance, voltage, and current).

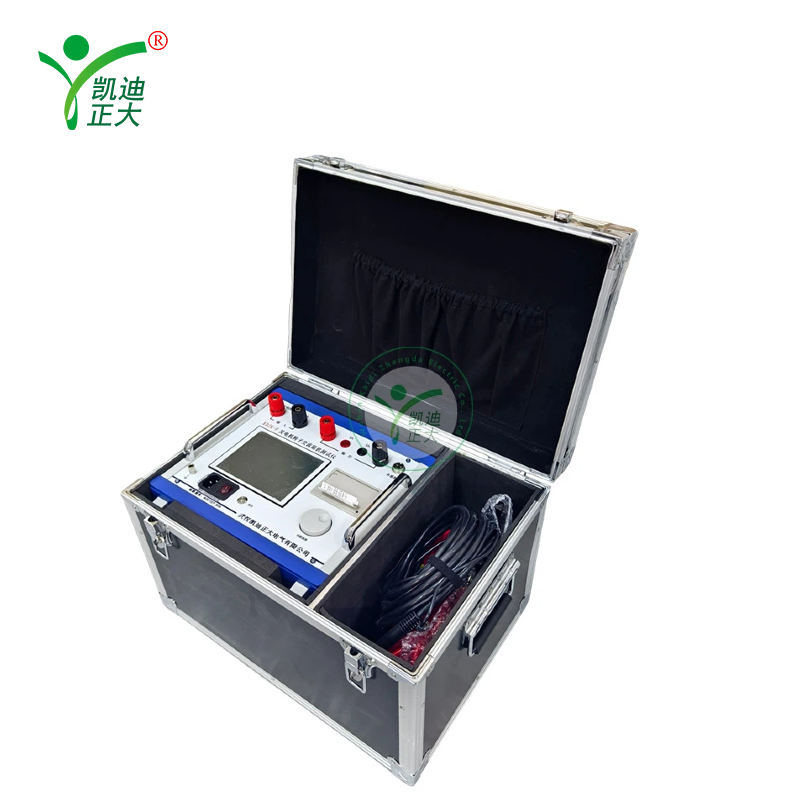

• Compact and Portable: Lightweight (5 kg) and compact design for easy transport and field use.

performance metrics
1. AC impedance: 0-99.9 Ω, level 0.5
2. AC voltage: 0-600V, level 0.5
3. AC current: 0-120A, 0.5 level
4. Active power: 0-72KW, level 1.0
5. Frequency: 45-75Hz, Class 0.2
6. Working power supply: AC 220V ± 10% 50Hz
7. Volume: 415 × 225 × 200mm
8. Weight: 5kg
