KDZD Insulating Suit Testing Device
KDZD Insulating Suit Testing Device

KDZD Insulating Suit Testing Device

Applications:

KDZD insulating suit testing device is designed for power industry on-site testing, applicable to AC withstand voltage tests of insulating protective gear like insulating clothes, pants, shawls, sleeves and blankets, supporting multi-voltage level detection in power system maintenance and live working scenarios.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDZD insulating suit testing device is developed per DL/T976-2017 power industry standard, this device is for AC withstand voltage test of insulating protective articles, supporting 0~50kV multi-voltage detection. It features stainless steel frame and electrodes, with intelligent control and wireless data transmission functions.

Features:

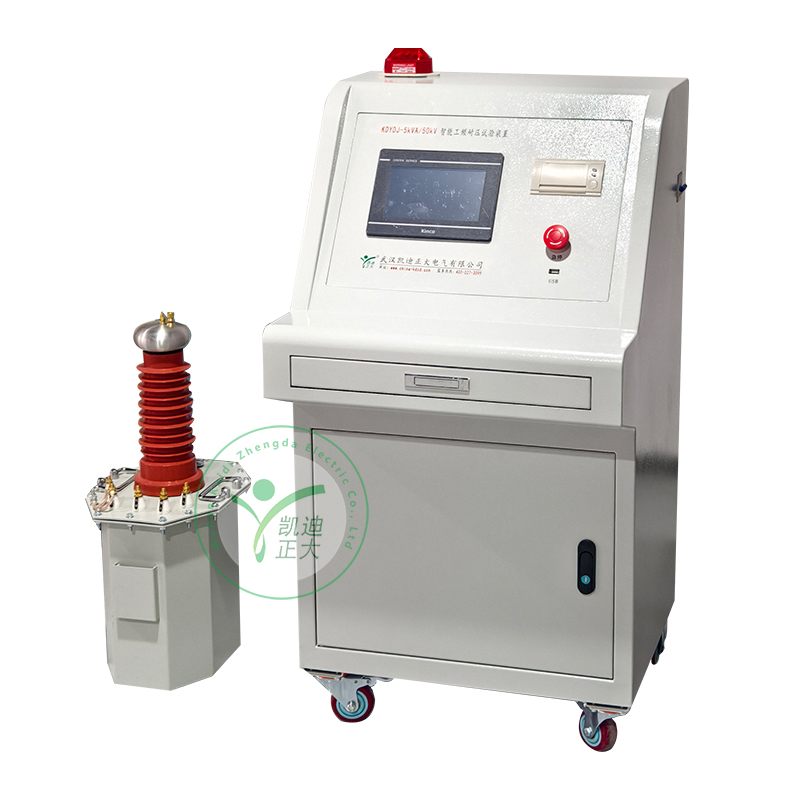

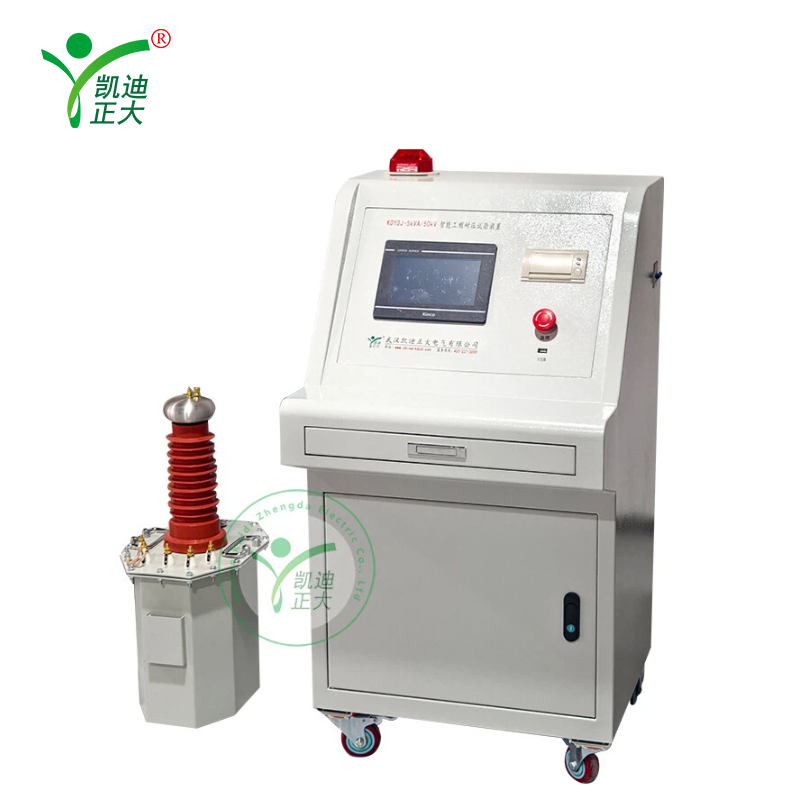

Equipment composition

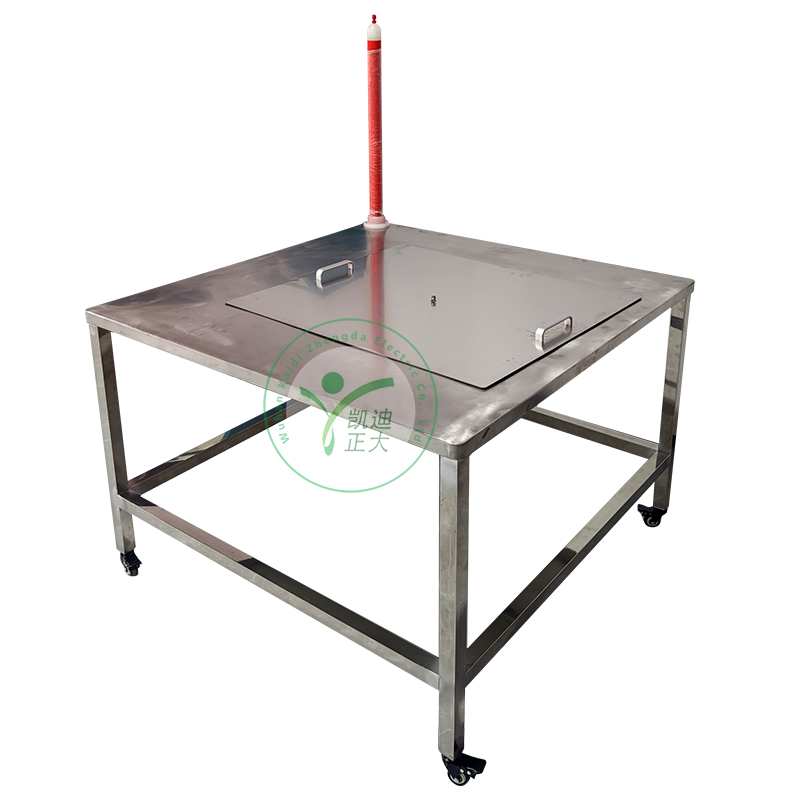

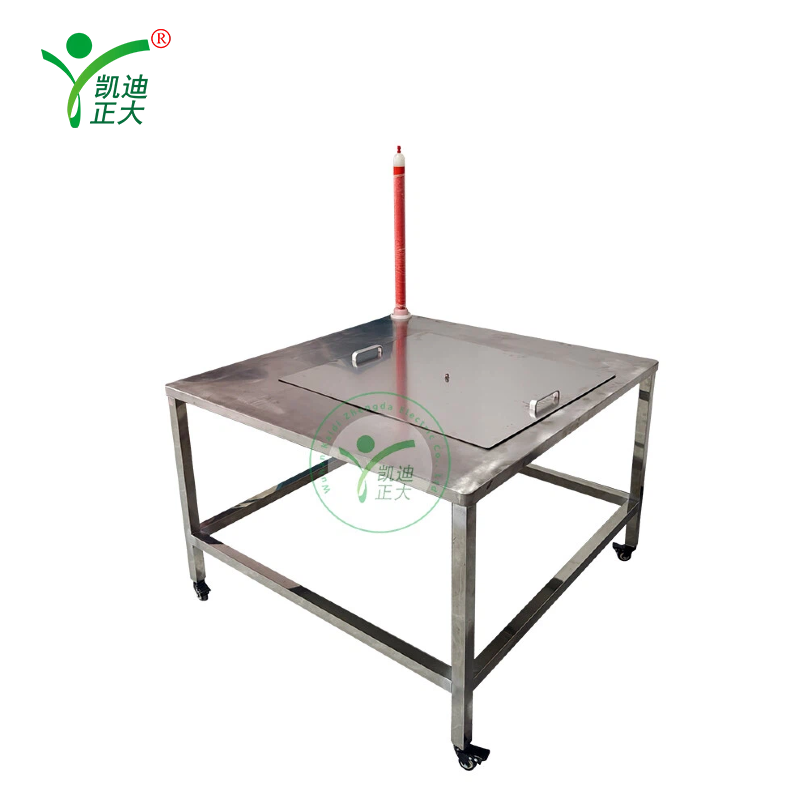

  1. Test platform: It adopts a stainless steel frame and the electrodes are made of stainless steel
  2. Electrode: The electrode is made of stainless steel

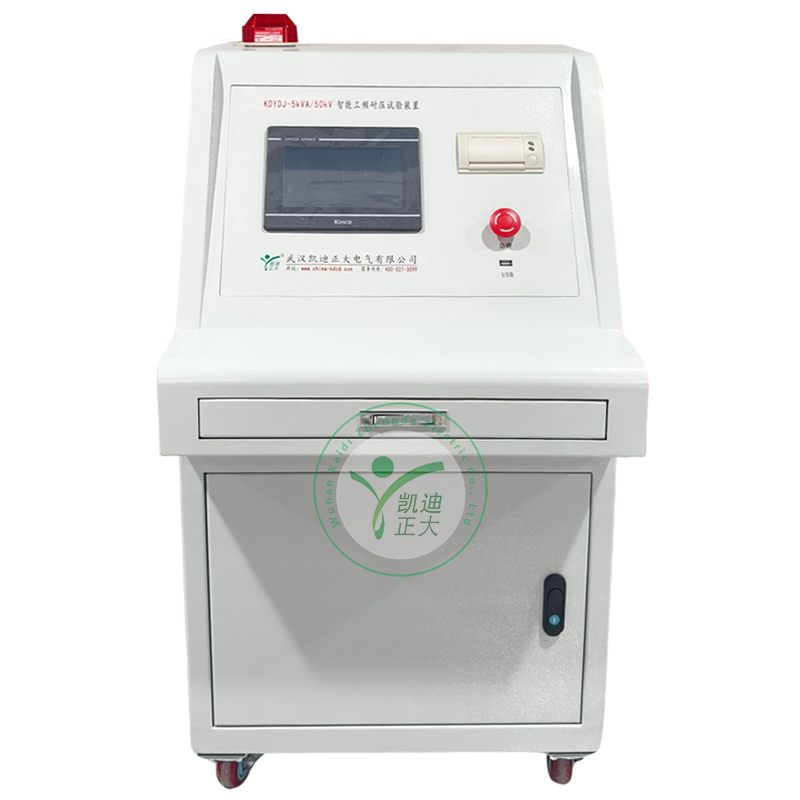

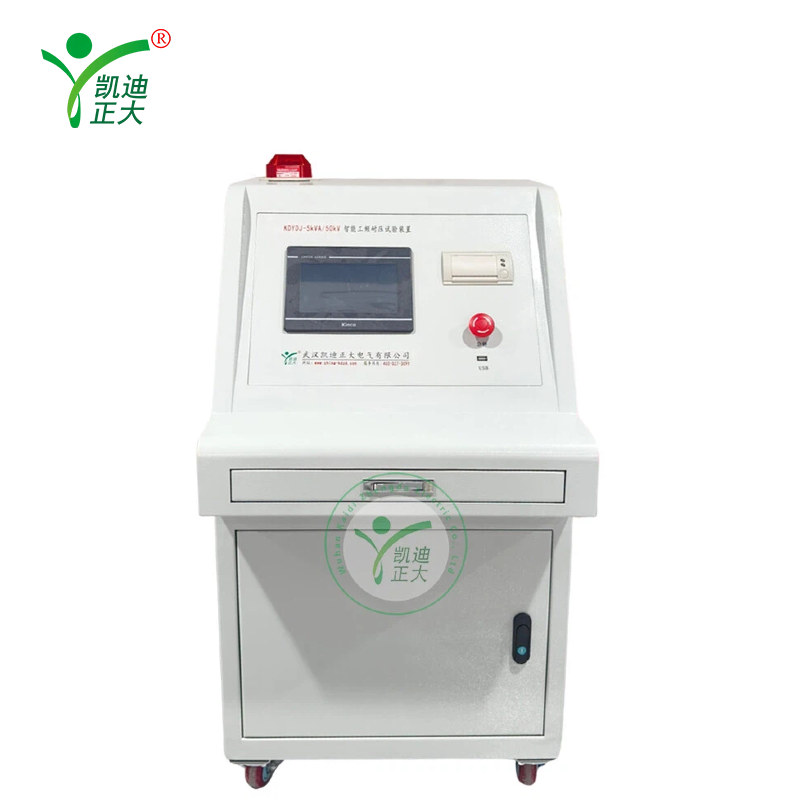

  3. Control unit: Intelligent control box, supporting touch screen operation, parameter setting and wireless data transmission
  4. High-voltage output: The inner electrode is connected by a dedicated high-voltage wire

Parameter:

  1. Power supply voltage: AC 220V
  2. Capacity: 0-5kVA
  3. Output voltage: Console 0- 250V; Transformer: 0-50kV
  4. Voltage accuracy: ± 1%
  5. Current accuracy: ± 1%
  6. Display mode: 7-inch true-color high-definition digital screen
  7. Touch control method: Resistive touch is more accurate
  8. Operation mode: Automatic, manual
  9. Data storage :60 groups
  10. Password: Multi-level permission Settings
  11. The external dimensions of the insulating platform are 1200*1200*700mm
  12. Insulation table test range :800*800mm
  13. The weight of the insulating platform :30kg
Note: Our company customizes products of different specifications and special functions according to the requirements of users.
