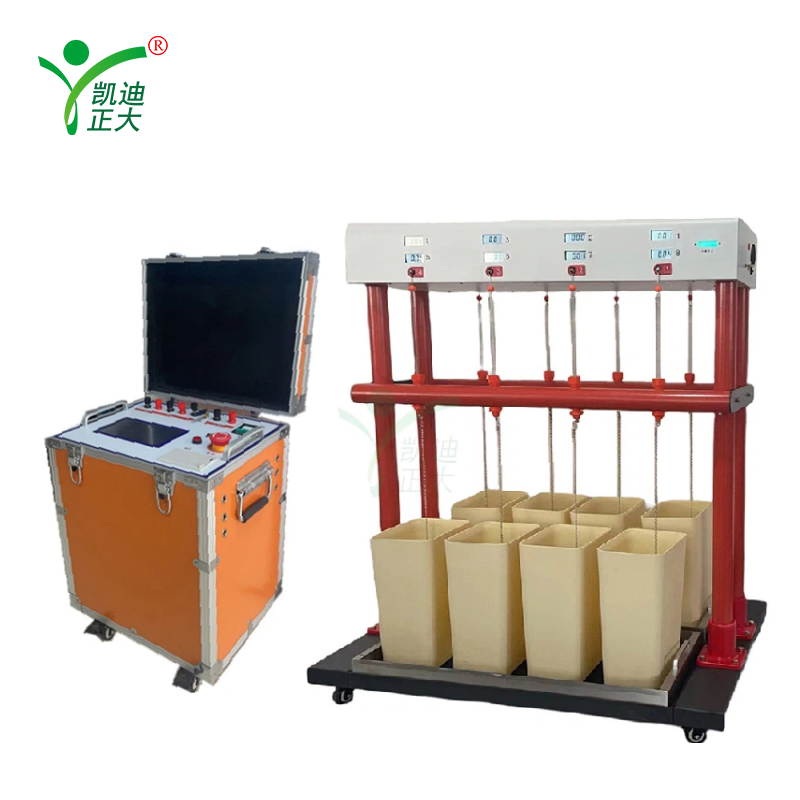

KDJS-6Q Automatic Trip Insulating Boots and Gloves Test Device
KDJS-6Q Automatic Trip Insulating Boots and Gloves Test Device

KDJS-6Q Automatic Trip Insulating Boots and Gloves Test Device

Applications:

The KDJS-6Q Automatic Trip Insulating Boots and Gloves Test Device is for power frequency withstand voltage tests in the power industry, complying with DL/T 976-2017 and DL/T 1476-2015. It is widely used in power maintenance, live working and inspection for preventive testing of insulating shoes and gloves.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

Developed per national power industry standards, this device conducts intelligent withstand voltage tests for insulating shoes and gloves with full compliance to national standard indicators. It features auto trip, wireless current transmission and 8-channel simultaneous testing, ensuring safe and efficient preventive tests.

Features:

  1. Supports simultaneous tests of 8 insulating boots/gloves with independent leakage current measurement for each sample
  2. Adopts dry test method with steel balls for insulating shoes, avoiding water filling and post-test drying troubles
  3. High and low voltage separation with anti-interference wireless transmission of leakage current for operator safety
  4. Independent tripping mechanism for each channel, auto-disconnecting faulty samples and holding current display
  5. 7-inch TFT touch LCD screen with Chinese display, showing multi-parameters and prompt information on one screen
  6. DC motor controlled regulator for fully automatic pressure test with auto boost, timing, step-down and power-off
  7. Special stainless steel grounding tray for boots and containers for gloves, enabling convenient operation
  8. Freely settable test transformer ratio, compatible with customers' existing transformers for flexible matching

Parameter:

  1. Power input voltage: AC220V±10%, 50Hz
  2. Control box output voltage: 0~250V
  3. Control box output current: 20A
  4. Rated output voltage: 50kV
  5. Rated output capacity: 5kVA
  6. Maximum measuring range: 29.9mA
  7. Voltage measurement error: ±1% + 3 digits
  8. Leakage current measurement error: ±1% + 3 digits
  9. Leakage current resolution: 0.01mA
  10. Digital timing: 0~99 minutes (freely settable)
  11. Ambient temperature: -10℃ ~ 40℃
  12. Relative humidity: ≤90%RH (no condensation, no instrument flicker)

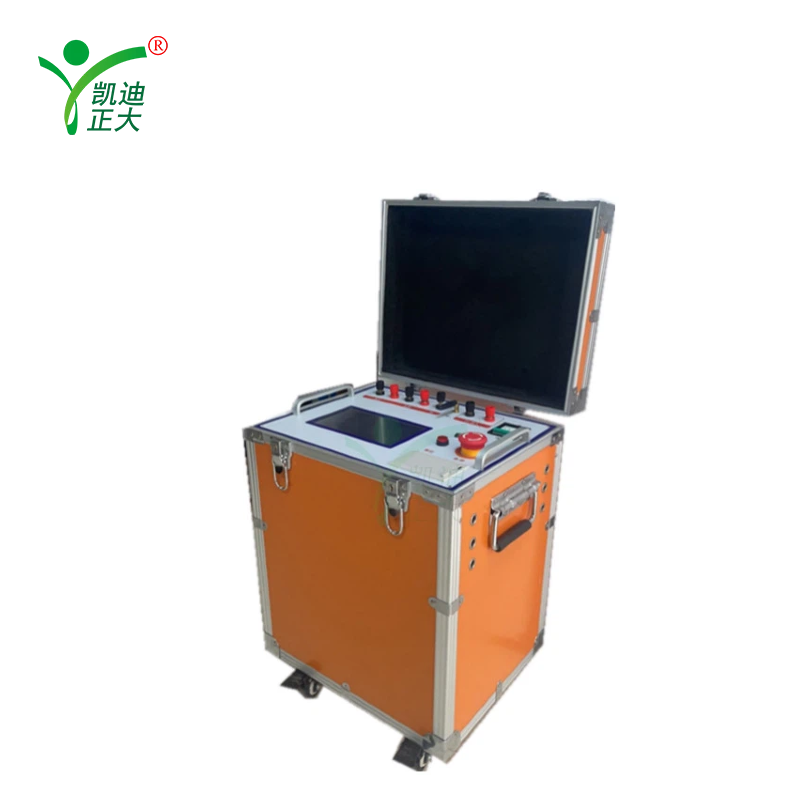

  13. Console dimension: 420×340×920mm

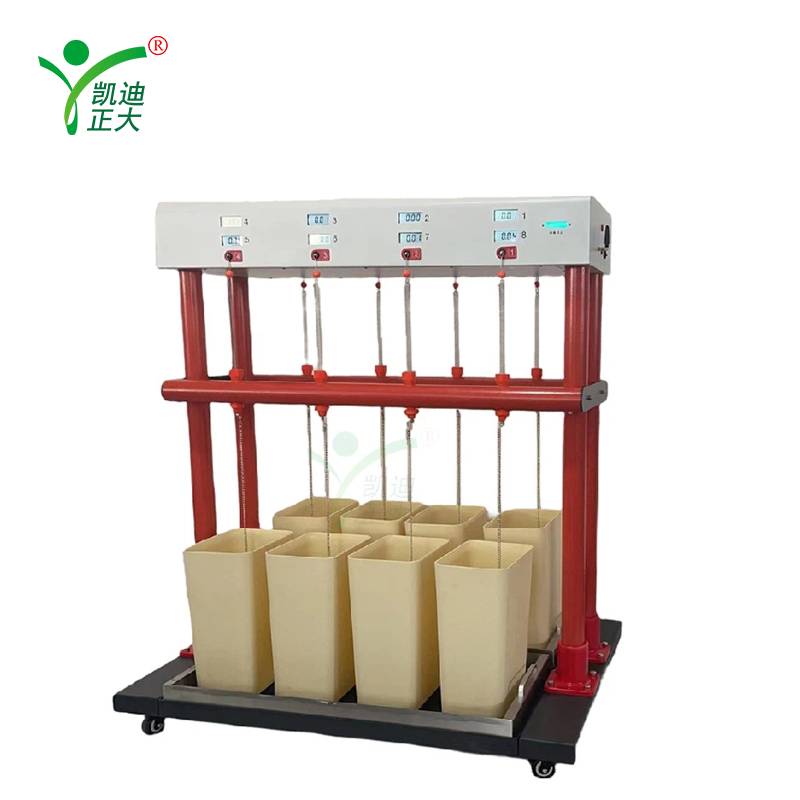

  14. Tester dimension: 260×980×780mm
  15. Console weight: 40kg
  16. Tester weight: 8kg
  17. Test range: Insulating shoes and insulating gloves
