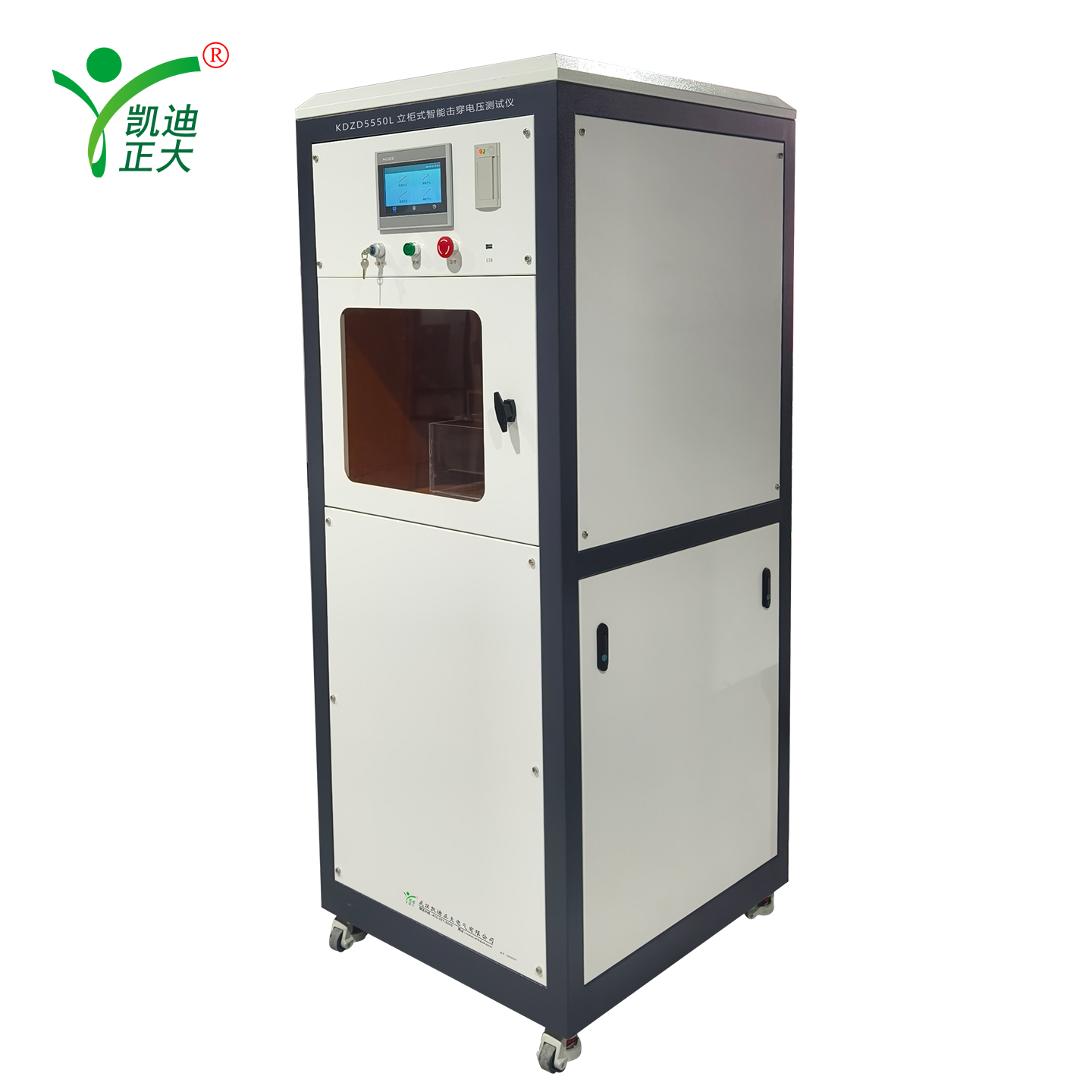

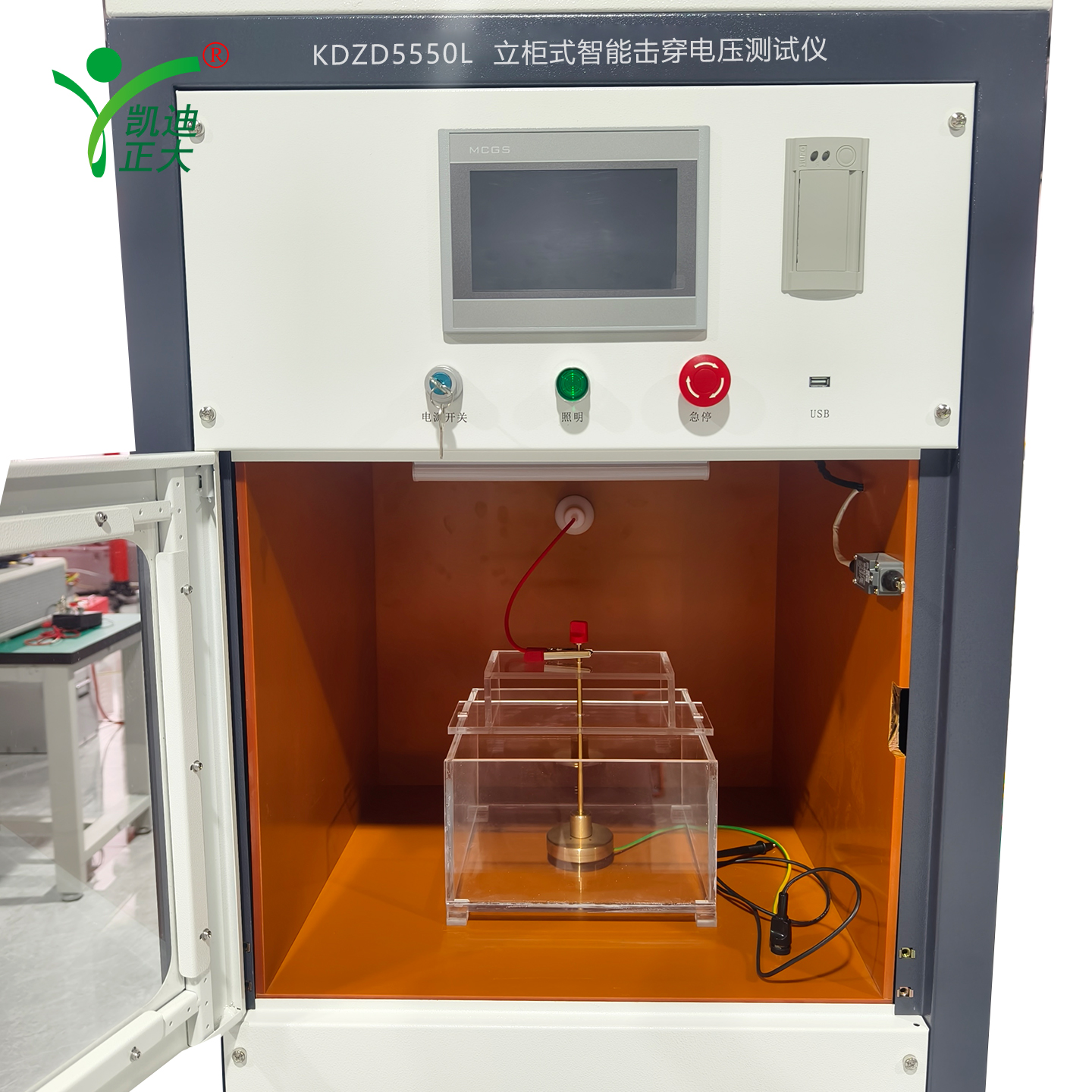

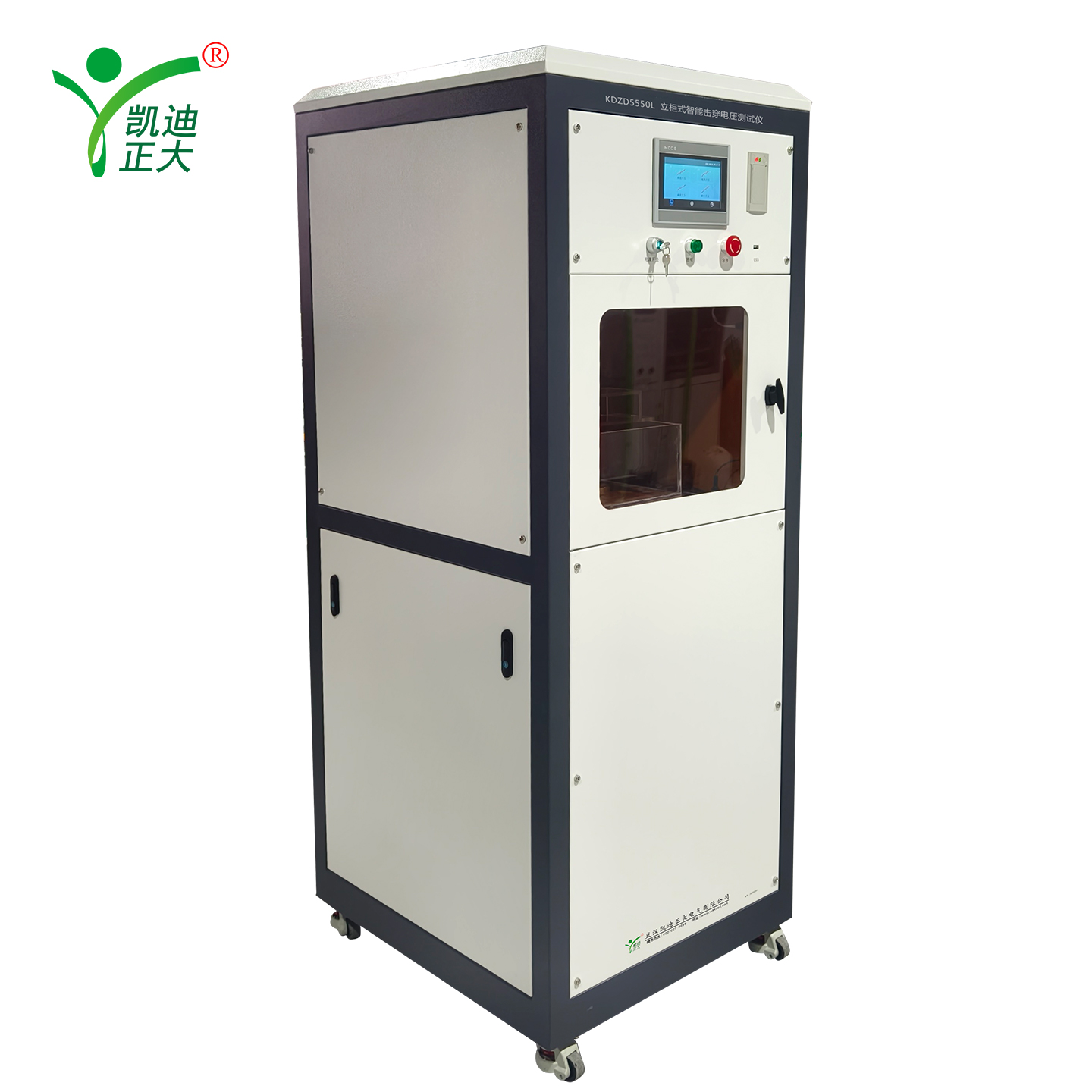

The KDZD5550L Cabinet-Type Intelligent Breakdown Voltage Tester is a specialized instrument designed for testing the dielectric strength and breakdown voltage of solid insulating materials. It is widely used in the power electronics industry, mechanical engineering, research institutes, military research, and insulation material manufacturing. This device is essential for testing materials such as plastics, rubber, laminates, films, resins, mica, ceramics, glass, and insulating varnishes under both power frequency (AC) and direct current (DC) voltages.
Response within
24 hours
Free warranty
12 month
On-line training
Support
| Parameter | 5KV Model | 10KV Model | 20KV Model | 50KV Model | 100KV Model | 150KV Model |
|---|---|---|---|---|---|---|
| Output Voltage (AC/DC) | 0-5kV | 0-10kV | 0-20kV | 0-50kV | 0-100kV | 0-150kV |
| Output Power | 0.5kVA | 1kVA | 2kVA | 3kVA | 10kVA | 15kVA |
| Measurement Range (AC/DC) | 0.05-5kV | 0.5-10kV | 1-20kV | 1-50kV | 1-100kV | 1-150kV |
| Voltage Rise Rate | 0.025-0.5kV/s | 0.05-1kV/s | 0.1-2kV/s | 0.2-5kV/s | 0.02-10kV/s | 1-10kV/s |
| Leakage Current Range | AC: 0-20mA DC: 0-10mA |
|||||
| Withstand Time | 0-4 Hours (No-load) | |||||
| Measurement Accuracy | ≤ 2% | |||||
| Input Power | AC 220V ±10%, 50Hz ±1% | |||||
| Operating Environment | Temp: 15-30°C, Humidity: 30-65% RH | |||||
| Dimensions (W*D*H) | N/A | N/A | N/A | 700*800*1840mm | N/A | N/A |
| Weight | N/A | N/A | N/A | 150kg | 300kg | N/A |
| Grounding Requirement | Requires a separate ground connection in accordance with national standards. |
