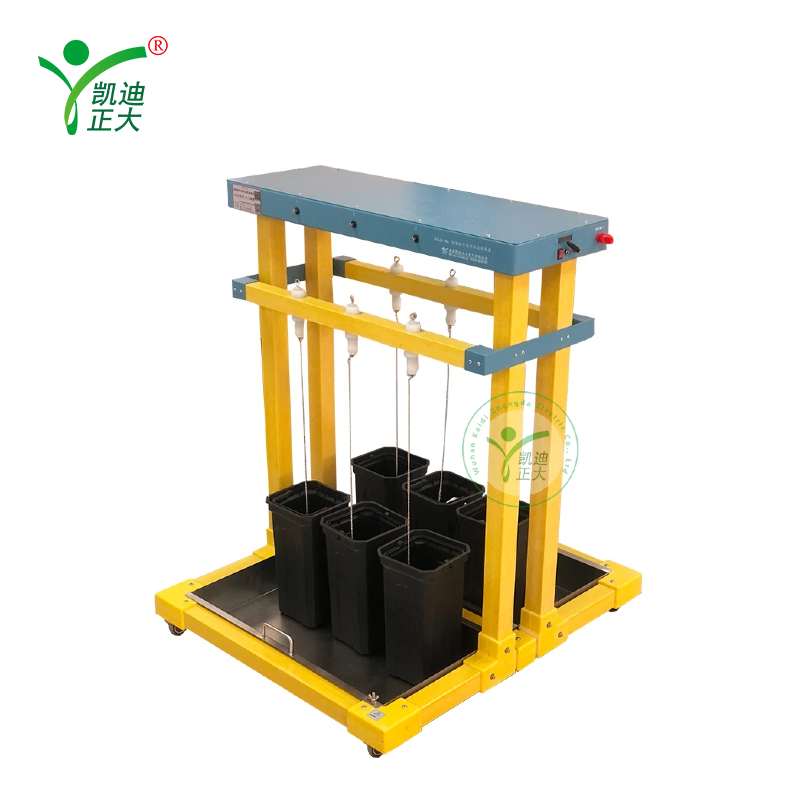

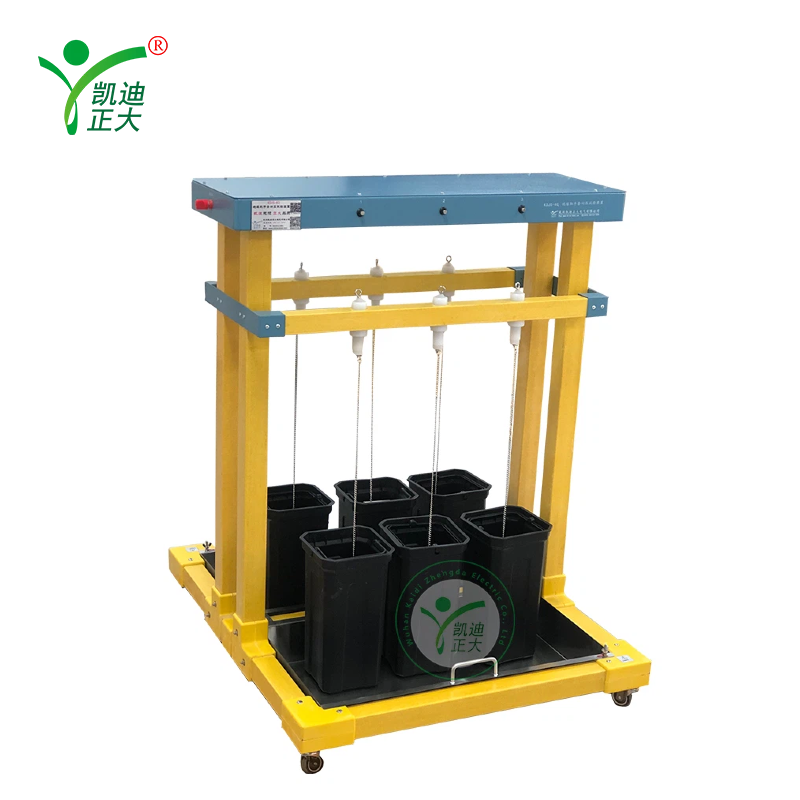

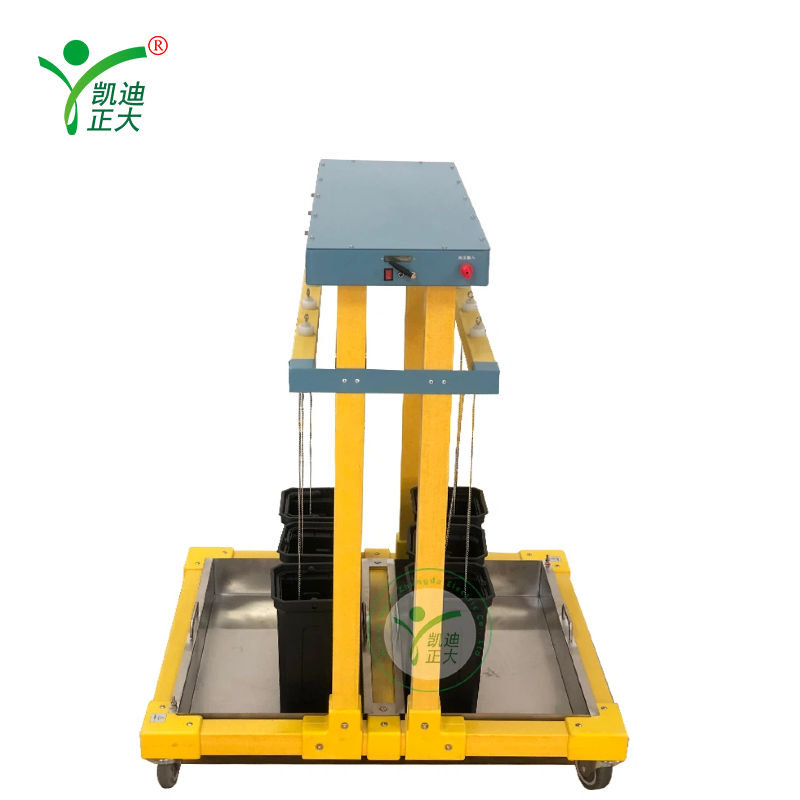

KDZD Insulating Boots and Gloves Withstand Voltage Test Stand
KDZD Insulating Boots and Gloves Withstand Voltage Test Stand

KDZD Insulating Boots and Gloves Withstand Voltage Test Stand

Applications:

This automatic trip withstand voltage stand is designed for the power industry, conducting AC withstand voltage tests of insulating shoes and gloves in line with multiple national and industrial standards, and is widely used for preventive testing of power safety tools in power maintenance and live working.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

Developed per relevant power industry test specifications, this stand enables intelligent AC withstand voltage tests of insulating shoes and gloves, meeting the half-yearly test requirements. It features automatic trip protection and dry test method, suitable for all power-related industries.

Features:

  1. Adopts dry test method with steel balls for insulating shoes, avoiding water filling and the trouble of difficult liner drying after test
  2. Lithium battery powered for leakage current sampling and trip mechanism with battery level displayed in percentage
  3. Independent tripping mechanism for each channel, auto-disconnecting faulty samples without affecting other tests
  4. Trip current of the stand is adjustable via buttons to meet different test requirements
  5. Equipped with special stainless steel grounding tray for boots and containers for gloves for easy operation

Parameter:

  1. Working power supply: DC 12V lithium battery
  2. Rated voltage: 50kV
  3. Ambient temperature: -10℃ ~ 40℃
  4. Relative humidity: ≤90%RH (no condensation, no instrument flicker)
  5. Overall dimension: 850×800×110mm
  6. Weight: 20kg
  7. Test range: AC withstand voltage test of insulating shoes and insulating gloves
