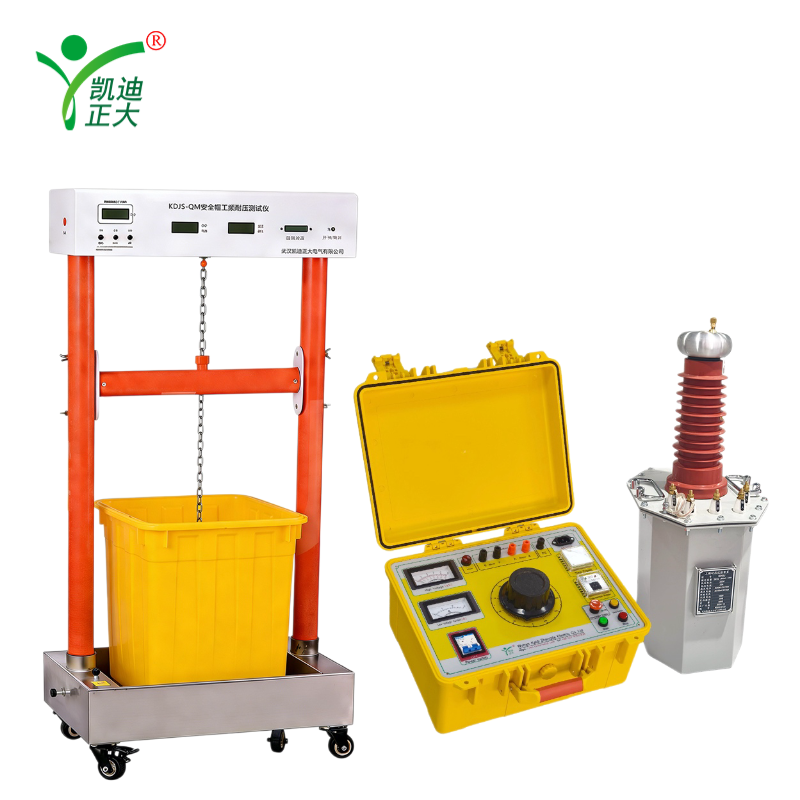

KDJS-QM Helmet Power Frequency Withstand Voltage Tester
KDJS-QM Helmet Power Frequency Withstand Voltage Tester

KDJS-QM Helmet Power Frequency Withstand Voltage Tester

Applications:

KDJS-QM Helmet Power Frequency Withstand Voltage Tester is designed for mandatory periodic tests of insulating safety helmets and other tools, it features intelligent testing functions with high voltage and current measurement accuracy (±1%) to ensure accurate and reliable results.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDJS-QM Helmet Power Frequency Withstand Voltage Tester is developed per DLT 976-2017 for live working tools'preventive tests, meeting insulation helmet’s power frequency withstand voltage requirements. It conducts intelligent withstand voltage tests on insulation helmets and other safety tools, with a 6-month test cycle for helmets. Qualification requires no flashover, breakdown or overheating, and it's suitable for all power-related industries.

Features:

  1. Strictly compliant with industry standards, designed exclusively for mandatory periodic tests of insulating safety helmets and other tools.
  2. Equipped with intelligent testing functions, featuring high voltage and current measurement accuracy (±1%) to ensure accurate and reliable results.
  3. The rated output reaches 50kV / 5kVA, fully meeting the requirements of high-voltage withstand voltage tests.
  4. Digital display timing is adjustable, split-type structure for easy handling, wide power supply and strong temperature & humidity adaptability, suitable for on-site use.

Parameter:

  1. Power input voltage: 220V±10V, 50Hz±0.1Hz
  2. Console output voltage: 0-250V
  3. Console output current: 20A
  4. Rated output voltage: 50kV
  5. Rated output capacity: 5kVA
  6. Voltage measurement error: ±1%±3 digits
  7. Current measurement error: ±1%±3 digits
  8. Digital display timing: 99 minutes, freely settable
  9. Ambient temperature: -10℃-40℃
  10. Humidity: ≤90%RH, no condensation, no instrument flicker
  11. Control box dimension: 380mm×300mm×450mm
  12. Test transformer dimension: 300mm×300mm×500mm
  13. Test stand dimension: 100mm×760mm×1150mm
  14. Control box weight: 22kg
  15. Test transformer weight: 30kg
  16. Test stand weight: 50kg
