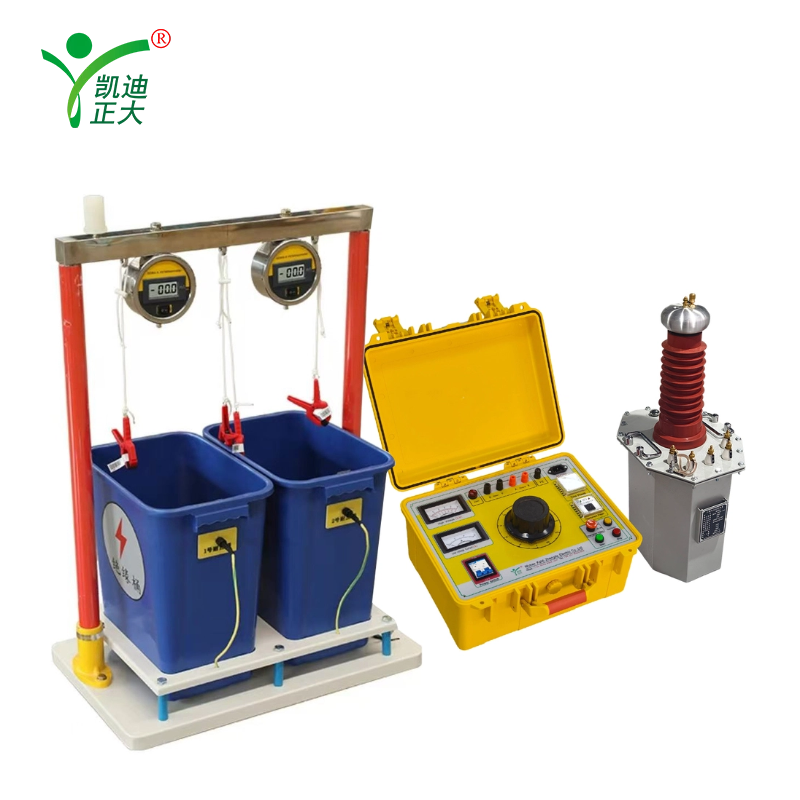

 KDJS-2Q Insulating Boots and Gloves Withstand Voltage Test Device
 KDJS-2Q Insulating Boots and Gloves Withstand Voltage Test Device

KDJS-2Q Insulating Boots and Gloves Withstand Voltage Test Device

Applications:

This device is suitable for most power-related industries, it is used to conduct mandatory periodic insulation withstand voltage tests on insulating boots, gloves and other electrical safety tools. It meets the on-site test requirements of power supply and distribution systems, power stations and electrical maintenance departments with stable performance and strong environmental adaptability.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDJS-2Q is a professional dedicated test device independently developed for batch testing of insulated safety tools, matching with  test transformer. It standardizes the test process, improves test efficiency, has reliable protection and ensures safe operation during the test.


Features:

  1. Tests 2 insulating boots/gloves simultaneously and measures each sample's leakage current separately
  2. Adopts dry test method with steel balls for boots, avoiding water filling and drying troubles
  3. Leakage current measured at high-voltage side ensures accurate testing data
  4. High and low voltage separation design provides excellent personal safety protection
  5. Independent tripping for each channel, automatic disconnection on breakdown/overcurrent without affecting others
  6. Special grounding tray for boots and dedicated container for gloves for easy operation
  7. Accessible to be matched with customers' existing test transformers

Parameter:

  1. Leakage current range with trip system: ≥30mA
  2. Maximum leakage current meter range: 30mA
  3. Voltage measurement error: ±1% + 3 digits
  4. Leakage current measurement error: ±1% + 3 digits
  5. Leakage current resolution: 0.01mA
  6. Ambient temperature: -10℃ ~ 40℃
  7. Humidity: ≤90%RH, no condensation, no instrument flicker
  8. Continuous operation time: Intermittent, ≤30min
  9. Tester weight: 8kg
