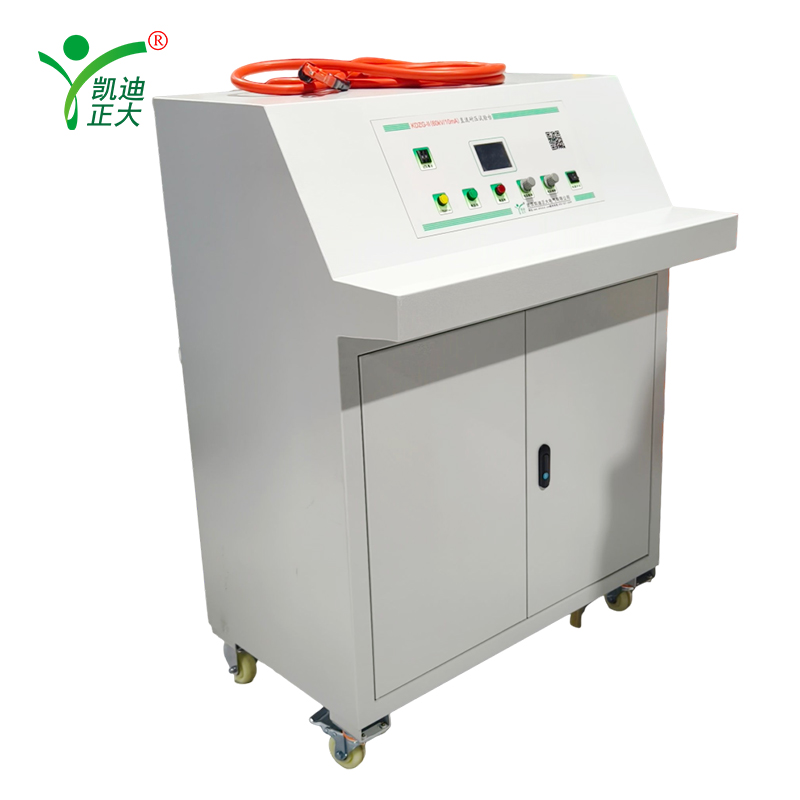

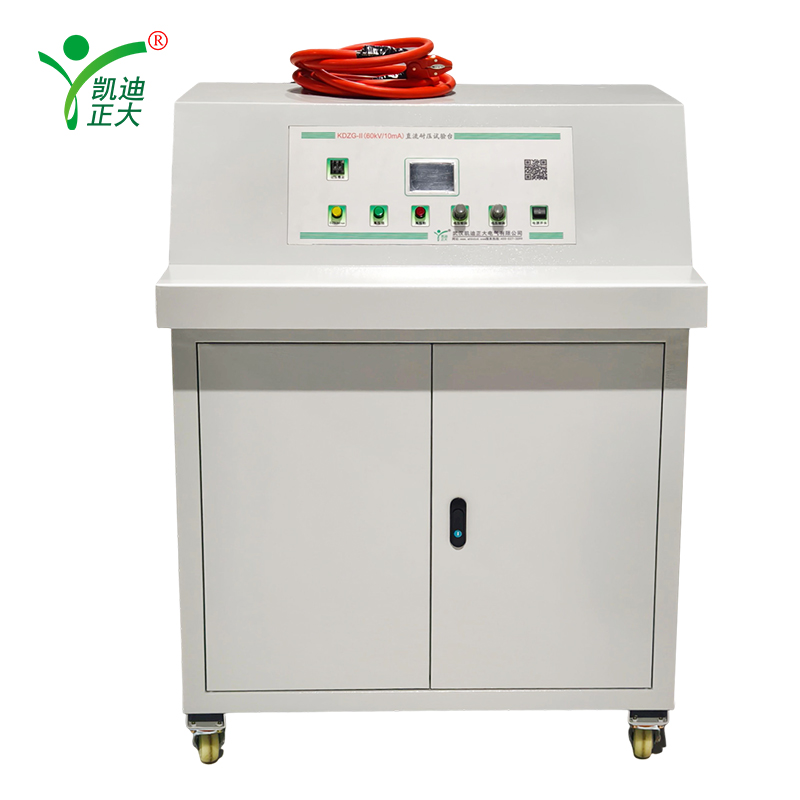

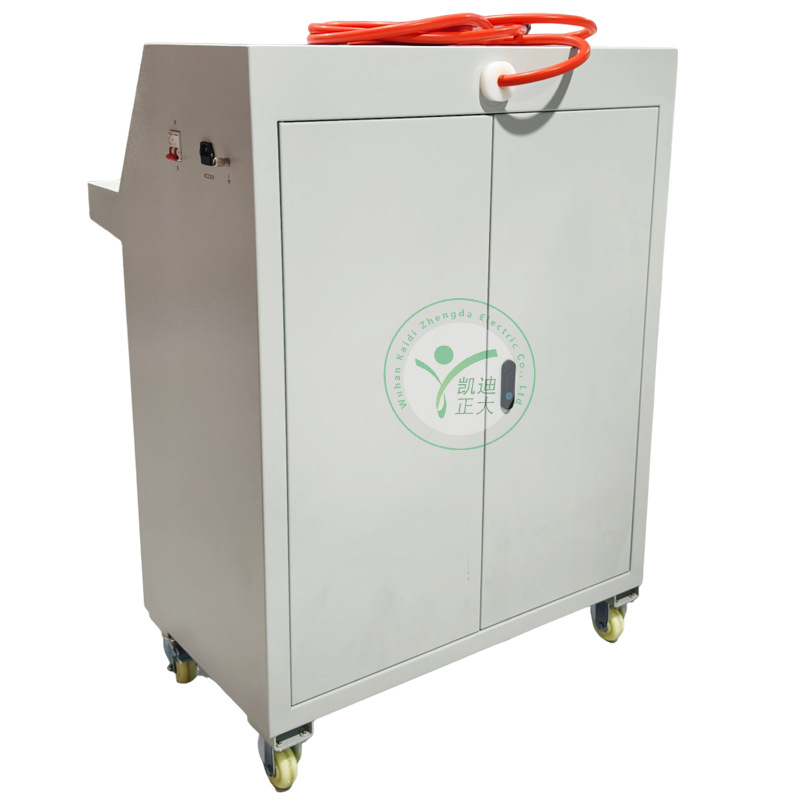

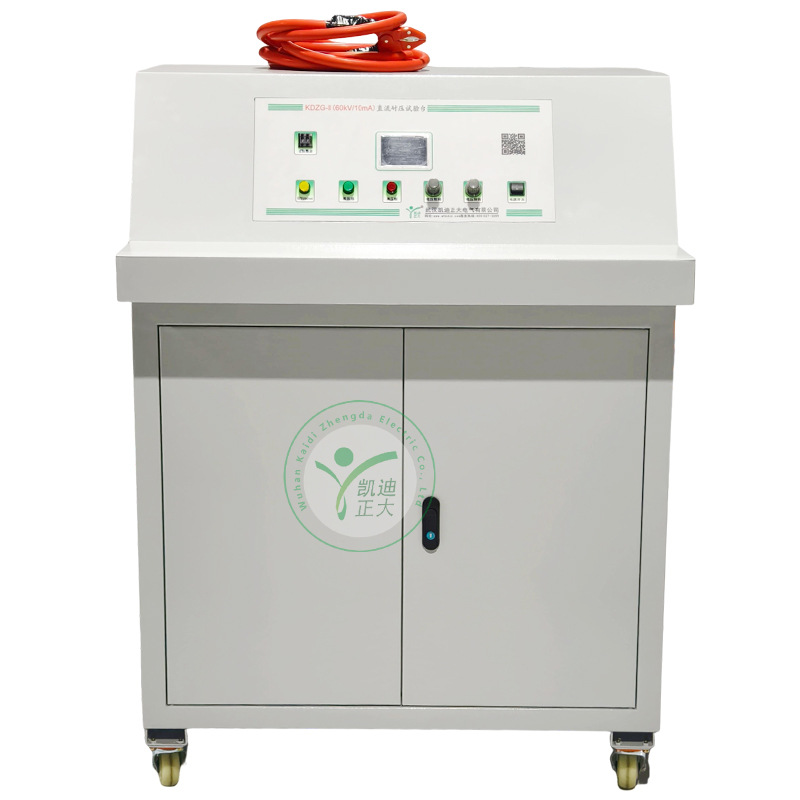

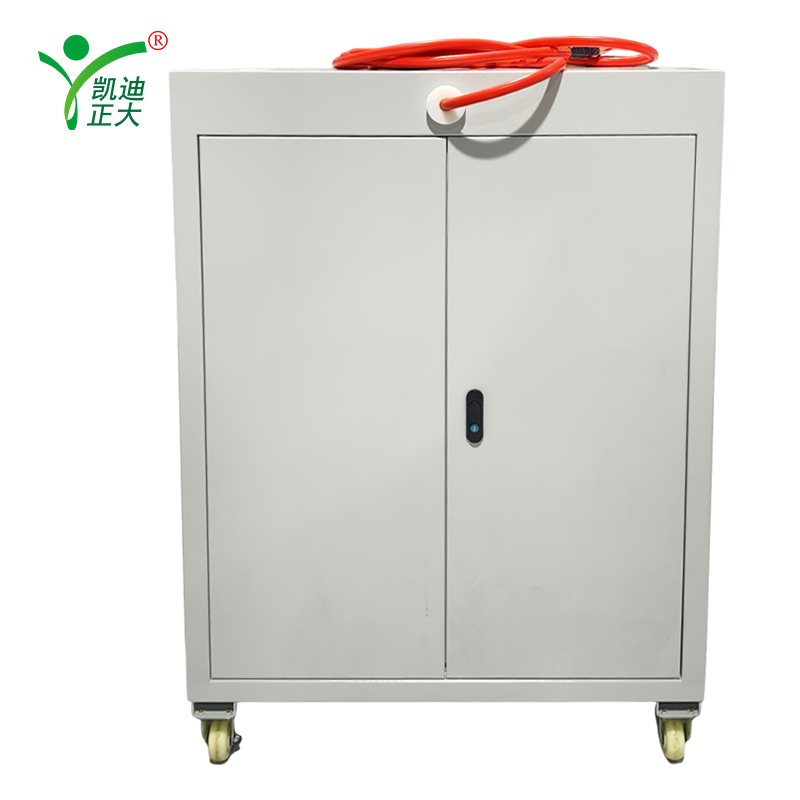

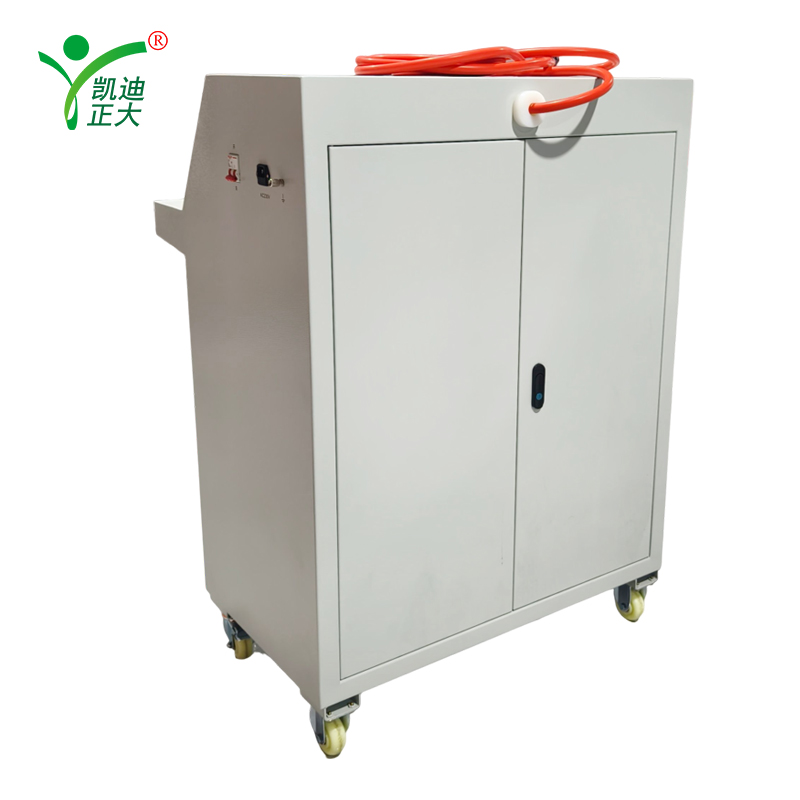

KDZG-II 60kV/10mA DC Withstand Voltage Test Bench
KDZG-II 60kV/10mA DC Withstand Voltage Test Bench

KDZG-II 60kV/10mA DC Withstand Voltage Test Bench

Applications:

Complies with ZGF24003-90, used for DC high-voltage tests of zinc oxide arresters, power cables, transformers and switches. Applied in power departments, factories, research institutes, railways and chemical industries for equipment insulation performance detection.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDZG-II is a portable DC withstand voltage test bench adopting PWM intermediate frequency technology and IGBT devices. It features stable voltage output, multiple protections and compact design, ideal for on-site and laboratory high-voltage insulation testing.

Features:

  • PWM intermediate frequency pulse width modulation technology for high voltage stability and low ripple coefficient
  • Built-in 0.75UDC-1mA function for convenient zinc oxide arrester testing with one-key operation
  • Digital display of voltage (resolution 0.1kV) and current (resolution 1μA) with high measurement accuracy
  • Multiple protection functions: overvoltage, overcurrent, zero-start, grounding and wire breakage protection
  • Epoxy glass fiber reinforced plastic voltage doubling cylinder with air insulation, no leakage risk
  • Vertical/horizontal dual-purpose chassis and built-in support feet for enhanced stability during on-site use

Parameter:

  • Core Output Performance (60/10 model)
    • Rated voltage: 60kV DC; Rated current: 10mA; Rated power: 600W
    • Voltage measurement accuracy: ±(1.0% reading ±2 digits); Current measurement accuracy: ±(1.0% reading ±2 digits)
    • Ripple coefficient: ≤2%; Voltage stability: ≤1% (when power supply changes ±10%)
  • Overload Capacity
    • No-load voltage: 10% higher than rated voltage, usable for 10 minutes
    • Maximum charging current: 1.25×rated current; Capacitive load capacity: Unlimited
  • Power Supply
    • Input: Single-phase AC 220V±10%, 50Hz
  • Working Conditions
    • Working mode: Intermittent (max 10 minutes continuous operation)
    • Temperature: -10~40℃; Relative humidity: ≤85% (25℃, no condensation); Altitude: ≤1500m
  • Physical Specifications
    • Control box weight: 4.5kg; Voltage doubling cylinder weight: 6.5kg
    • Voltage doubling cylinder height: 700mm
    • Structure: Epoxy glass fiber reinforced plastic voltage doubling cylinder, air insulation
  • Function & Operation
    • Key functions: Overvoltage setting (digital dial switch), high/low voltage measurement of leakage current
    • Control buttons: Power on/off, high voltage on/off, voltage coarse/fine adjustment, 0.75UDC-1mA button
  • Accessories
    • Standard accessories: High-voltage cable, grounding wire, discharge rod, microammeter, current-limiting resistor (1MΩ), fuse tubes, equalizing cover
