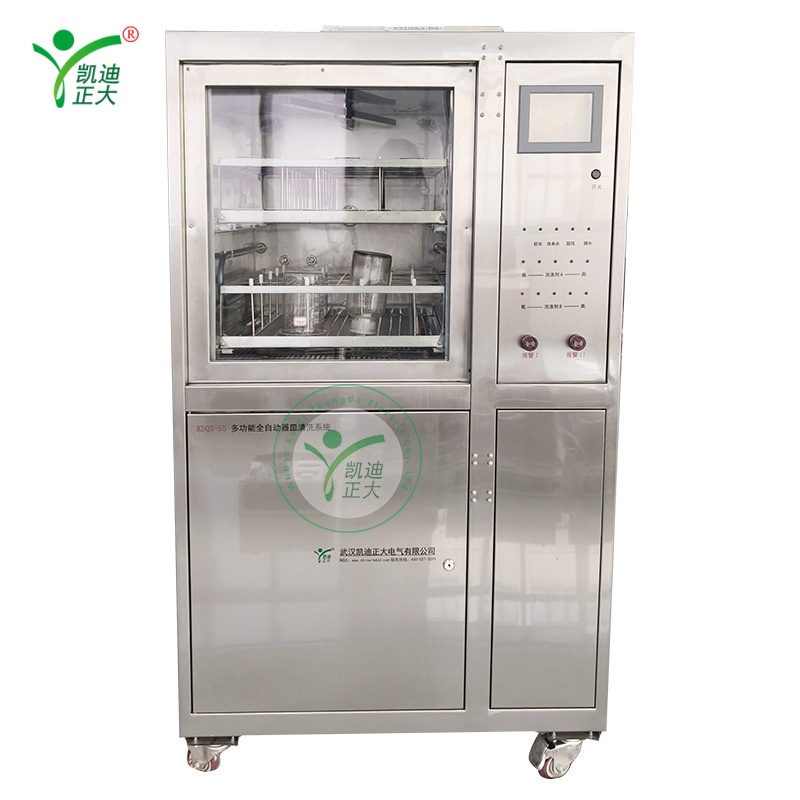

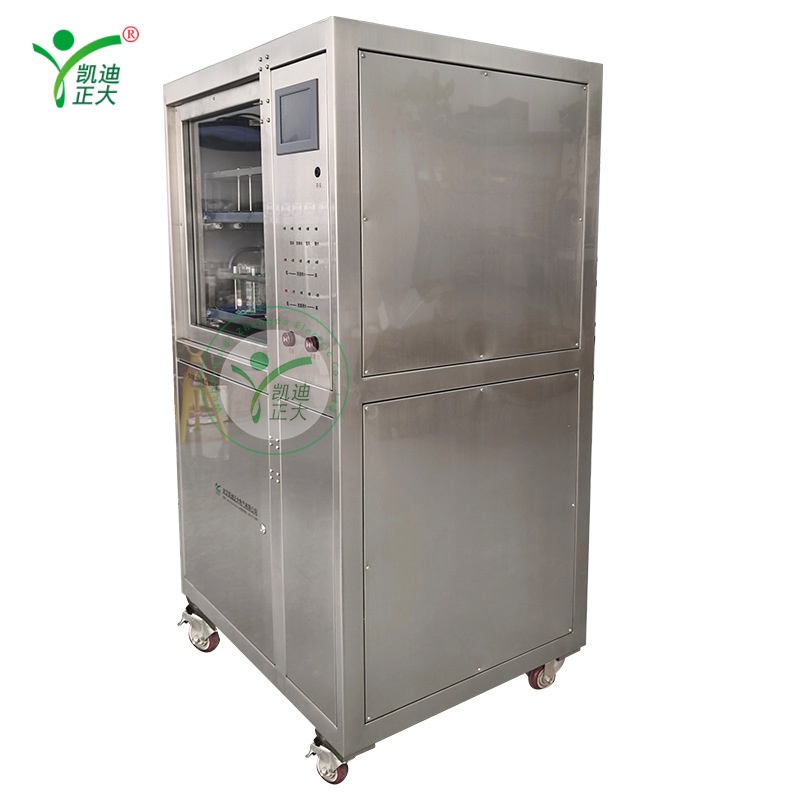

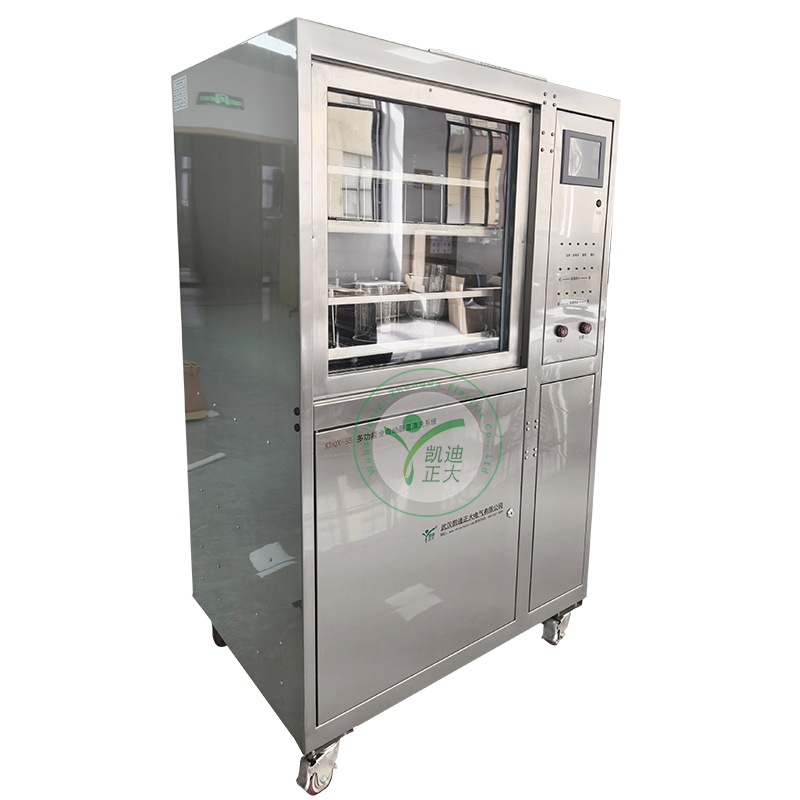

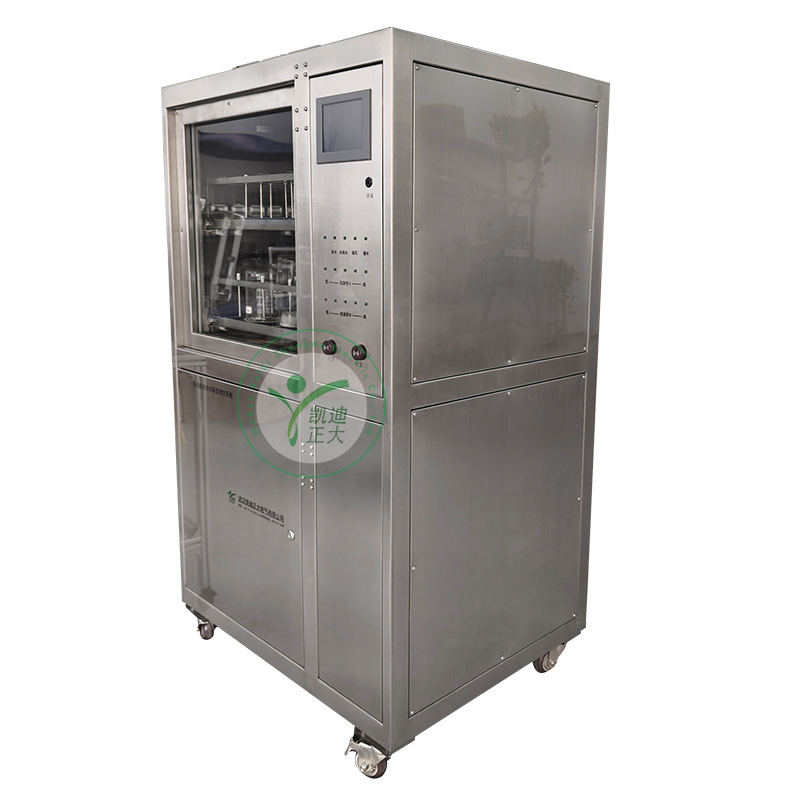

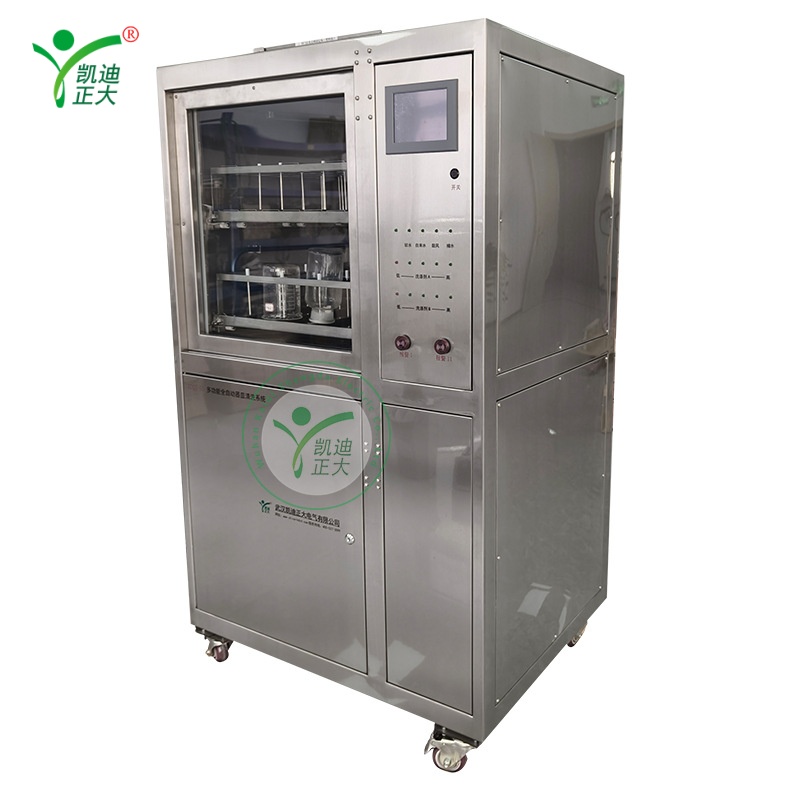

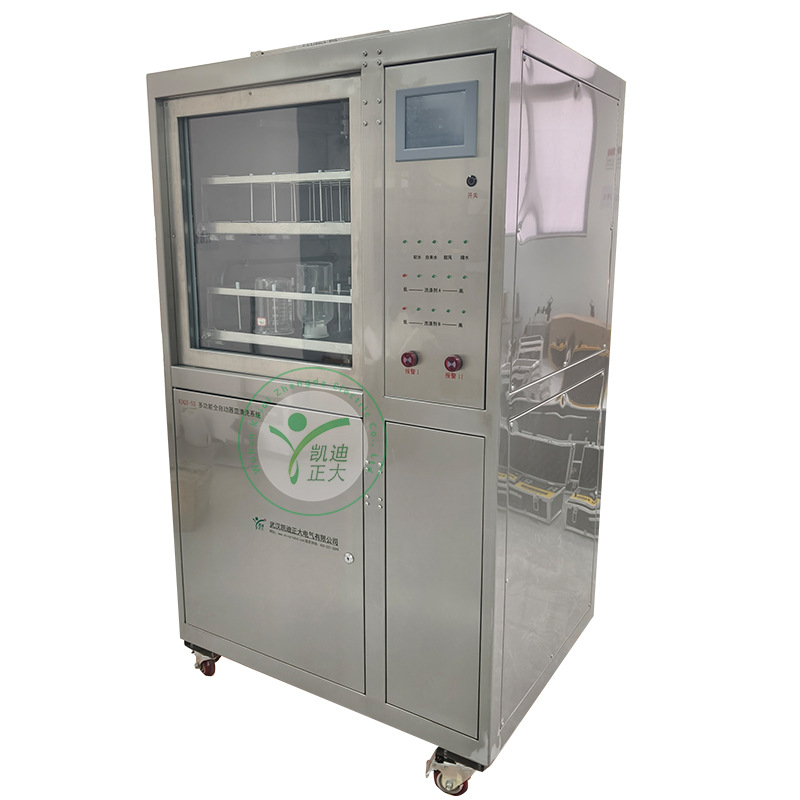

The KDZD Automatic Labware Washer is a fully automated system designed to clean and disinfect laboratory glassware to analytical-grade standards. It integrates high-temperature softening, high-pressure stripping, acidification, oil emulsification, and UV disinfection technologies. With a dual-CPU control system and multiple cleaning modes, it ensures reliable operation and high cleanliness. The stainless steel construction and mobile design make it ideal for modern laboratory workflows.

• Dual-CPU monitoring control: Ensures stable and reliable operation
• Multi-stage cleaning technology: Combines high-temperature softening, acidification, emulsification, and UV disinfection
• Upper/lower dual nozzles: Ensures 360° cleaning with no dead angles
• Automatic valve control: Minimizes pipeline volume and water consumption
• GC high-performance insulation: Reduces heat loss and energy consumption
• High-precision temperature control: Accurate monitoring of cleaning and drying temperatures
• Filtered high-purity water: Prevents contamination of high-pressure pumps
• Customizable cleaning modes: Default, light-duty, and custom modes for different contamination levels
• Safety interlocks: Auto-lock door during operation to protect users
• Touchscreen interface: Intuitive Chinese menu for easy operation
• Modular design: Easy maintenance and replacement of components
• Adjustable baskets: Accommodates different labware sizes and quantities

• Model: KDZD
• Cleanliness Standard: Analytical grade (pH 6.5~7.5; residual detergent ≤0.1 μg/cm²; particle residue ≤ manual cleaning)
• High-Pressure Cleaning: Pressure 0~0.45 MPa, flow rate 200 L/min
• Temperature Control:
  • Wash: Tap water ~70°C (±2°C)
  • Drying: Ambient ~105°C (±5°C)
  • Cabinet exterior ≤40°C
• Cleaning Modes: Default (heavy oil), light-duty, custom, manual
• Wash Cycle: ~90 minutes (varies with configuration)
• Detergent System: Fully isolated magnetic pump to avoid contamination
• Display: 8-inch touchscreen (Chinese interface)
• Dimensions: 85cm × 70cm × 149cm
• Weight: 120kg
• Power Supply: AC220V ±5%, 50/60Hz
• Max Power: 4000W
• Operating Environment: 0~40°C, humidity ≤85%
