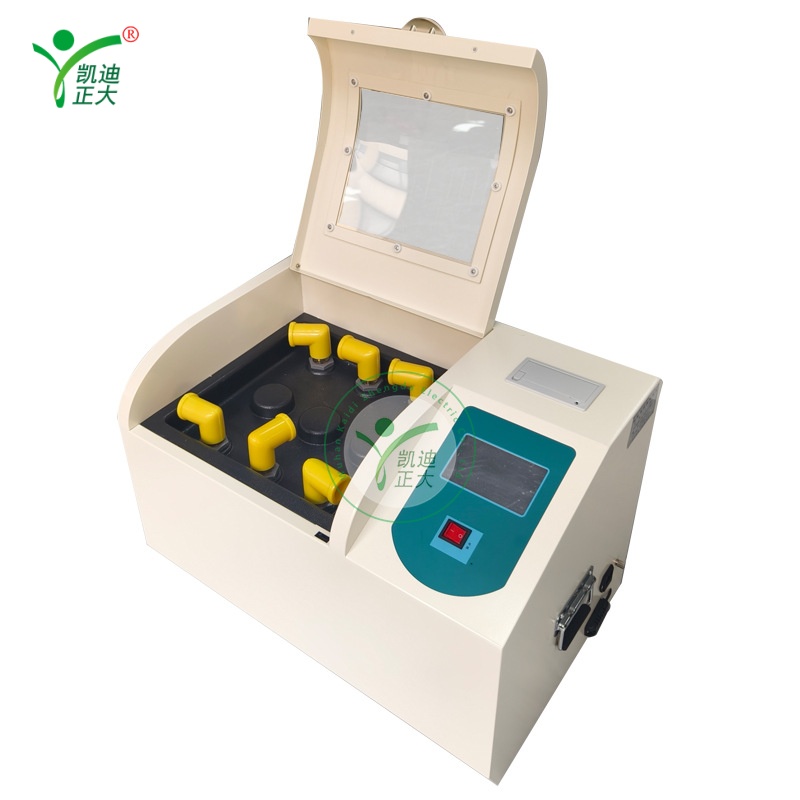

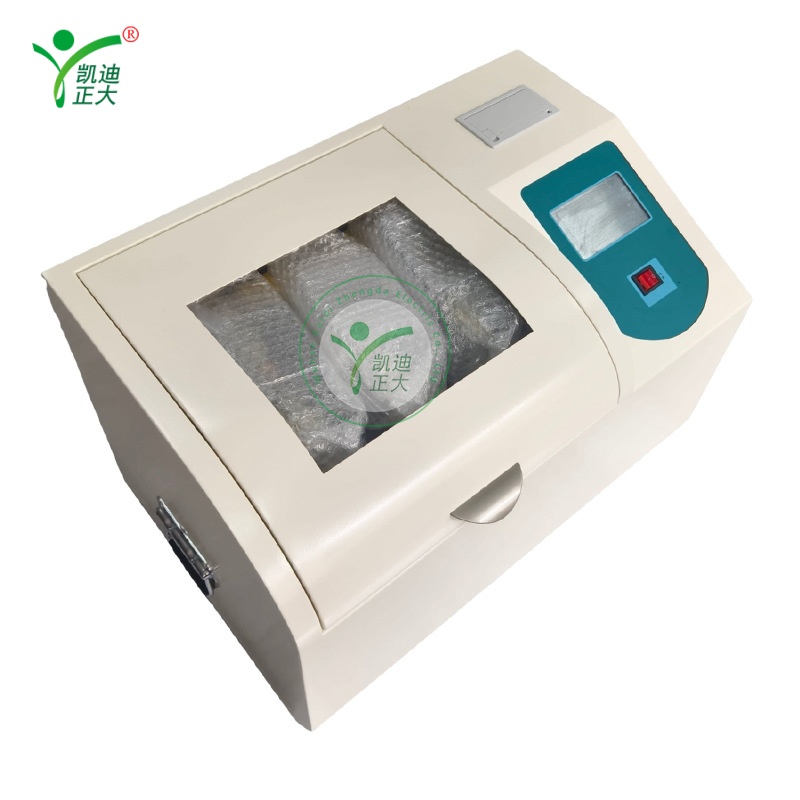

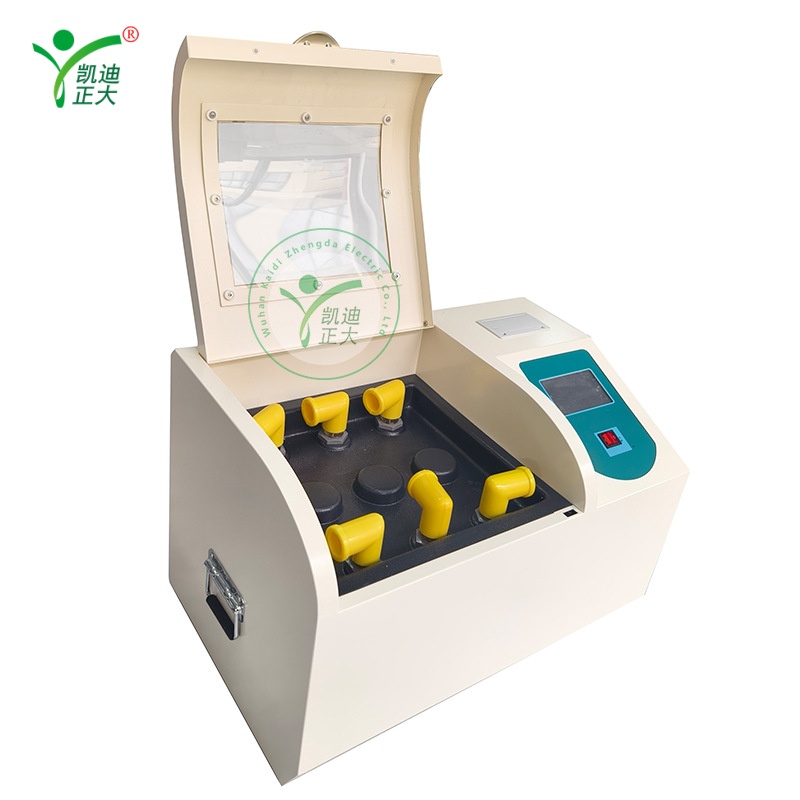

KDZD Insulating Oil Dielectric Strength Tester (0~80kV)
KDZD Insulating Oil Dielectric Strength Tester (0~80kV)

KDZD Insulating Oil Dielectric Strength Tester (0~80kV)

Applications:

Designed for dielectric strength testing of insulating oil in transformers and electrical equipment. Compliant with GB/T 507-2002 and DL/T 596-2005, it’s ideal for power labs, industrial facilities, and field testing to ensure oil insulation performance and equipment safety.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDZD is an advanced insulating oil dielectric strength tester built for the power industry. It features an all-in-one structure with microcomputer control, automating the entire testing process: stirring, voltage boost, breakdown detection, data calculation, storage, and printing. With a 800×480 color touchscreen, it supports 13 test standards, 6 methods, and 10 adjustable voltage rise speeds. It offers high measurement accuracy, strong anti-interference capability, and comprehensive safety protections, making it perfect for both lab and field use.

Features:

  • Compliant with GB/T 507-2002 and DL/T 596-2005 standards
  • 0~80kV output voltage with 10 selectable rise speeds (0.5~5.0kV/s)
  • Full automation: stirring, voltage boost, breakdown detection, and result calculation
  • 800×480 color touchscreen with intuitive operation
  • Built-in 13 test standards and 6 test methods for flexible configuration
  • Thermal printer for instant result output
  • Over-voltage, over-current, and over-limit protection for safety
  • Strong anti-interference performance for strong electromagnetic environments

Parameter:

  • Power Supply: AC 220V±22V, 50Hz±2.5Hz
  • Power Consumption: 200W
  • Output Voltage: 0kV~80kV
  • Voltage Rise Speed: 0.5~5.0kV/s (10 selectable speeds)
  • Voltage Total Distortion Rate: <3%
  • Operating Environment: 0°C~+40°C, relative humidity ≤80%
  • Display: 800×480 color touchscreen LCD
  • Protection: Over-voltage, over-current, and limit protection
