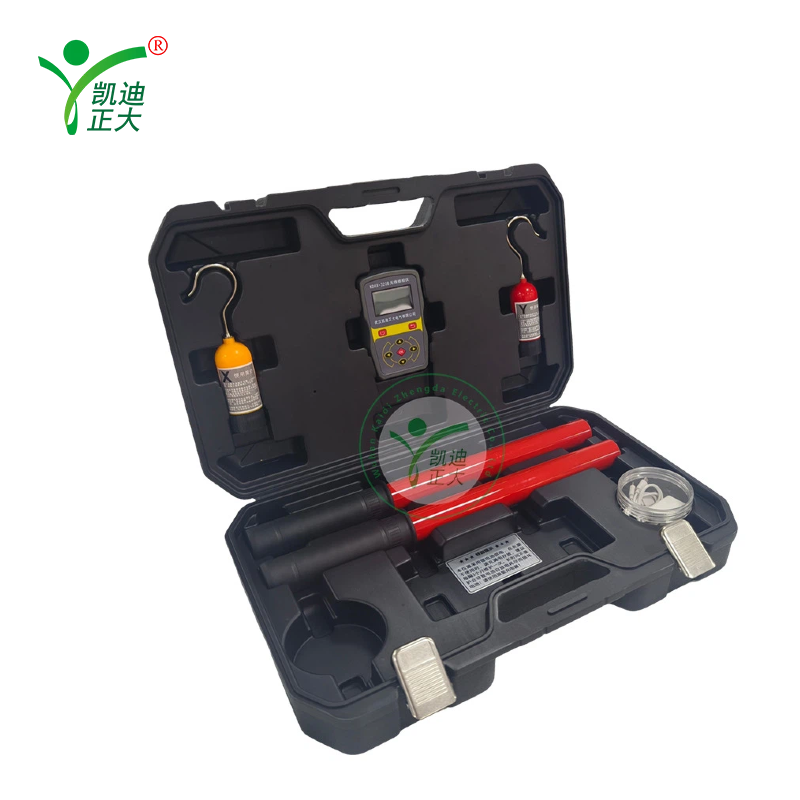

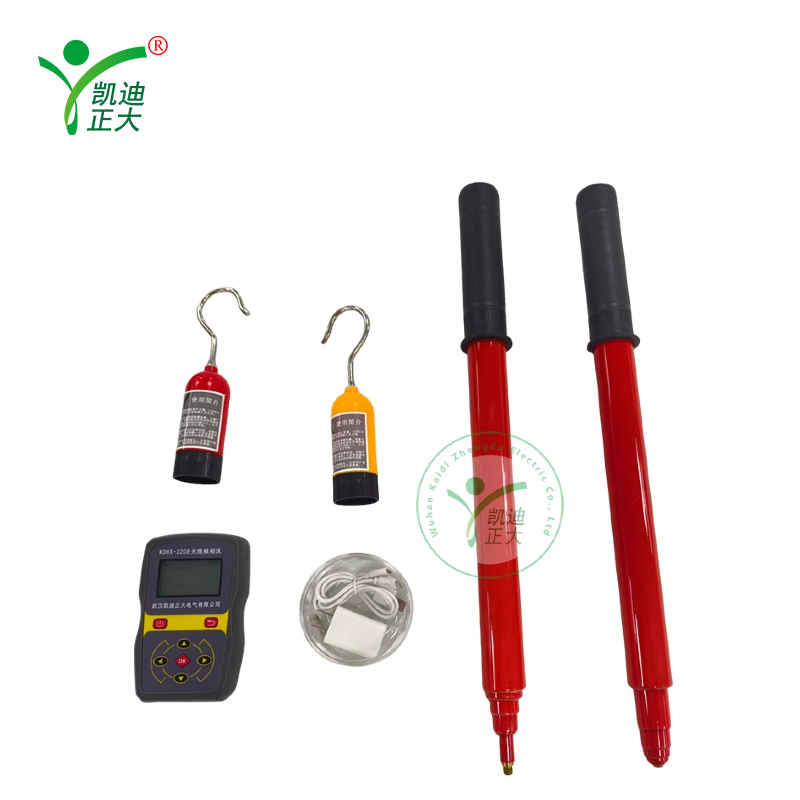

The KDHX-3208 wireless high voltage nuclear phase meter produced by our company is mainly used in phase verification and phase sequence verification of power lines and substations, and its main functions include electricity inspection, nuclear phase, phase sequence measurement, etc. This product adopts double shielding and new digital circuit, has strong anti-interference, meets the requirements of (EMC) standard, and ADAPTS to various electromagnetic field interference occasions.

The high-voltage phase signal of the measured wire is directly transmitted after processing, and the phase is received by the handheld computer and compared. The result after the nuclear phase is qualitatively determined, and the phase Angle difference and vector diagram are displayed in real time.

This product uses wireless transmission technology to achieve safety, reliability, fast and accurate, different voltage levels (10V-500KV) are applicable. When checking the structure of the power grid, the relative phase of different wires can be accurately identified for the three-phase connection line, and there is no electrical connection between the two measurement components, which makes the application of the measurement device very flexible and safe.

Product advantage
Measured voltage: 10V-500KV, different voltage levels are applicable
Accuracy: Self-calibration error ≤±3°
Sampling rate: 10 times/second
Screen contrast: Adjustable display definition Ø Automatic shutdown Settings: never, 0-10 minutes can be set by itself
Backlight time setting: steady on, off, 0-60 seconds can be set by itself
In-phase qualitative: ≤30° is in phase (phase threshold 0-60° can be set by itself. System default 30°)
Out-of-phase qualitative: > 30° is out-of-phase (the phase threshold can be set within 0-60°. System default 30°)
Field calibration function: The measured wire can be calibrated on site to ensure the accuracy of phase Angle
The transmission distance between the hand-held machine and X collector and Y collector is X≤200m and Y≤200m
Multi-mode design, more applicable, safer and more convenient
Man-machine interface, simple operation
FCC antenna design, the signal is stronger, more easily through walls, doors or obstacles
Double shielding, strong anti-interference, in line with EMC standards
Charts and data display for easier reading
Qualitative measurement: display by acousto-optic signal
Quantitative measurement: real-time display of phase Angle difference, error ≤5°
Phase sequence check: forward phase sequence, reverse phase sequence (120°, 240°)

Technical index
Measured voltage: 10V-500kV
Power supply: Handheld: 5 AA alkaline battery 2 (1.5V); X and Y collectors: rechargeable lithium batteries
Wireless transmission distance: visual distance of 200 meters
In-phase: phase Angle offset ≤30° (threshold 0-60°, can be set by yourself)
Out of phase: phase Angle offset > 30° (threshold 0-60°, can be set by yourself)
Display accuracy: quantitative measurement ≤3°
Phase Angle resolution: 1°
Phase sequence measurement: The indicating phase sequence is determined by 120° clockwise /240° counterclockwise
Display: positive LCD display, can be clearly displayed in the sun
Operating temperature: -35℃-- +50℃
Storage temperature: -40℃-- +55℃
Relative humidity: ≤ 95%RH no condensation

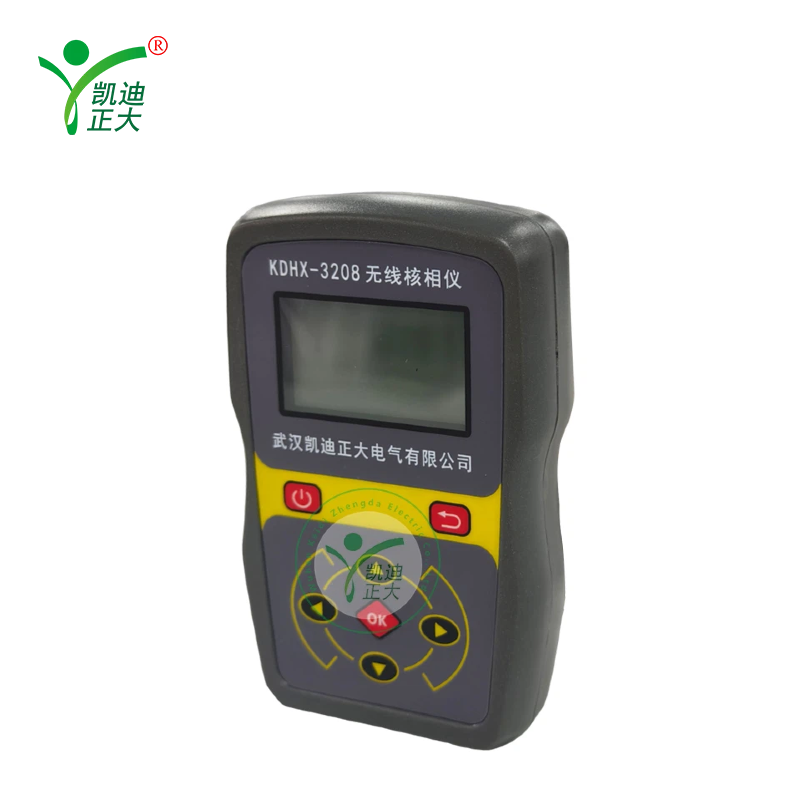

Handheld: 0.28kg
X Collector: 0.11kg
Y Collector: 0.11kg
