KDZD5000Z Intelligent Power Quality Analyzer

KDZD5000Z Intelligent Power Quality Analyzer

Applications:

The KDZD5000Z is ideal for on-site power quality testing in power, petrochemical, metallurgical, railway, and industrial enterprises. It supports harmonic analysis, transient capture, inrush current monitoring, and long-term data logging for grid maintenance, equipment commissioning, and fault diagnosis.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

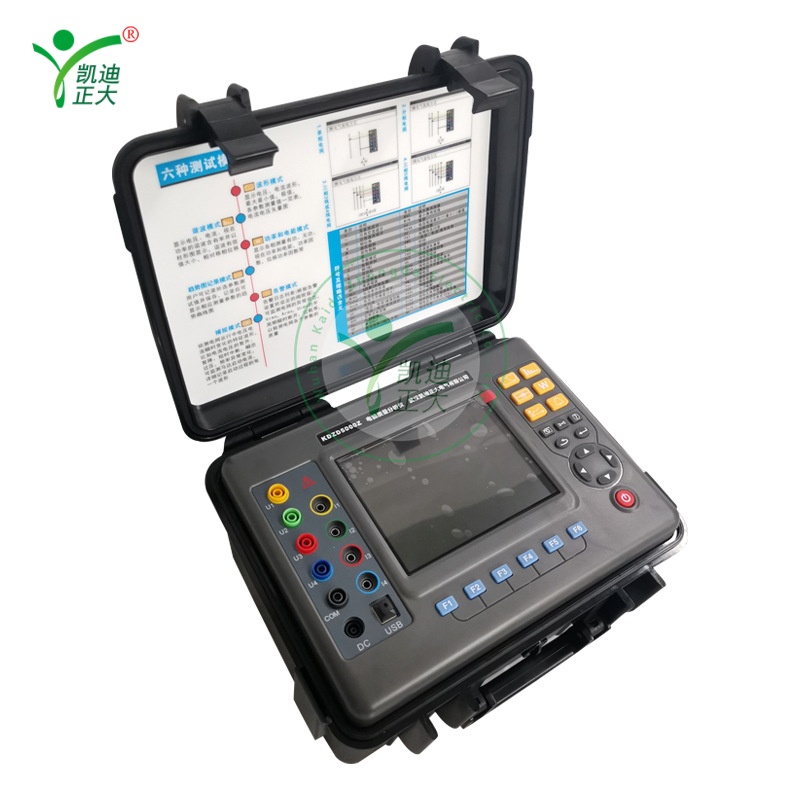

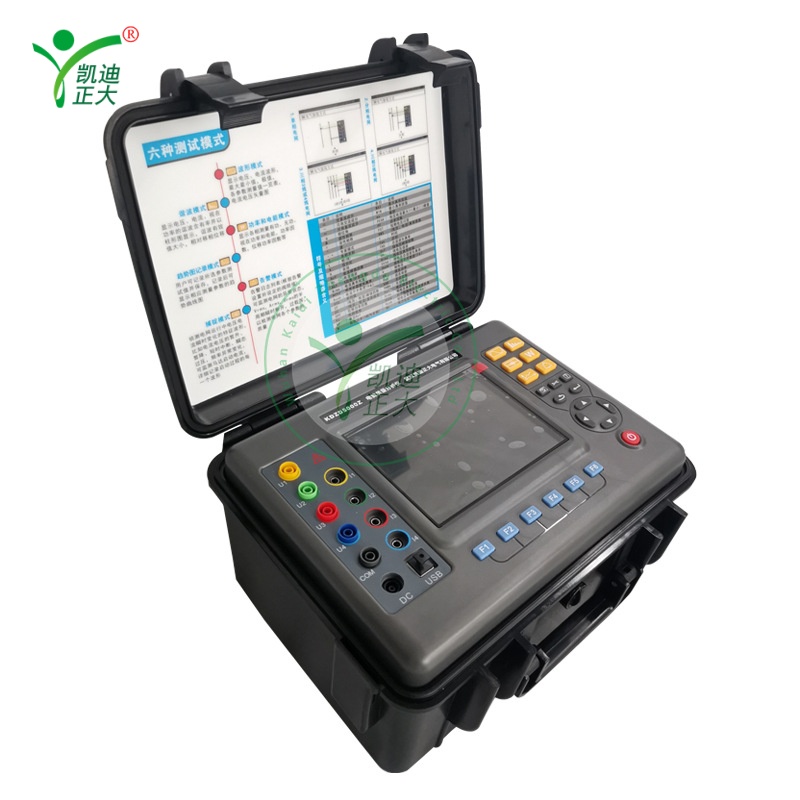

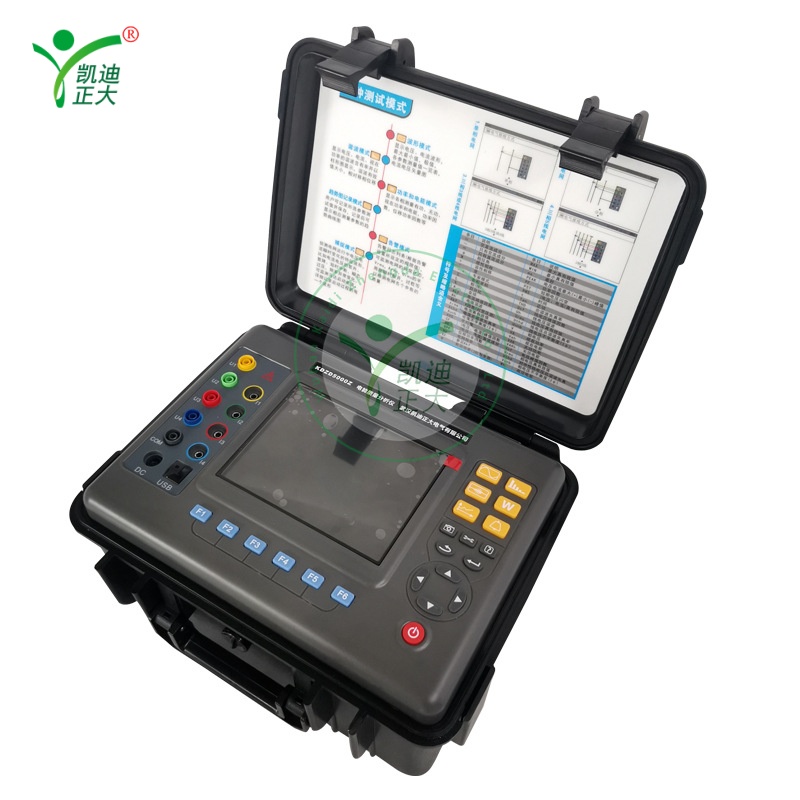

The KDZD5000Z is a portable, 4-channel power quality analyzer with a rugged case design. It features a DSP+ARM dual-core processor for high-speed data acquisition and processing, supporting up to 1MSPS sampling rate for precise transient detection. The 5.6-inch color LCD (640×480) provides clear waveform, phasor, and harmonic bar graph displays. It offers 2G of internal storage for up to 300 days of trend recording, 150 transient waveform captures, and 12,800 alarm logs. With USB communication and bilingual (Chinese/English) menus, it is a versatile tool for comprehensive power quality analysis.

Features:

Supports up to 50th harmonic analysis and total harmonic distortion (THD) calculation for voltage and current.
Captures transient events including voltage sags, swells, interruptions, and inrush currents up to 100s.
Enables long-term trend recording of 123 electrical parameters with configurable 5-second intervals.
Provides configurable alarm limits for 40 parameters, storing up to 12,800 alarm logs.
Allows screen capture of up to 60 test screenshots for documentation and analysis.
Features USB communication for real-time data transfer to PC-based monitoring software.
Supports bilingual (Chinese/English) operation menus and context-sensitive help.
Automatically enters power-saving mode after 15 minutes of inactivity to extend battery life.
Offers flexible current input options via clamp-on CTs or Rogowski coils for different ranges.
Calculates key power quality indices including K-factor, DPF, PF, and flicker (Pst, Plt).

Parameter:

Measurement Channels: 4 voltage, 4 current
Voltage Range: 1.0V~2000V (line voltage), 1.0V~1000V (phase voltage)
Current Range: 10mA~6000A (via clamp-on CTs or Rogowski coils)
Frequency Range: 40Hz~70Hz
Sampling Rate: Up to 1MSPS
Display: 5.6-inch color LCD (640×480 pixels)
Storage: 2G internal memory for 300 days of trend data, 150 transient captures, 12,800 alarms
Battery: 9.6V rechargeable Li-ion, ≥8 hours operation
Operating Temp: -10°C~40°C
Relative Humidity: <80% (non-condensing)
Dimensions: 272mm × 482.5mm × 51.6mm (display); 116mm × 88mm (main unit)
Weight: ~10.8kg (total with packaging)
Accuracy (Voltage): ±(0.5% reading + 5 digits) for 1.0V~1000V
Accuracy (Current): ±(0.5% reading + 5 digits) for 10mA~6000A
Accuracy (Frequency): ±0.01Hz
Harmonic Analysis: Up to 50th order, accuracy ±(1% + 2 digits)
Communication: USB for PC data transfer and remote monitoring
