KDZD5000P Power Quality Analyzer

Applications:

The KDZD5000P is ideal for on-site power quality testing of 50/60Hz grids, covering low-voltage transformer ratio/angle measurement, energy metering error correction, and harmonic monitoring. It suits power grid maintenance, industrial equipment debugging, and long-term user-end power quality assessment.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

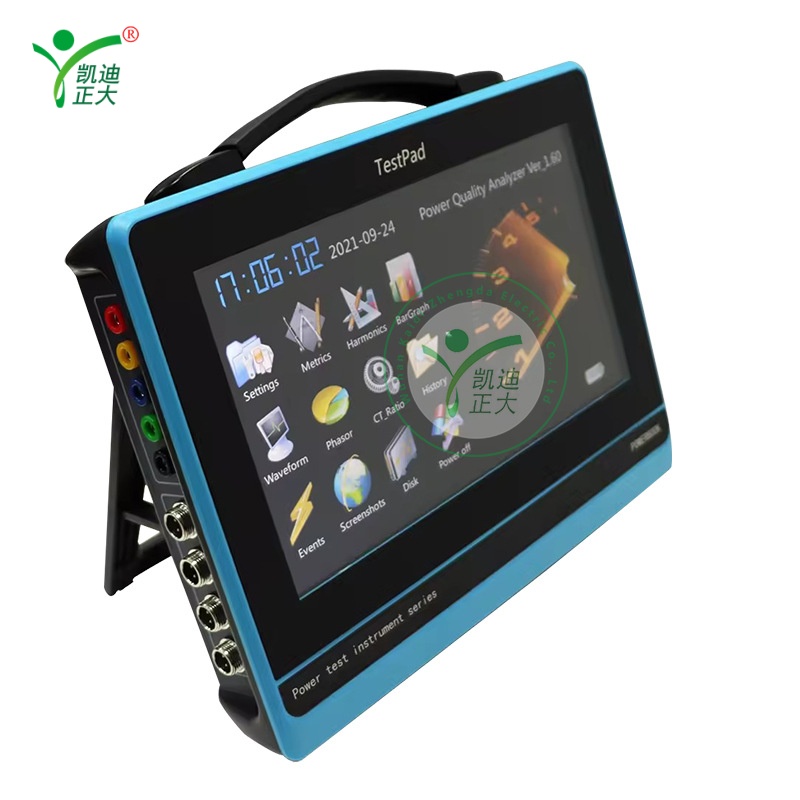

The KDZD5000P is a 4-channel power quality analyzer with a 10-inch color touchscreen. It supports simultaneous voltage/current measurement, harmonic analysis, and flicker testing, featuring large-capacity storage for 18+ months of continuous data logging for professional grid monitoring.

Features:

Automatically identifies 48 three-phase wiring modes for quick error correction.
Built-in transient event recording function for voltage surge/dip capture.
Real-time waveform display and scaling for intuitive distortion analysis.
Hexagonal vector diagram function for metering and protection loop checks.
Harmonic compliance query function against national standards.
Supports mouse operation for flexible user habits adaptation.
Configurable storage interval (1s–1000min) for customized monitoring.
Optional large clamp meters for extended current measurement range.

Parameter:

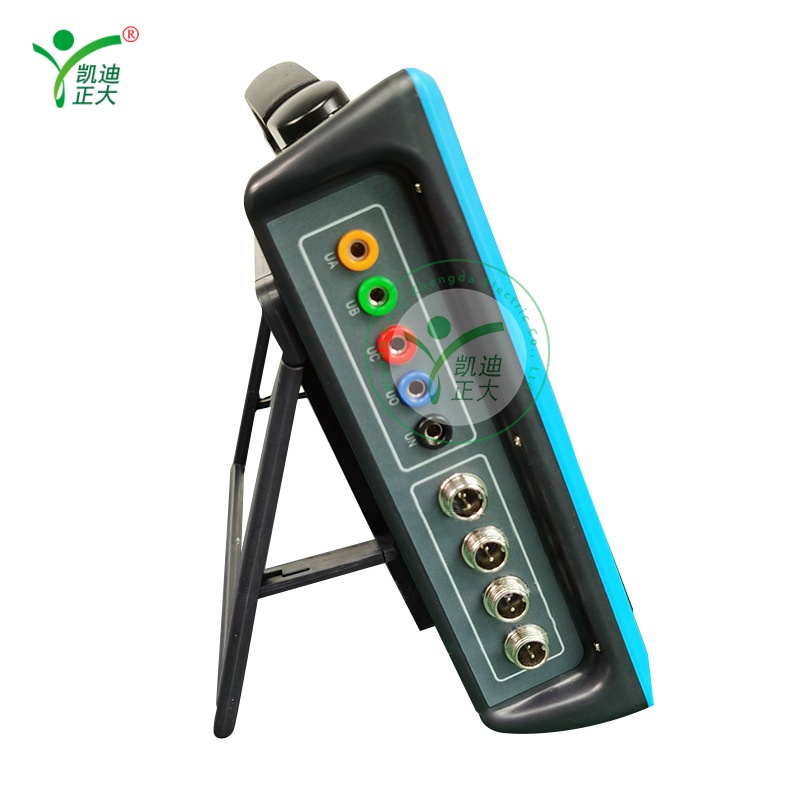

Measurement Channels: 4 voltage channels, 4 current channels
Voltage Measurement Range: 0–900V
Current Measurement Range: Small clamp (8mm): 0–5A/25A (standard); Medium clamp (50mm): 10–100/500A (optional); Large clamp (125×50mm): 40–400/2000A (optional)
Phase Angle Range: 0.000–359.999°
Frequency Range: 42.5–69Hz
Resolution (Voltage): 0.001V
Resolution (Current): 0.0001A
Resolution (Phase Angle): 0.001°
Resolution (Power): Active 0.01W, Reactive 0.01Var
Resolution (Frequency): 0.0001Hz
Voltage RMS Accuracy: ≤0.1%
Current RMS Deviation: ≤0.3%
Phase Angle Error: ≤0.1°
Power Deviation: ≤0.5%
Frequency Measurement Accuracy: ≤0.01Hz
Harmonic Analysis Times: 2–64th order
Voltage Harmonic Deviation: >1% nominal: ≤1% reading; <1% nominal: ≤0.05% nominal voltage
Current Harmonic Deviation: >3% nominal: ≤1% reading + CT accuracy; <3% nominal: ≤0.05% current range
Voltage Unbalance Accuracy: ≤0.2%
Current Unbalance Accuracy: ≤0.5%
Long Flicker Measurement Time: 10 minutes
Short Flicker Measurement Time: 2 hours
Flicker Measurement Deviation: ≤5%
Display: 1280×800 color temperature LCD screen (10-inch)
Charging Power Supply: AC220V±15%, 45Hz–65Hz
Battery Working Time: ≥8 hours
Power Consumption: <4VA
Insulation: Voltage/current input to case: ≥100MΩ; Power input to case: 1.5kV AC (rms) for 1 minute
Operating Temperature: -10°C~50°C
Relative Humidity: 0–90% (no condensation)
Dimensions: 280mm×210mm×58mm (L×W×H)
Weight: 2kg
