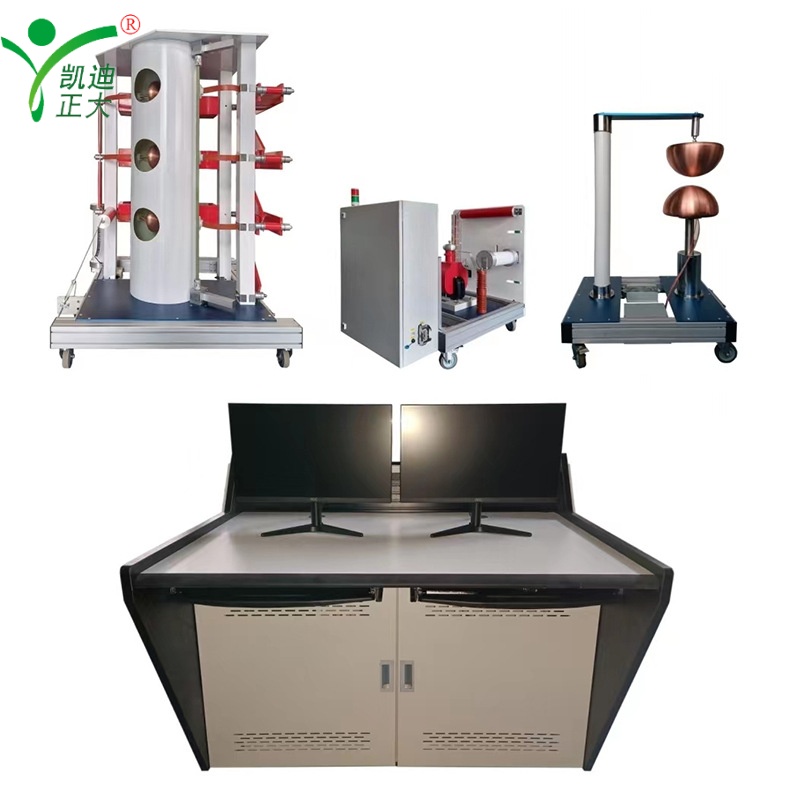

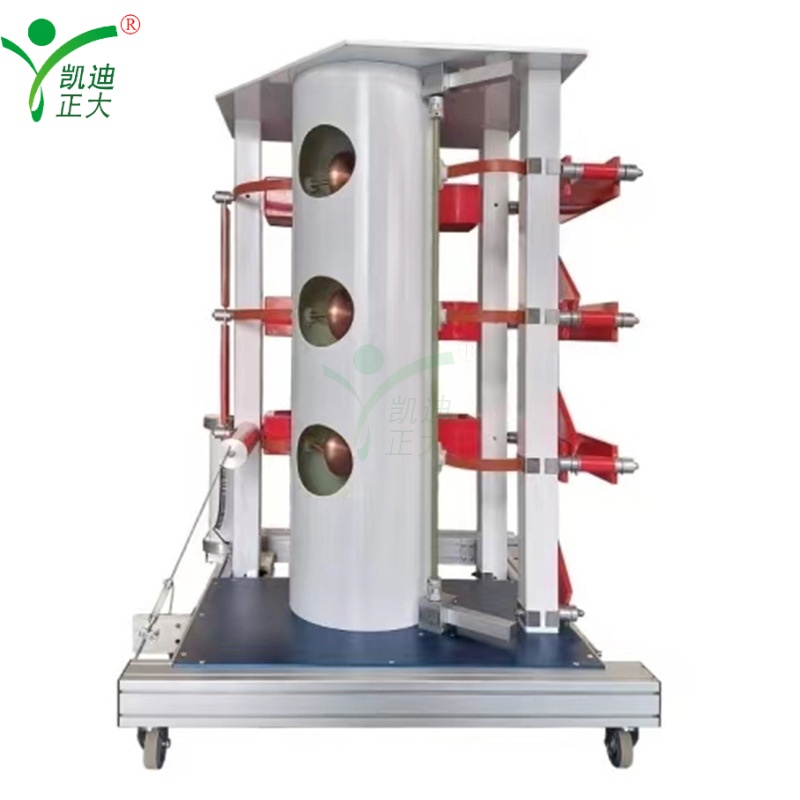

The main capacitor is a metal casing pulse capacitor with composite film oil immersed insulation, small size and light weight, and the inherent inductance of the capacitor is less than 0.2μH. Capacitor outlet bushing withstands vertical tension of 10Kg.
The modulated resistance is a plate structure, epoxy casting, non-inductive winding, the joints are spring crimped, easy to change, allowing multiple resistors to be used in parallel. The generator can be operated in series parallel easily and quickly by using the short circuit rod.
Automatic grounding system: the high voltage end of the capacitor has a set of automatic grounding device, when stop charging or press the emergency stop button, the automatic grounding system starts, and the main capacitor of the generator is automatically grounded through the discharge resistance.
One-side half-wave rectifier charging mode is adopted, and the charging voltage is 100kV. Manual and automatic control voltage regulation, from zero to 100KV continuous adjustable, ignition discharge instant charging power automatically off, to protect the safety of the charging transformer and voltage regulation system. Rectifier silicon pile, charging transformer, protection resistance and DC resistance voltage divider are installed on the body, constituting an integrated charging device for charging, rectifying and body, with simple and beautiful appearance.

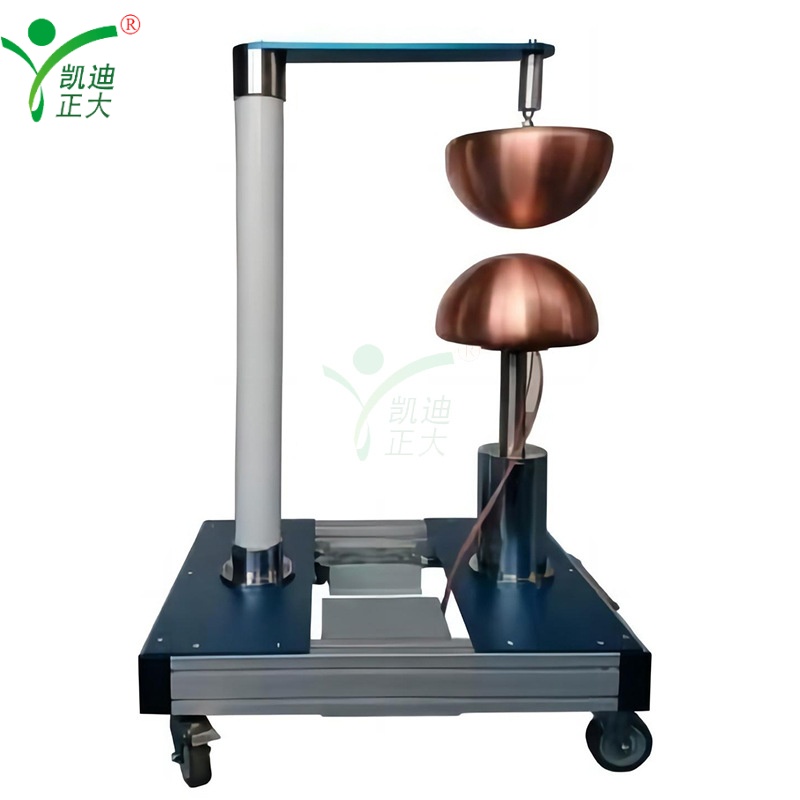

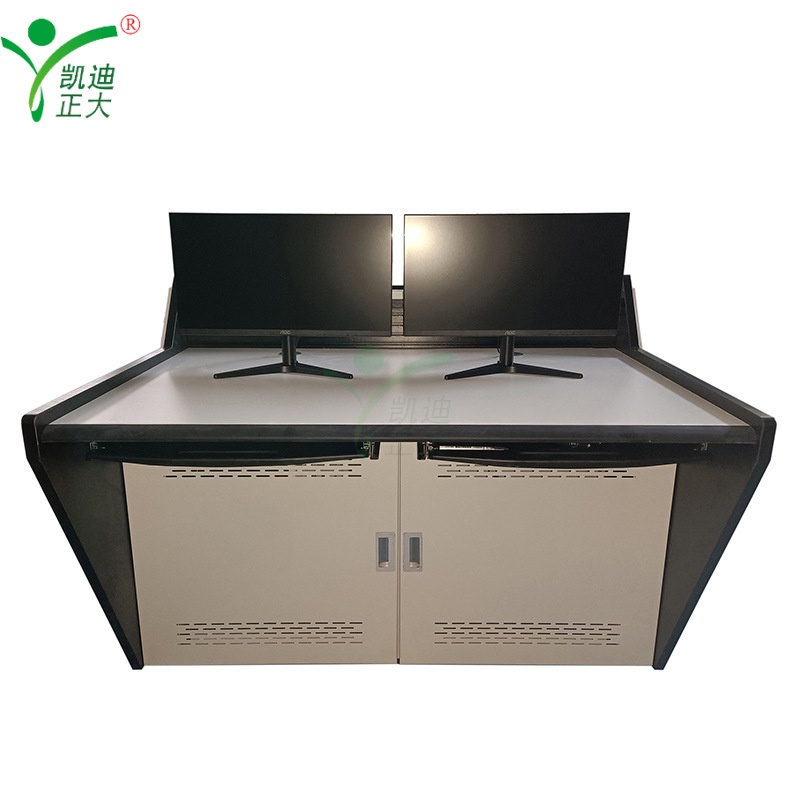

Industrial computer +PLC optical fiber control system, automatic control test.
Automatic polarity switching
Industrial computer and PLC use multi-mode optical fiber communication
The oscilloscope communicates with the computer by USB
The whole equipment is equipped with rigid grounding or electromagnet grounding system

Altitude: ≤1000m
Ambient temperature: -15℃ ~ +50℃
Relative humidity: ≤ 85% (20℃)
Use environment: indoor
Non-conducting dust
Ground resistance 0.5Ω
No fire or explosion risk
Earthquake resistance: Level 8 intensity
No gases containing corrosive metals and insulation are present
The waveform of the power supply voltage is the actual sine wave, and the waveform distortion rate is less than 5%
Seismic intensity: The basic seismic intensity value is 6 degrees.
Lightning impulse voltage output: 1.2μs (±30%) 50μs (±20%)
Voltage: Nominal voltage 20 ~ 200kV (±1%).

Spec	Application	Test
200kV5kJ	Without a cutoff device, an oscilloscope, or a data acquisition card	6-10kV level switches and insulators; lightning impulse voltage full-wave test, waveform 1.2/50µs.
200kV10kJ	Without a cutoff device, an oscilloscope, or a data acquisition card	6-10kV level switches and insulators; transformers and instrument transformers requiring no chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs
200kV10kJ	With cutoff device, Tektronix 1102 oscilloscope or data acquisition card	6-10kV level switches and insulators; transformers and instrument transformers requiring chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs; chopped wave 2-6µs
300kV7.5kJ	Without cutoff device, oscilloscope, or data acquisition card	10-35kV level switches and insulators; lightning impulse voltage full-wave test, waveform 1.2/50µs
300kV15kJ	Without cutoff device, Tektronix 1102 oscilloscope or data acquisition card	10-35kV level switches and insulators; transformers and instrument transformers requiring no chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs
300kV15kJ	300kV single-stage cutoff device, oscilloscope, or data acquisition card	10-35kV level switches and insulators; transformers and instrument transformers requiring chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs; chopped wave 2-6µs
300kV30kJ	300kV single-stage cutoff device, Tektronix 2012 oscilloscope or data acquisition card	10-35kV level switches and insulators; transformers and instrument transformers requiring chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs; chopped wave 2-6µs
400kV10kJ	Without cutoff device, oscilloscope	10-35kV level switches and insulators; lightning impulse voltage full-wave test, waveform 1.2/50µs
400kV20kJ	400kV single-stage cutoff device, oscilloscope	10-35kV level switches and insulators; transformers and instrument transformers requiring chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs; chopped wave 2-6µs
400kV20kJ	Without cutoff device, oscilloscope, or data acquisition card	10-35kV level switches and insulators; transformers and instrument transformers requiring no chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs
400kV30kJ	300kV single-stage cutoff device, oscilloscope	10-35kV level switches and insulators; transformers and instrument transformers requiring chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs; chopped wave 2-6µs
400kV40kJ	Without cutoff device, oscilloscope, or data acquisition card	10-35kV level switches and insulators; transformers and instrument transformers requiring chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs; chopped wave 2-6µs
600kV15kJ	600kV single-stage steepening device, data acquisition card	10-35kV level switches; insulators requiring steep wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs; steep wave
600kV30kJ	400kV single-stage cutoff device, oscilloscope	10-66kV level switches and insulators; transformers and instrument transformers requiring chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs; chopped wave 2-6µs
500kV30kJ	Single-stage cutoff device, oscilloscope
800kV20kJ		10-110kV level switches and insulators; transformers and instrument transformers requiring no chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs
800kV40kJ	Without cutoff device, oscilloscope	10-110kV level switches and insulators; transformers and instrument transformers requiring no chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs
800kV40kJ	800kV cutoff device, oscilloscope	10-110kV level switches and insulators; transformers and instrument transformers requiring chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs; chopped wave 2-6µs
800kV80kJ	800kV cutoff device, oscilloscope	10-110kV level switches and insulators; transformers and instrument transformers requiring chopped-wave test; lightning impulse voltage full-wave test, waveform 1.2/50µs; chopped wave 2-6µs
