| Category | Specification |
|---|---|
| AC Current Output | - Per phase: 0–30 A (RMS), ±0.2% accuracy - 3-phase parallel: 0–90 A (RMS) - Continuous per phase: ≤10 A - Max power per phase: 240 VA |
| AC Voltage Output | - Phase voltage: 0–130 V (RMS), ±0.2% - Line voltage: 0–260 V (RMS) - Phase power: 60 VA - Line power: 80 VA |
| DC Current Output | - Single phase: 0–±10 A, ±0.5% - 3-phase parallel: 0–±30 A |
| DC Voltage Output | - Phase: 0–±175 V, ±0.5% - Line: 0–±350 V - Phase power: 60 VA - Line power: 80 VA |
| Frequency Range | 20 – 1000 Hz |
| Harmonics | 2nd to 20th order (programmable amplitude & phase) |
| Digital I/O | - 8-channel isolated inputs - 4-channel isolated outputs |
| Auxiliary DC Power | Selectable +110V or +220V |

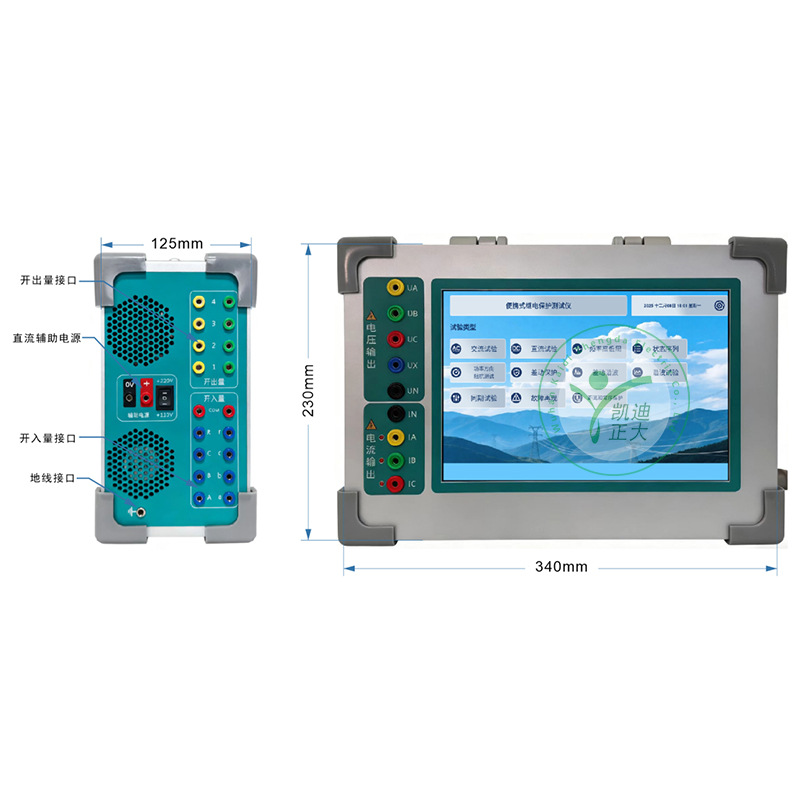

| Dimensions (L×H×D) | 340 mm × 230 mm × 125 mm |
| Weight | ≤7.2 kg |
