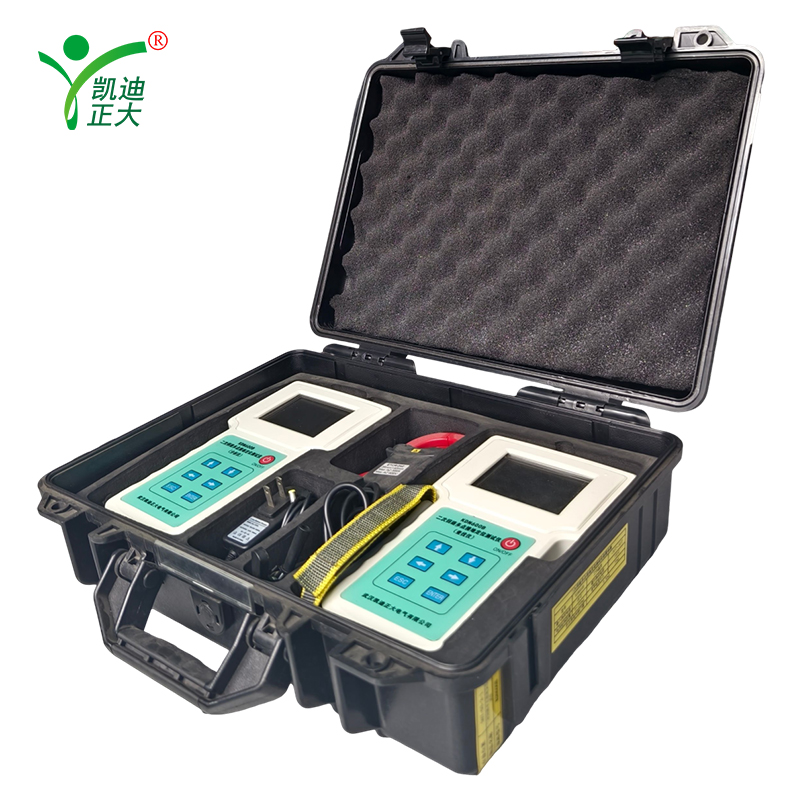

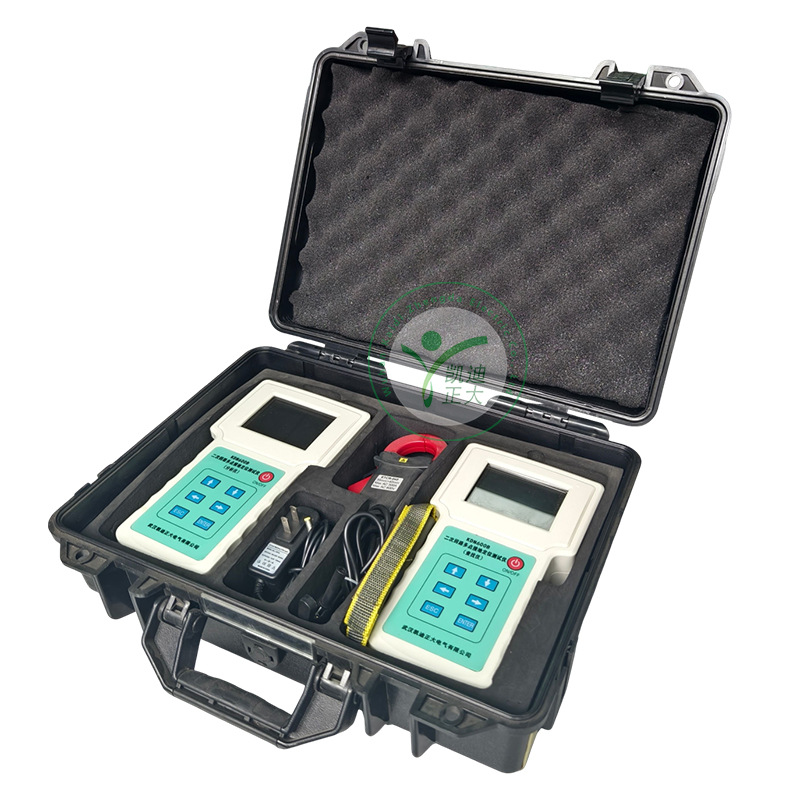

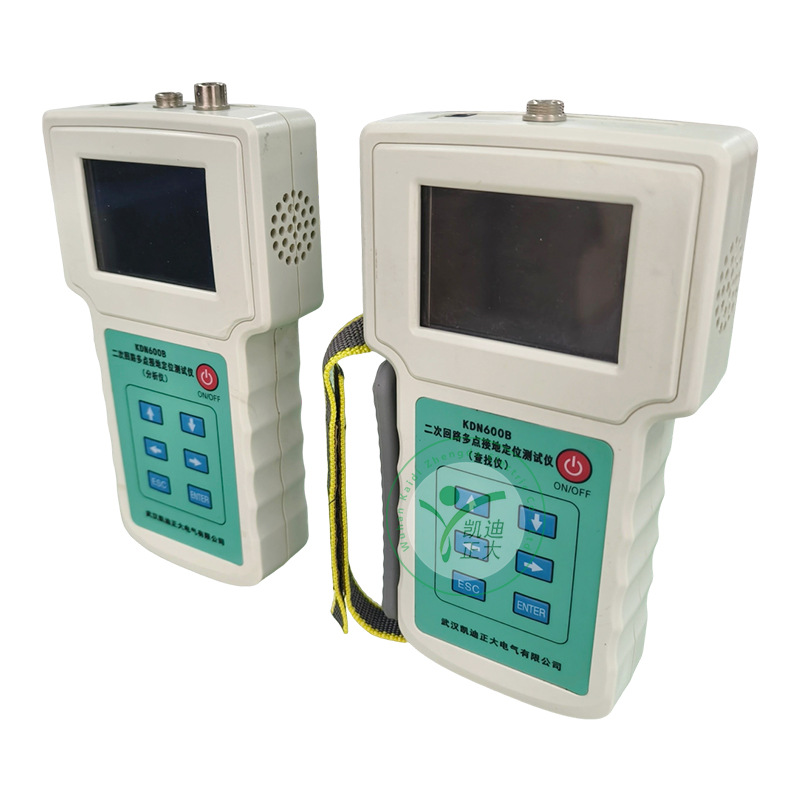

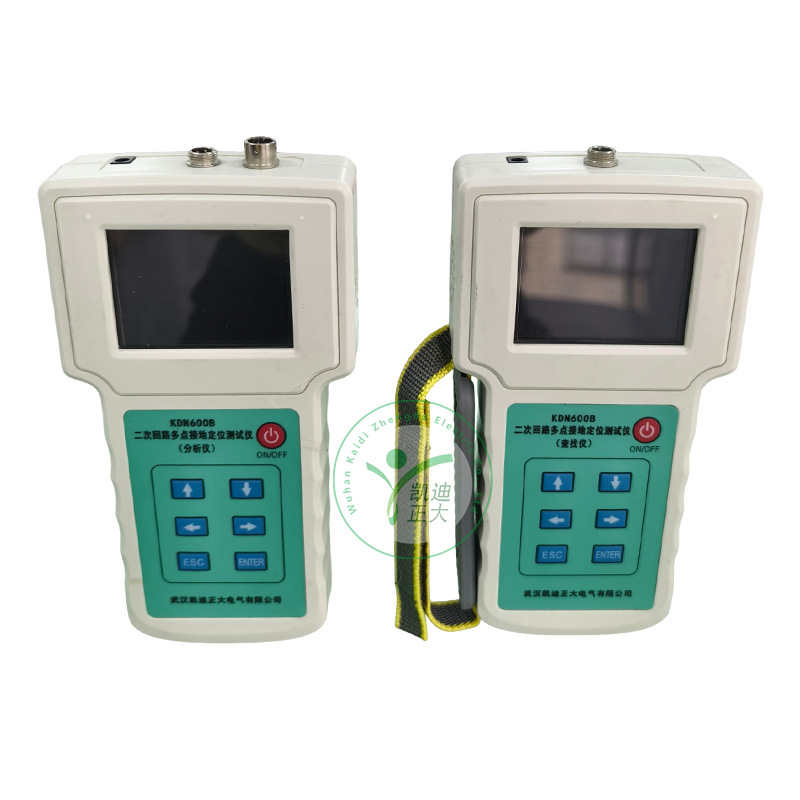

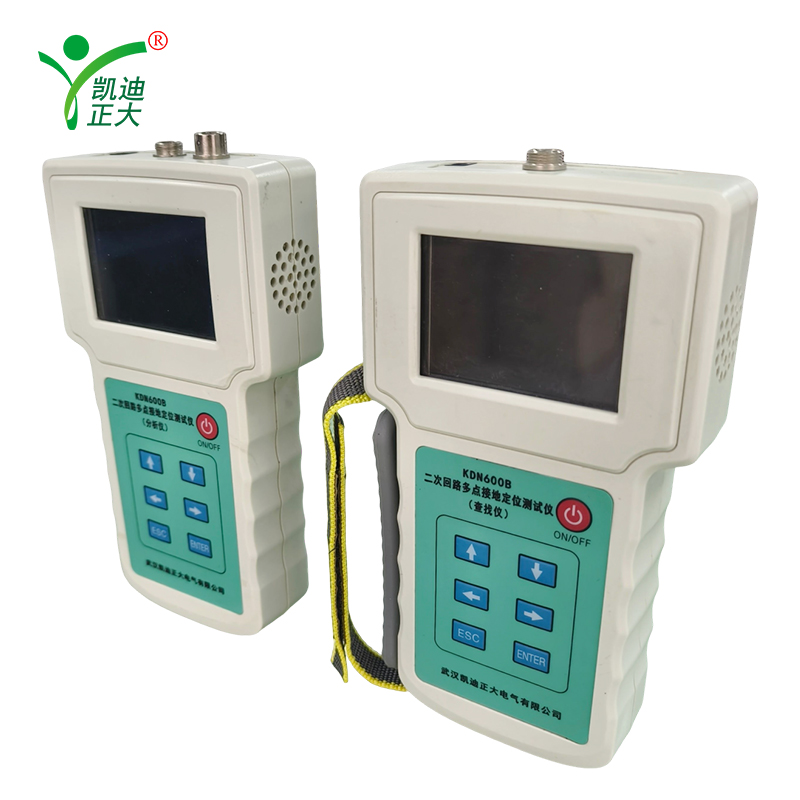

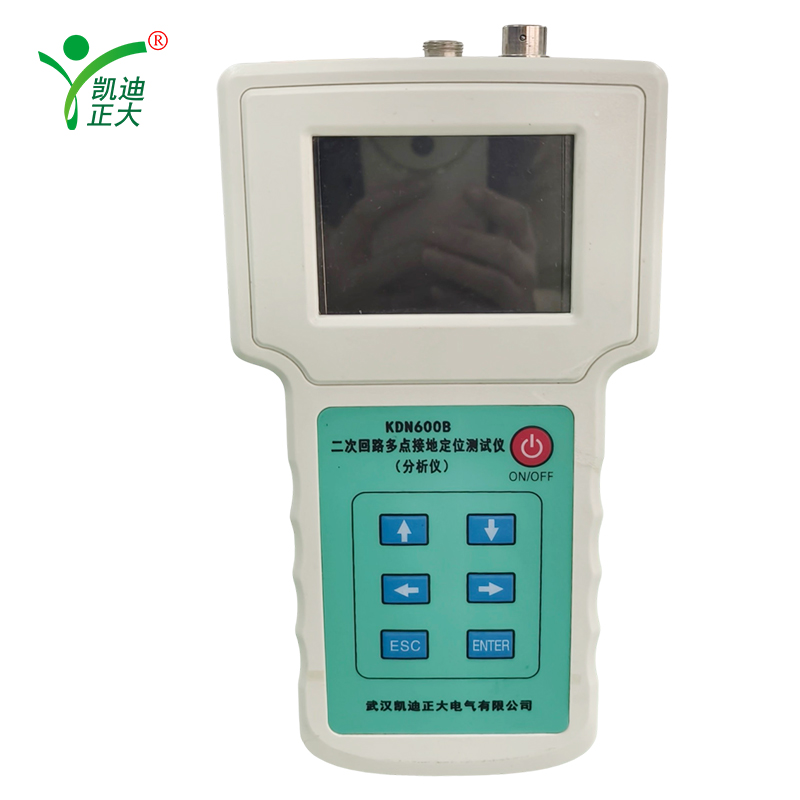

KDN600B Multi-point Ground Fault Locator for Secondary Circuits
KDN600B Multi-point Ground Fault Locator for Secondary Circuits

KDN600B Multi-point Ground Fault Locator for Secondary Circuits

Applications:

This locator is dedicated to detecting multi-point ground faults in the neutral common loop of PT/CT in three-phase four-wire power systems, widely applied in substations and power plants for troubleshooting and maintenance of secondary circuit grounding faults to ensure safe system operation.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDN600B Multi-point Ground Fault Locator for Secondary Circuits is a professional device for finding multi-point ground faults in power system common loops, it adopts low-frequency signal detection and high-precision clamp meters to accurately locate faults, features sound-light alarm and waveform display, and is compact for on-site use with no adverse system impact.

Features:

  1. Multi-point ground fault analysis function to judge faults in secondary circuit grounding systems via current analysis of other grounding loops
  2. Real-time current display function for signal current, ground wire shunt and shunt current of other grounding loops
  3. Waveform display function to show the signal current waveform of the tested loop during ground wire detection
  4. Fault direction display function to indicate the direction of multi-point ground fault points if detected
  5. High-precision AC/DC ammeter function with different types of matched AC/DC clamp meters
  6. Intelligent signal current generation with maximum power less than 0.05W to ensure DC system safety
  7. Ergonomic design with user-friendly man-machine interface, compact size and easy portability
  8. Industrial standard design with high-quality imported components for high device reliability
  9. Scientific production management to guarantee the high performance of the product

Parameter:

  1. Signal current: <150mA
  2. Current detection resolution: 0.1mA
  3. Multi-point ground fault judgment threshold: 0.5mA
  4. Multi-point ground impedance detection range: 0～1500Ω
  5. Anti-ground distributed capacitance: Single branch ≤100uF, total system capacitance ≤1000uF
  6. Current detection range: 0～200mA
  7. Multi-point ground fault direction display: Same direction / Reverse direction
  8. Single waveform display time: 12s
  9. Multi-point ground fault alarm mode: Sound and light alarm
  10. Ambient temperature: -30℃ ～ +50℃
  11. Relative humidity: ≤95%
  12. Total weight: 2.5kg
  13. Overall dimension (packing case): 450×260×110mm
