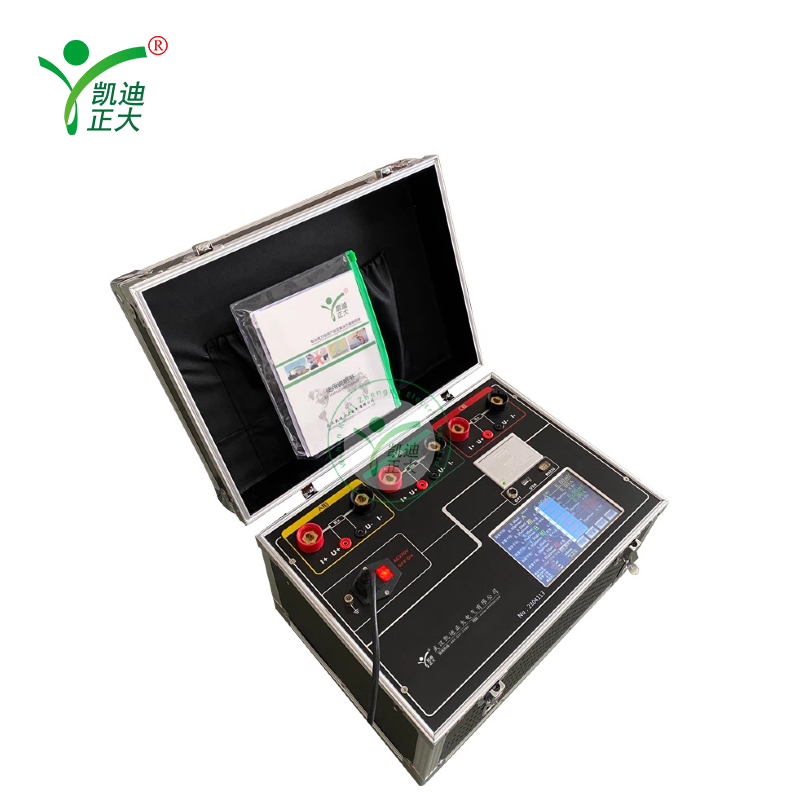

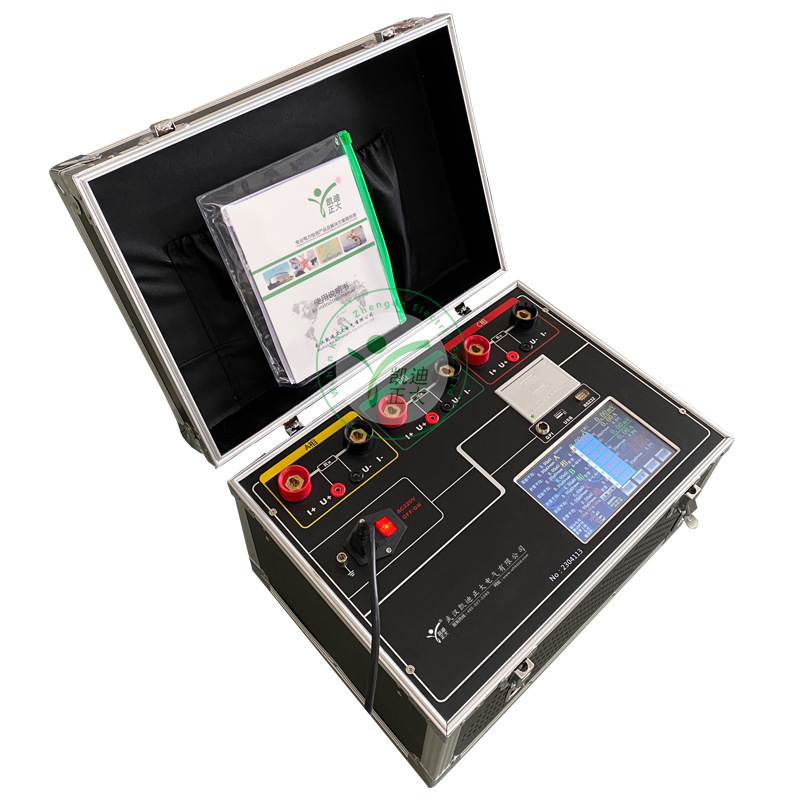

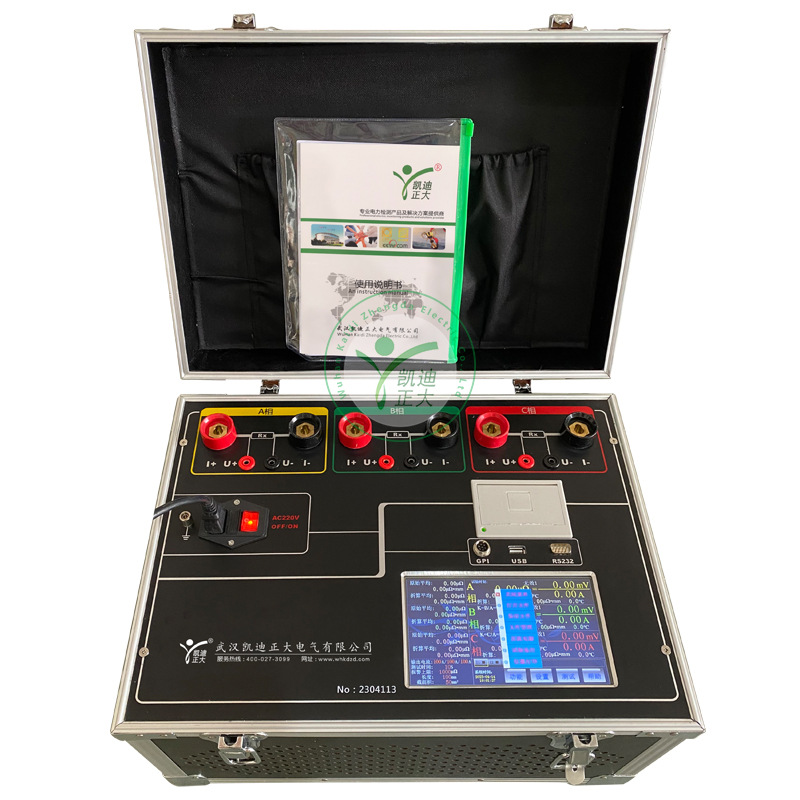

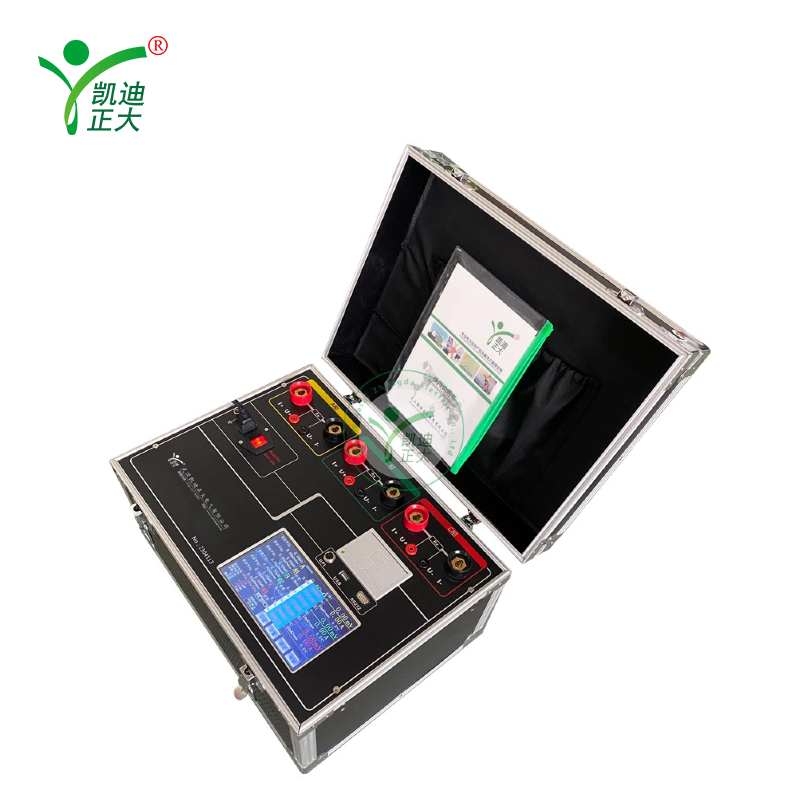

KDHL-SH Three-Phase Intelligent Loop Resistance Tester
KDHL-SH Three-Phase Intelligent Loop Resistance Tester

KDHL-SH Three-Phase Intelligent Loop Resistance Tester

Applications:

The KDHL-SH Three-Phase Intelligent Loop Resistance Tester is specialized for measuring contact resistance of high/low voltage switches, cables, wires and welds. Suitable for electrical equipment maintenance, power system detection and industrial quality control, also can be used as a DC constant current source for other tests.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDHL-SH Three-Phase Intelligent Loop Resistance Tester adopts advanced switching power supply technology and ARM chip, featuring high precision, strong anti-interference ability and multiple control modes, easy to operate with comprehensive protection functions.

Features:

  1. 7-inch 800×480 high-definition color touch screen, equipped with high-speed thermal printer for convenient data viewing and printing.
  2. Multiple current gear outputs (customizable), supports 1-3 current settings and automatic average calculation for accurate measurement.
  3. Displays resistance, voltage, current, resistivity and converted resistance at standard temperature, with automatic over-limit alarm.
  4. Supports long-time testing (0-9999S) with built-in cooling system and automatic thermal protection of switching power supply.
  5. Mass data storage with power-off protection, supports U disk export (Excel format) and Bluetooth/serial port data transmission.
  6. Equipped with DC constant current source function, realizing step-up current test for multi-purpose use.
  7. Supports mobile phone (Bluetooth APP) and computer (Modbus-RTU protocol) control, enabling remote operation and report generation.
  8. Optional temperature sensor, wireless remote control and line control operation for diverse application scenarios.

Parameter:

  1. Current range: 50A-600A (customizable up to 5000A), support 1-3 current gears selection.
  2. Measurement range: 0-19999μΩ (expandable), accuracy: 0.5%rdg±10dgt, resolution: 0.01μΩ.
  3. Working power supply: AC 220V±10%, 50Hz±2%.
  4. Instrument dimensions: 450mm×250mm×220mm (100A model); 450mm×250mm×280mm (200A model).
  5. Weight: 9.9kg (100A model); 12.9kg (200A model).
  6. Operating temperature and humidity: -25℃~50℃, ≤90%RH.
  7. Communication interfaces: RS232 (optional RS485), USB, Bluetooth (standard configuration).
  8. Test time setting range: 1-9999S, resistance upper limit setting range: 0-999999μΩ.
  9. Temperature compensation: preset or real-time measurement (with optional temperature sensor), automatic conversion to standard temperature resistance.
  10. Cross-section and length setting: supports resistivity calculation with adjustable parameters.
