Profile:

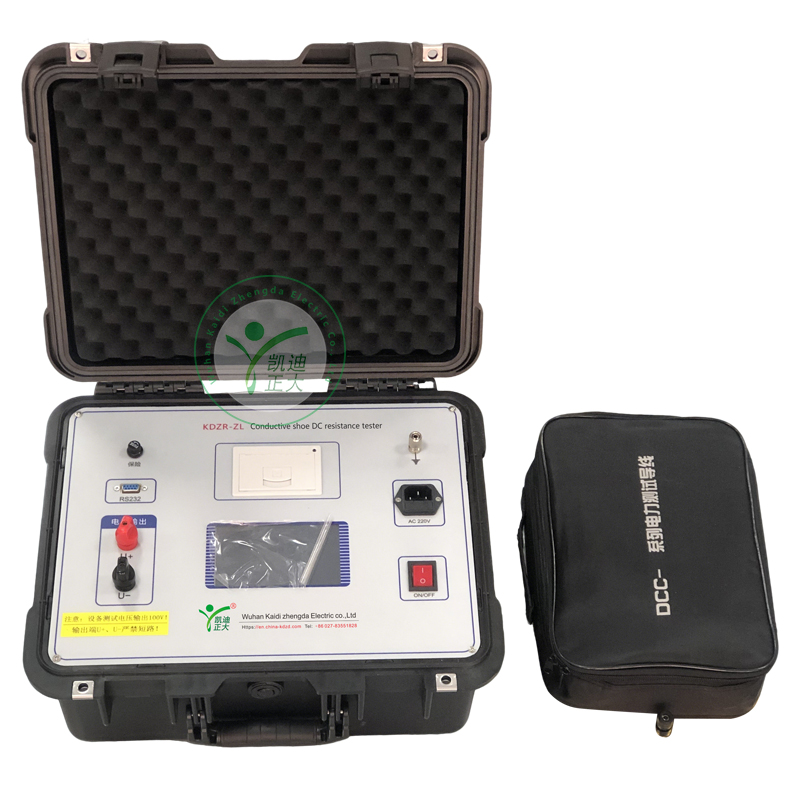

The KDZR-ZL conductive shoe DC resistance tester is used to measure the resistance of conductive shoes in power safety tools. The preventive test is mainly conducted to discover the hidden dangers of conductive shoes. According to the requirements of GBT 6568-2008 Shielding Clothing for Live Working and DLT 976-2017 Preventive Testing Regulations for Live Working Tools, Devices and Equipment, the resistance of conductive shoes shall not exceed 500 Ω. Not only must the manufacturing plant be inspected according to this standard before leaving the factory, but it can only be shipped after passing the inspection. Regular inspections must also be carried out according to this regulation during actual use, and only after passing the inspection can it be worn.
Features:
Features
1. A high-precision microcontroller system synchronously collects voltage and current, with high accuracy in testing data;
2.20 Ω~999.9k Ω wide resistance measurement range;
3. Display resistance, current, and test voltage, and simultaneously determine the qualification of the test sample;
4. Equipped with short-circuit protection function and short-circuit warning prompt;
5. Small size and light weight;
Parameter:
Main technical parameters
1. Measurement range: 20 Ω~999.9k Ω;
2. Test voltage: 100V
3. Test power: within 20W;
4. Measurement accuracy:
0.02KΩ~1KΩ：2.0%RD+0.2%FS； 0.001KΩ
1KΩ~20.0KΩ： 1.0%RD+0.2%FS； 0.1KΩ
20KΩ~999.9KΩ：2%RD+0.2%FS； 0.1KΩ
5. Resolution: Current: 0 1mA; Voltage: 0.01V;
6. Working environment: Temperature: 0~50C; Humidity:<85%;
7. Power supply mode: AC 220V, 50HZ;
8. Weight: less than 4.0kg;
9. Size: 320mm * 280mm * 150mm
