Profile:
Overview

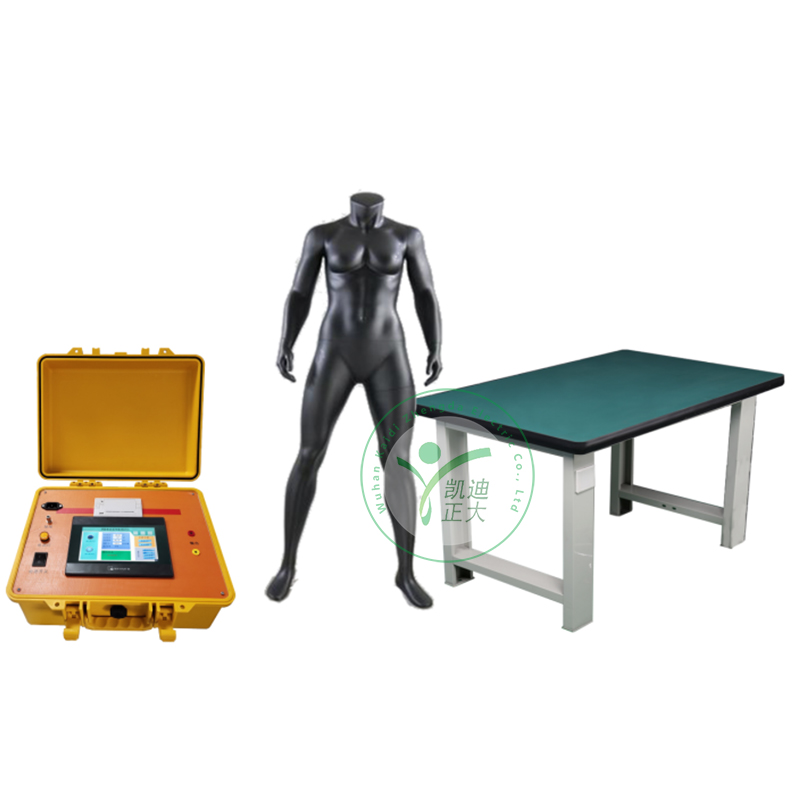

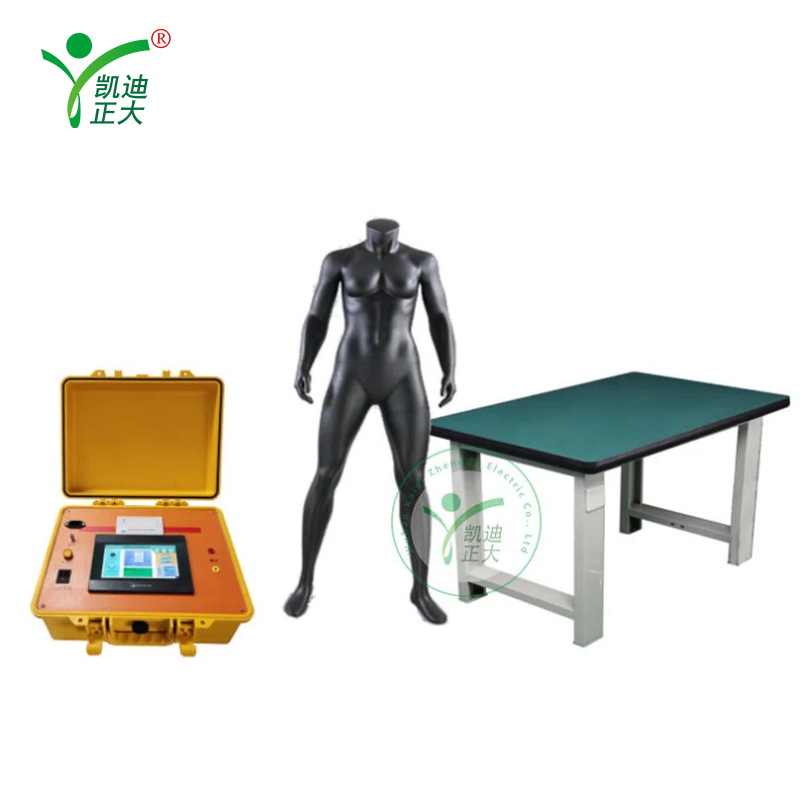

The KDZD902 shielding suit resistance tester is a product for the factory tests, handover tests and preventive tests of semi-finished and finished shielding suits by power departments. It can effectively detect manufacturing defects such as material selection, workmanship, loose connection parts, missing strands and broken wires of shielding suits, as well as potential hazards after they are put into operation. In order to meet the need for rapid resistance measurement, our company has developed a shielding suit resistance tester by taking advantage of its own technological superiority. This instrument adopts new power supply technology and features small size, light weight, large output current, wide measurement range, digital display and internal lithium battery power supply. The whole machine is controlled by a single-chip microcomputer and automatically completes functions such as self-check, data processing and display. It also has the functions of automatic discharge and discharge indication. The instrument has high testing accuracy, is easy to operate and can achieve rapid measurement of direct resistance.
Features:
Performance characteristics
1.The instrument has a large output current and is lightweight.
2.The instrument offers 5 output current options, with a maximum output current of 10A.
3. The instrument has a wide measurement range, from 0 to 20kΩ.
4. It has a complete protection circuit, making its performance more reliable.
5. Powered by lithium-ion batteries, it is convenient for on-site operation.
6. The LCD prompt menu operation is convenient for use.
7. It is equipped with audio and LCD indicator discharge alarm, with clear discharge indication to reduce misoperation.
Parameter:
Technical indicators
1.Output current: 10A, 1A, 300mA, 100mA, 20mA
2. Range:
0 ~ 0.1Ω (10A)
0.03Ω to 6Ω (1A)
0.1Ω to 20Ω (300mA)
0.3Ω to 60Ω (100mA)
30Ω to 20kΩ (20mA)
3. Accuracy: 0.2%±2μΩ
4. Resolution: 0.1μΩ
5. Operating temperature: -20 to 40℃
6. Environmental humidity: ≤80%RH, no condensation
7. Working power supply: Lithium-ion rechargeable battery.
8. Charging power supply: SYB-L3S30 (12.6V - 3A)
9. Volume: Length 315mm, width 230mm, height 140mm
10. Net weight: 3.3kg
