Product Introduction
The surface resistance of the shielding suit for live-line work directly determines the level of electrostatic protection for the human body in the area of high electric field intensity. After being sweated and washed, the resistance of the shielding suit will change. When it exceeds a certain value, the protective effect will decline and it is no longer allowed to be used. The national standard and IEC standard are 1000mΩ.

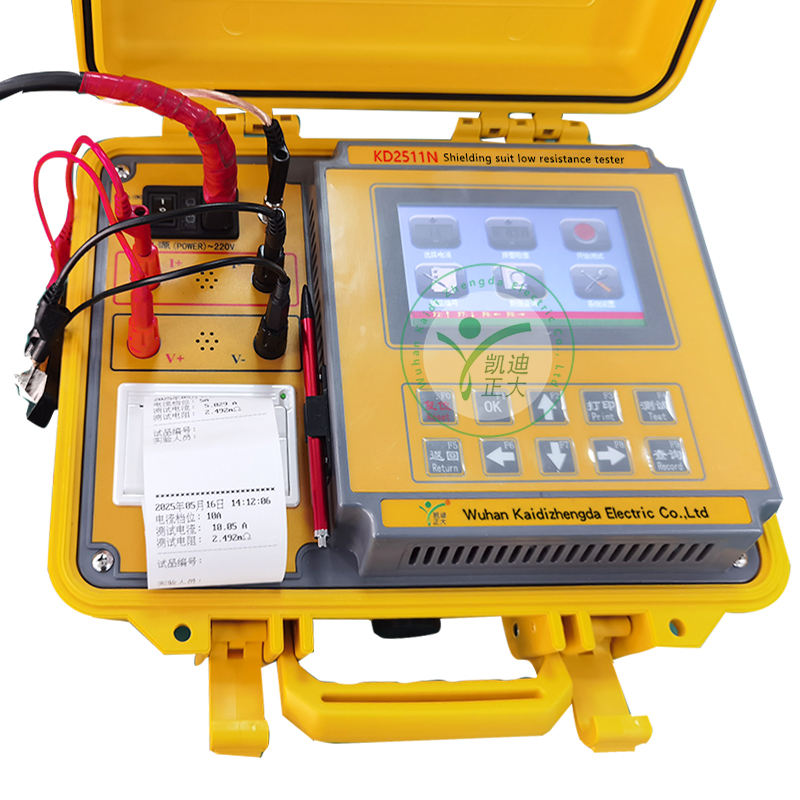

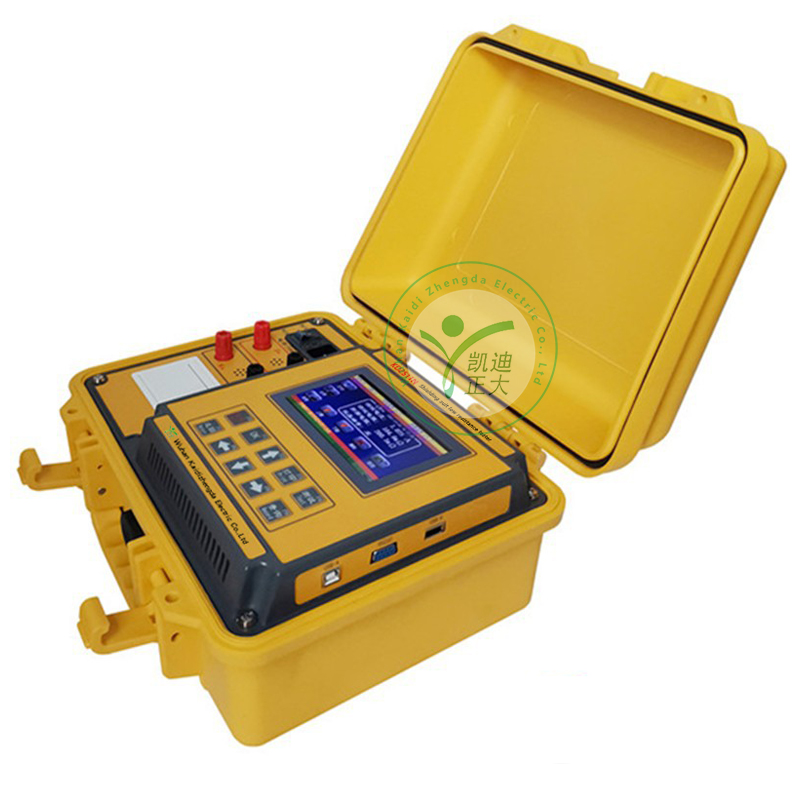

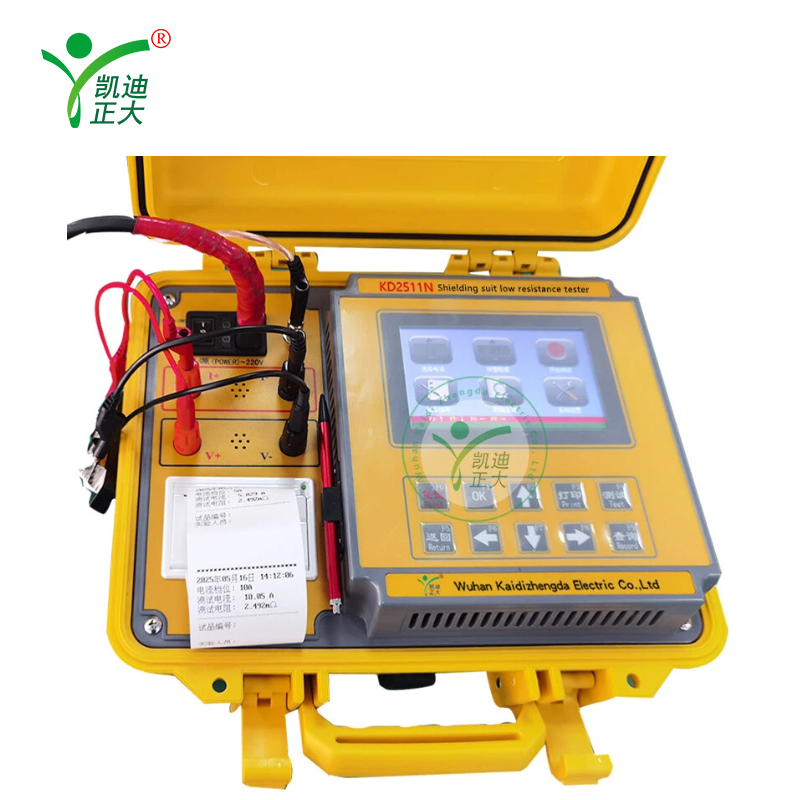

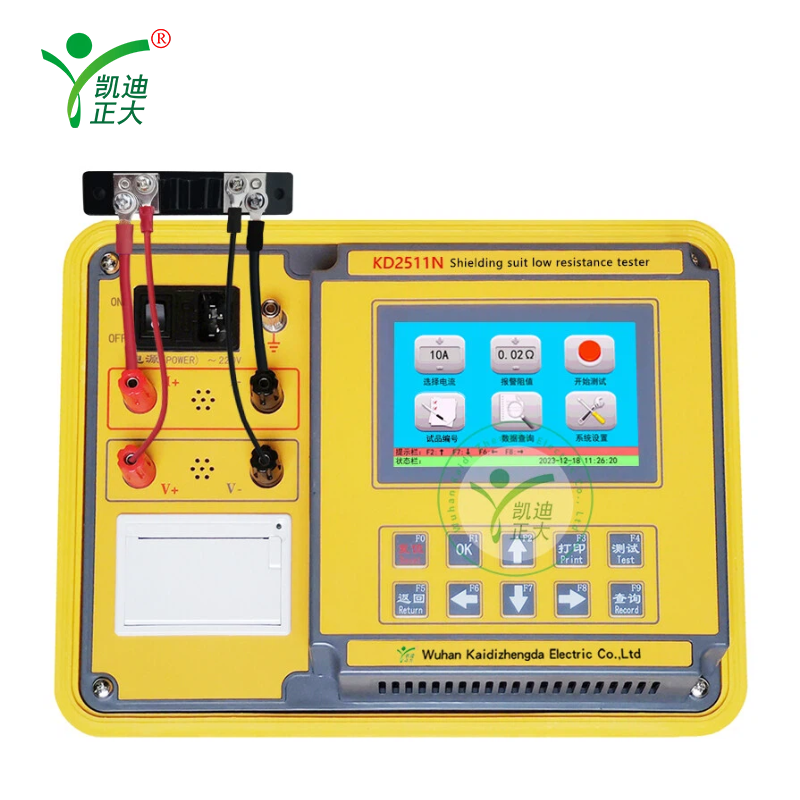

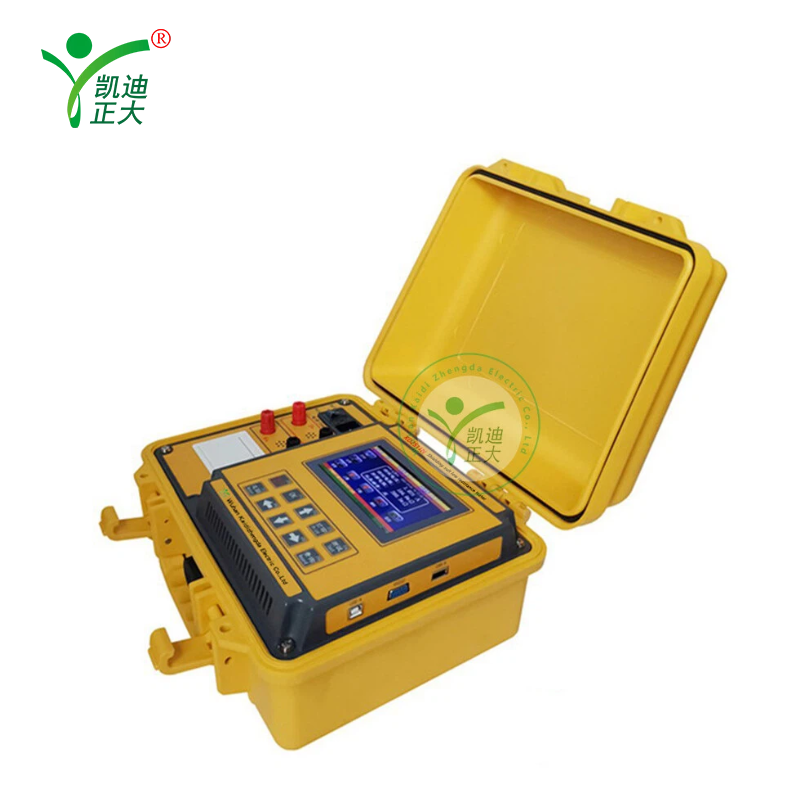

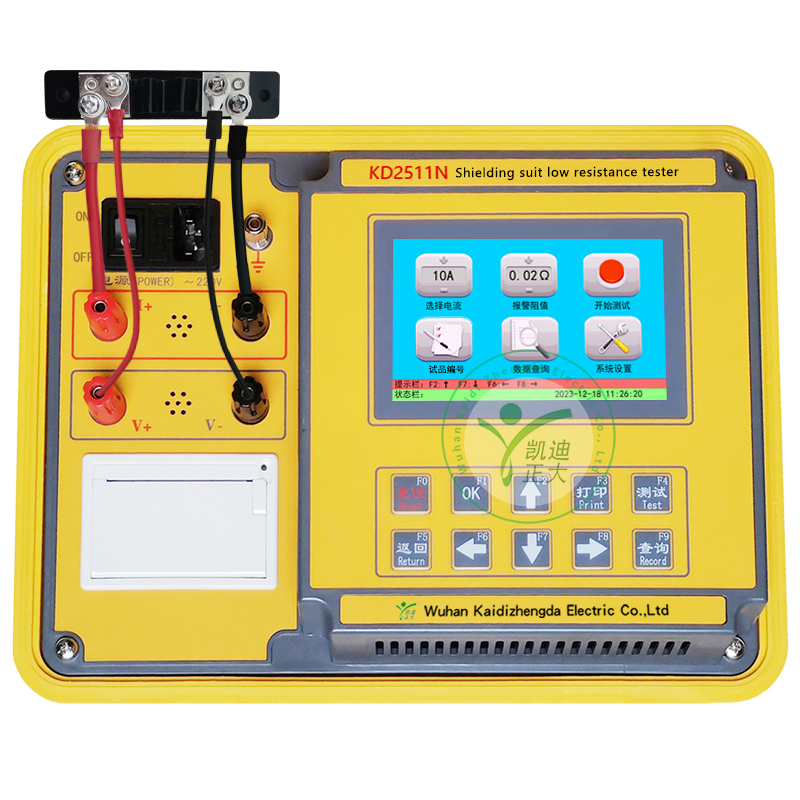

This measuring instrument is a dedicated device for measuring the surface resistance of shielding suits for live working. It is designed and manufactured in accordance with the national standard GB6568.2-2000 "Test Methods for Shielding Suits for Live Working". It can be used to check the surface resistance value of flexible surface materials such as fabrics and clothing, and is a commonly used device for live-line operation teams that need electrostatic protection operations.

This instrument is compatible with national standards and adopts a four-electrode structure. It measures the inter-electrode resistance by the current/voltage method based on the electrode structure.

Performance characteristics
The whole machine is controlled by a high-speed single-chip microcomputer, featuring a high degree of automation and easy operation.
2) Adopting new power supply technology, the current output is stable and the measurement range is wide.
3)480*270 true-color LCD touch screen, clear display in strong light, dual-purpose for touch screen and buttons.
4)RS232 (reserved) and USB interfaces, enabling communication with a computer and storage via a USB flash drive.
5) The protection function is complete and the performance is more reliable.
6) It features a fast response speed, stable measurement data, and automatic data refreshing during the testing process.
7) Intelligent power management technology effectively reduces the internal heat generation of the instrument and saves energy.
8) Non-volatile clock and non-volatile memory can store data for a long time.
9) Thermal printer, high speed, silent, can print test data at any time.
10) Three-dimensional appearance design, novel structure, conducive to heat dissipation.

Technical indicators
Current range and range
10A: 0-1.6Ω
5A: 0.03Ω to 3.2Ω
1A: 0.06Ω to 20Ω
200mA: 0.1Ω to 100Ω
40mA: 0.3Ω to 500Ω
<5mA: 100Ω to 50kΩ

Resolution: 0.1μΩ
Accuracy: 0.2%±2 digits
Store 1,600 pieces of data
Ambient temperature: -10℃ to 40℃
Relative humidity ≤80%RH, no condensation
Working power supply: AC220V±10%, 50Hz
