Profile:

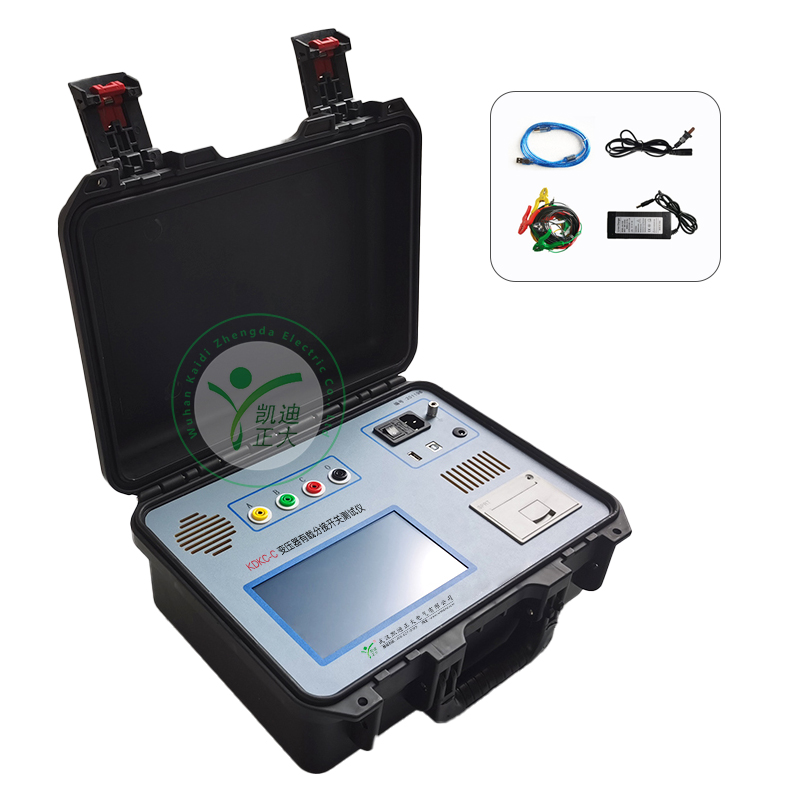

KDKC-C is a professional OLTC tester with multiple output current ranges for comprehensive switching analysis. It features a large 7-inch LCD display and intelligent protection circuitry, capturing switching waveforms at a 20kHz sampling rate and automatically adjusting the display scale. Supporting Yn, Y, and Δ transformer connections, it directly displays resistance without conversion, accurately measures switching parameters, and has built-in storage for 500 test records.
Features:
1. High output current (2.0A/1.0A/0.5A/0.2A), lightweight and portable, easy to use in the field;
2. Directly displays resistance values (no conversion required) for testing Yn, Y, and Δ type transformers;
3. Supports both winding and unwinding measurement modes;
4. Waveform display automatically adjusts resistance and time amplitude based on sampled values;
5. Comprehensive protection circuitry enhances reliability and safety;
6. Large 7-inch LCD screen for easy field operation;
7. Built-in high-capacity lithium battery (optional), allowing for field use without an external power supply;
8. Internal automatic storage of 500 sets of test data.
Parameter:
Output current: 2.0A, 1.0A, 0.5A, 0.2A
Measuring range
Transition resistance: 0.3Ω ~ 5Ω(2.0A); 1Ω ~ 20Ω(1.0A); 5Ω ~ 400Ω(0.5A); 20Ω ~ 100Ω(0.2A)
Transition time: 0 ~ 320ms
Open circuit voltage: 24V
Measurement accuracy
Transition resistance: ±(5% reading ±0.1Ω)
Transition time: ±(0.1% reading ±0.2ms)
Sampling rate: 20kHz
Storage mode: local storage
Dimensions: Host: 360*290*170 (mm) Cable box: 360*290*170 (mm)
Instrument weight: main machine 6KG cable box 4.5KG
Test line length: Standard 13m length can be customized
Conditions of use
Ambient temperature: -10℃ ~ 50℃
Ambient humidity: ≤85%RH
Working power supply: AC220V±10%
Power frequency: 50±1Hz
