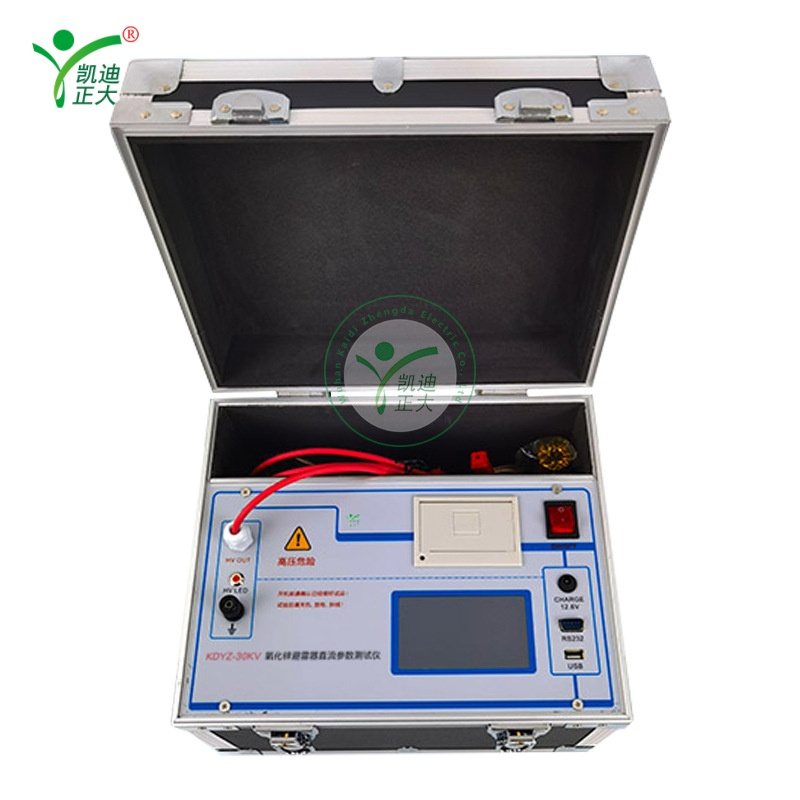

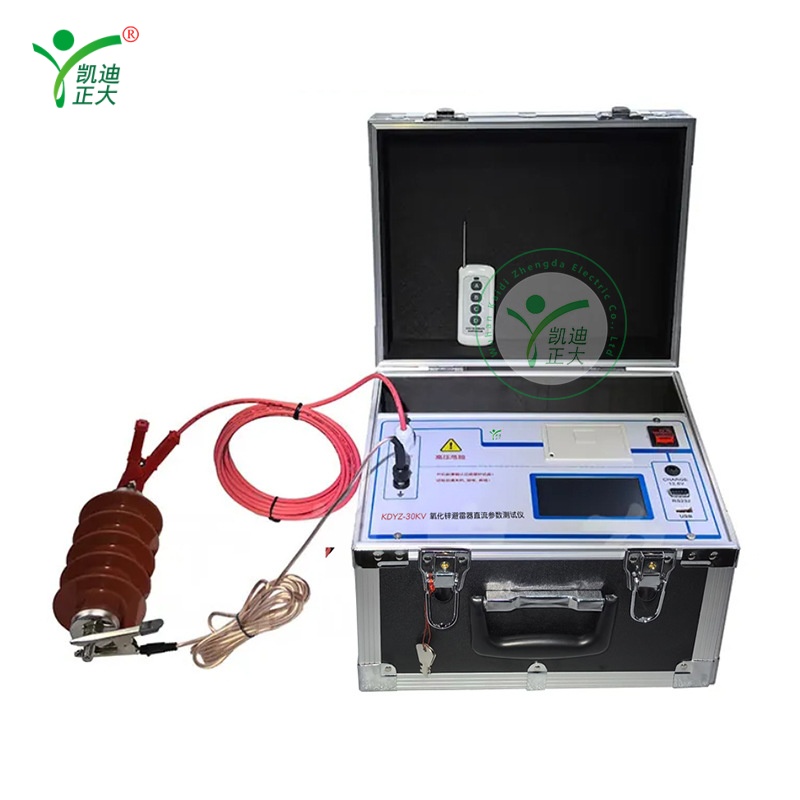

KDYZ-30kV zinc oxide arrester DC parameter tester is specially used to detect the internal defects of the non-gap zinc oxide arrester MOA valve with poor performance for 10kV and below power systems. According to the provisions of 16.1 in DL/T596-2021 Preventive Test Procedure for Power Equipment and GB /T 11032-2020 AC Gapless metal oxide Arrester, Before the annual thunderstorm season and when necessary, the power plant and substation should do the metal oxide arrester 1mA DC voltage (U1mA) and 0.75 U1mA leakage current detection. According to the measuring procedure, the ambient temperature and relative humidity during the test should be recorded. The instrument can automatically measure the ambient temperature and relative humidity.

The instrument combines DC high-voltage power supply, measurement and control system to reduce the volume and weight of the instrument. It is suitable for testing under various conditions such as substation, repair workshop, manufacturer and laboratory, etc. The instrument replaces the traditional heavy test instrument and test method, and is the commonly used equipment for on-site inspection of power system and zinc oxide arrester production plant.

The instrument can be operated by touch screen, remote control, mobile phone Bluetooth APP wireless operation, RS232/RS485 connection operation, external IO wire control operation and other measurement methods, with high flexibility.

1. One-key test: One-key automatic completion of the test, directly display the test results.
2. Color touch screen: 320×240 HD color touch screen, man-machine dialogue.
3. Built-in lithium battery: standard with high energy lithium ion battery, suitable for no power supply.
4. Built-in calendar clock: Built-in calendar clock provides time basis for printing and saving data.
5. Temperature and humidity test: high-precision display of the current temperature and humidity data.
6. Mass storage test data: The machine is equipped with mass storage, mass storage data. It has the function of data storage and data browsing, and the function of power failure protection.
7.U disk export test data: equipped with U disk export data function, export word file.
8. Bluetooth control and upload data: Standard Bluetooth function, equipped with Android Bluetooth APP, APP can be installed with mobile phone or tablet can test, stop, upload, share, Bluetooth printer (optional) print, generate word files.
9. Built-in training materials: The screen is equipped with various wiring methods to guide field use.
10. Chinese input test information: you can input relevant sites, equipment, personnel, remarks, etc., to facilitate the identification of test data, convenient identification and printing of test data.
11. Chinese-english switch: can directly switch the interface between English and Chinese, compatible with domestic and foreign use occasions (optional).
12. Thermal printer: on-site thermal printer printing test results, can also be optional external wireless Bluetooth printer.
13. Flexible communication: Optional serial port RS232 or RS485 MODBUS communication, optional Internet of Things MQTT test control upload.
14. High-speed sampling: high-speed sampling frequency, digital signal processing technology, strong anti-interference performance, high accuracy of measurement results.

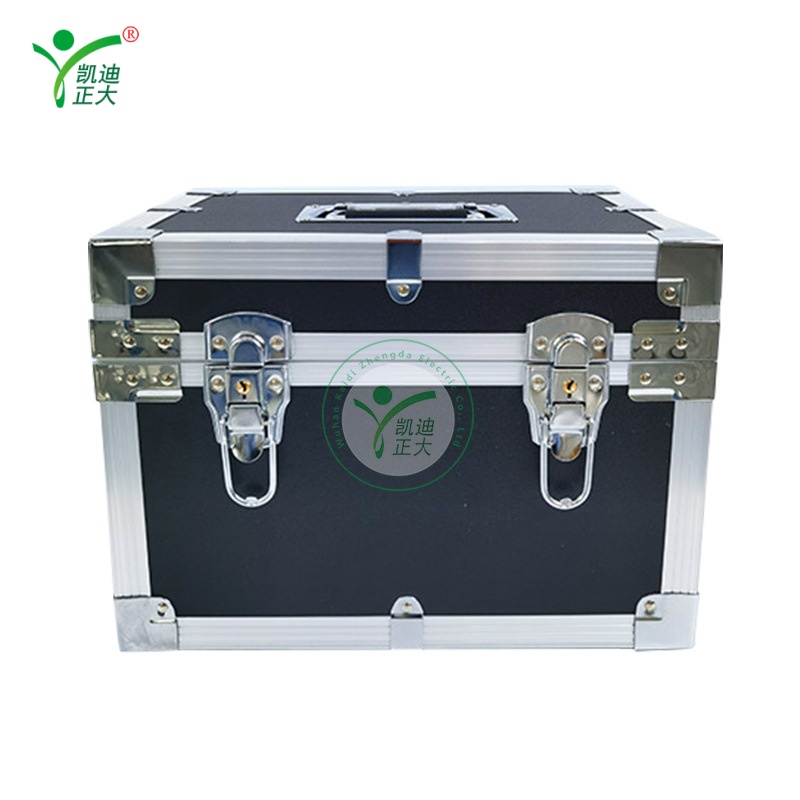

15. Easy to carry: The machine case is small in size, light in weight and easy to carry.
16. With optional function, the standard version does not have optional function, customers can customize according to demand.
Remote control: standard
Extended range: optional
Bluetooth control and upload: standard
RS232 MODBUS communication: Optional
Usb disk export data: standard
RS485 MODBUS communication: Optional
Lithium battery: standard
MQTT iot Communication: Optional
Discharge rod: optional
Wire control: optional
State network communication protocol: optional
English and Chinese: Optional
English: Optional

1. Measuring range: Voltage: 0 ~ 30kV (can be customized); Current: 0 ~ 1000μA (customizable); Ripple coefficient: ≤1.5%
2. Resolution: Voltage: 0.01kV Current: 0.1μA
3. Accuracy: Voltage: 5%rdg±10dgt Current: 5%rdg±10dgt
4. Power supply: Rechargeable lithium battery (charger: AC220V/50Hz input 12.6V output). Charging time: 2-3 hours, use time: ≥4 hours
5. Remote control effective distance: 120M
6. Ambient temperature: -10℃ ~ 50℃
Seven. Relative humidity: ≤ 85% at 25℃
8. Altitude: < 1000M
9. Battery capacity: 12.6V/4000mAH.
10. Instrument shape: 320mm×270mm×230mm.
11. Weight: 4.8kg.
