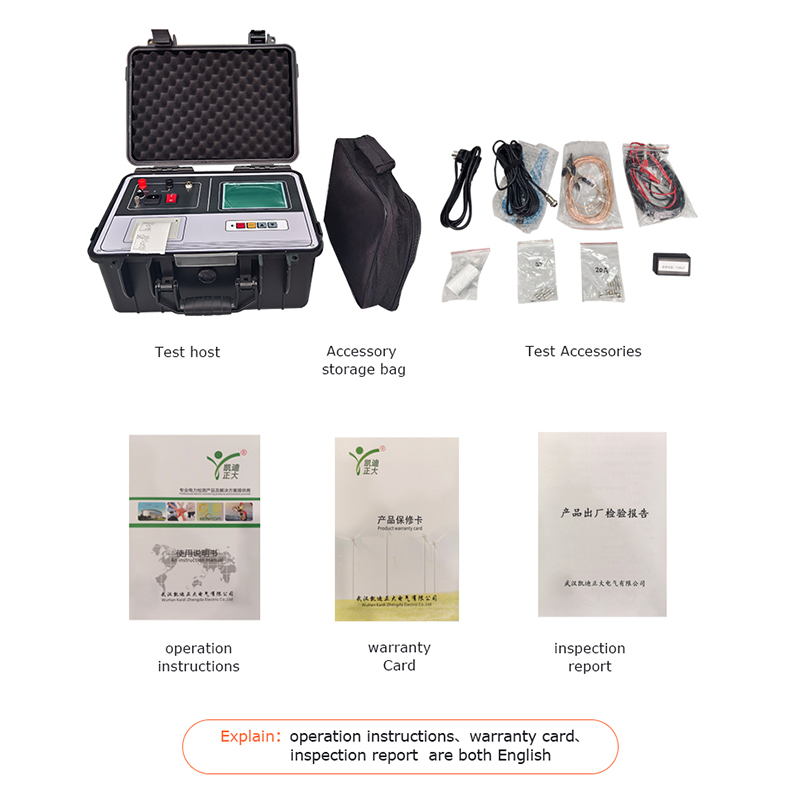

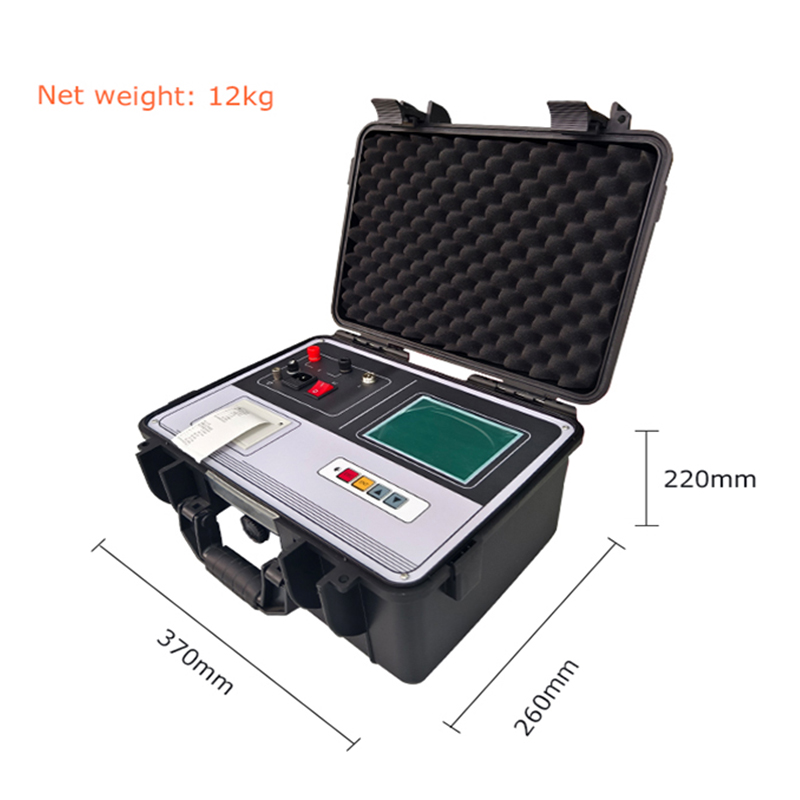

KDZD automatic capacitance and inductance tester is specially developed for the problems existing in the field measurement of capacitor capacitance value in substation. It focuses on solving the following problems:

(1) On-site measurement of capacitors needs to remove the connection line, which is not only a large workload but also easy to damage the capacitor.
(2) The capacitor meter output voltage is low, resulting in low fault detection rate. The instrument has the characteristics of small measurement workload, fast and simple, stable performance, accurate measurement and high fault detection rate.
(3) Measure the inductance of the reactor.

Technical parameter

1, instrument measurement range and accuracy: a. capacitance measurement
(1) Measurable capacitance range: 0.1μF ~ 3,300μF
(2) Measurable capacity range: 5 ~ 20,000kvar
(3) Measurement precision: ±(1.0% reading +0.02μF)
(4) Resolution: 0.001μF b. Current measurement
(1) Current measurement range: 0 ~ 20A
(2) Measurement precision: ±(3.0% reading +0.05A)
(3) Resolution: 0.01Ac. Inductance measurement
(1) Inductance measurement range: small inductance mode 0.1mH ~ 5mH; Large inductance mode 5 mH ~ 100H
(2) Inductive reactance measurement range: 50mΩ~20KΩ
(3) Measurement precision: ±(3.0% reading +0.05mH)
(4) Resolution: 0.01mH d. Resistance measurement
(1) Resistance measurement range: small resistance mode 50mΩ ~ 1ω;
(2) Measurement accuracy: ±(3.0% reading +0.05Ω)
(3) Resolution: 0.01Ω
2, working power supply: a. Rated voltage: power frequency 220V±10% b. Rated frequency: 50Hz c. Rated output: 2V/20V/500VA
3, harmonic adaptation: ≤ 3%
4, the normal working conditions of the instrument: a. ambient temperature: -10℃ ~ +50℃ b. Relative humidity: ≤90%
