Profile:
KDZD Transformer Core Grounding Current Tester is a tester specifically designed for measuring transformer core grounding current, featuring a wide measurement range (0-10000mA) and high resolution (0.0001mA). It is equipped with a 3.5-inch true-color LCD touchscreen, supporting both button and touch control modes. Built-in non-volatile memory stores 400 data sets, and a high-capacity lithium battery provides over 8 hours of standby time. Its compact and lightweight (0.5kg) design makes it ideal for field use.
Features:
1. Wide measuring range (0-10000mA), 0.0001mA high resolution, 5 significant digits;

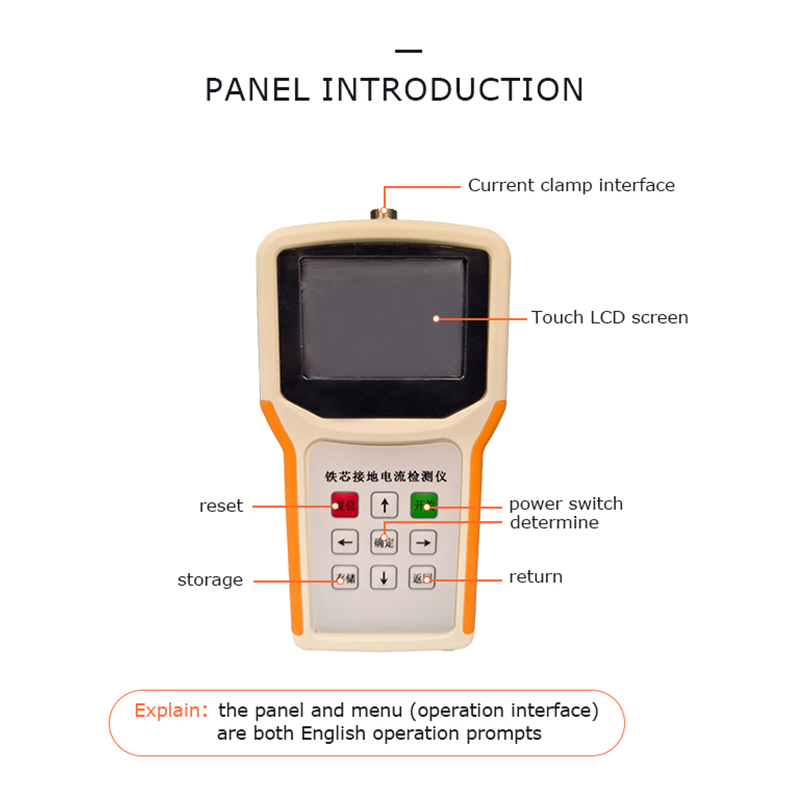

2. Dual control modes: physical buttons and intelligent touchscreen operation;
3. 3.5-inch 320*240 true-color LCD touchscreen, user-friendly interface;
4. Built-in large-capacity non-volatile memory, capable of storing up to 400 sets of test data;
5. High-precision real-time clock with date and time display;
6. USB interface for data storage and transfer via USB flash drive;
7. Programmable automatic power-off function to save power;
8. Built-in high-capacity lithium battery, standby time exceeds 8 hours.
Parameter:
Measuring range: Current: 0 ~ 10000mA, can also be customized according to users; Frequency: 45 ~ 400Hz;
Measurement accuracy: ±1% or ±0.1mA;
Resolution: 0.0001mA, 5 significant digits;

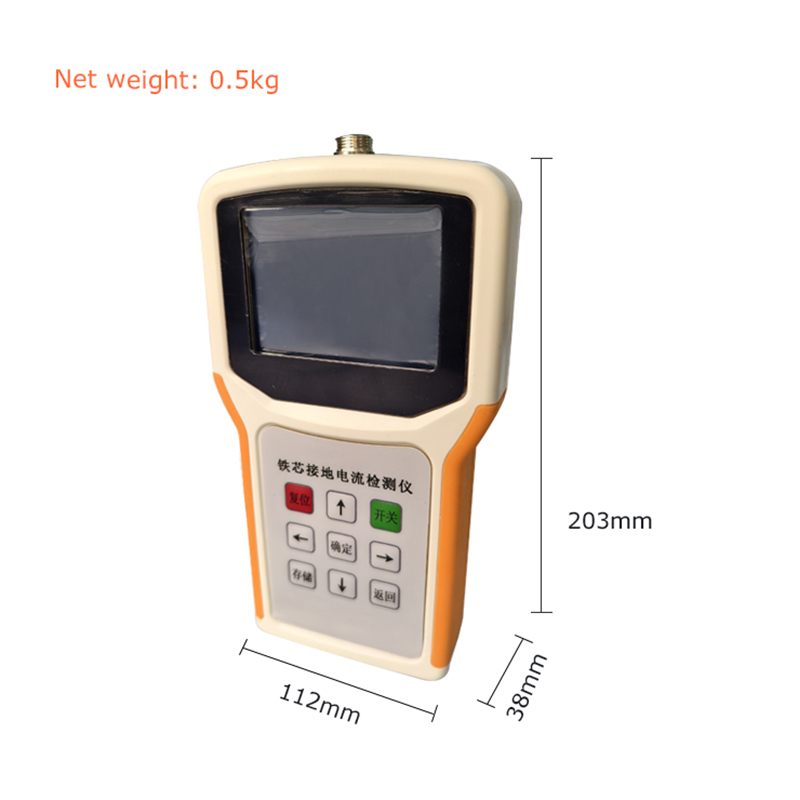

Host size: 203mm×112mm×38mm
Weight: 0.5kg
Conditions of use
Ambient temperature: -10℃ ~ +50℃
Ambient humidity: ≤85℅RH, non-condensing
Power supply: Built-in lithium battery (DC12.6V)
