Home > Products > Insulation Oil Testing Equipment

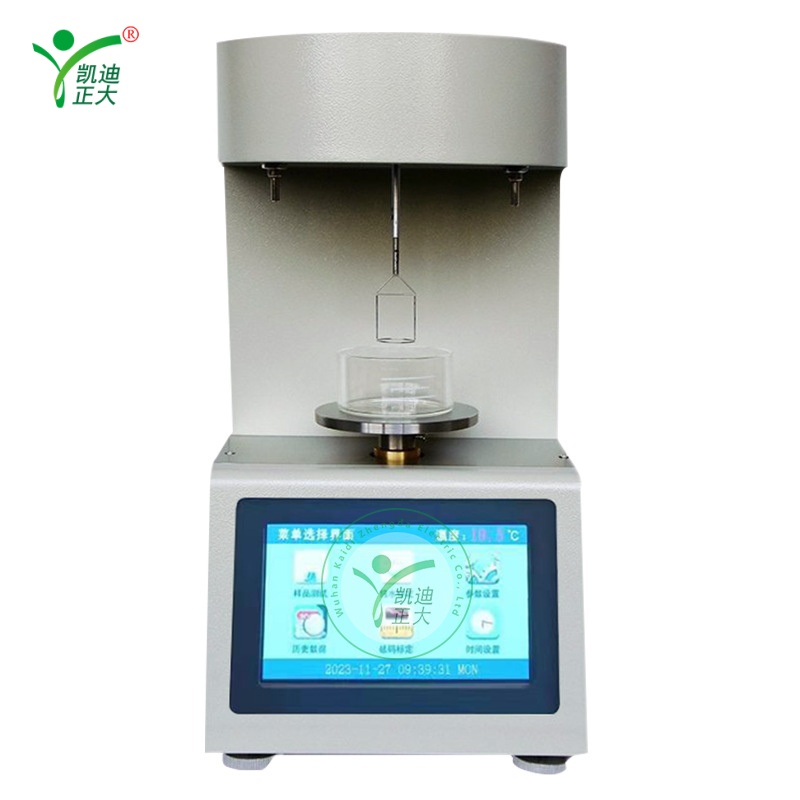

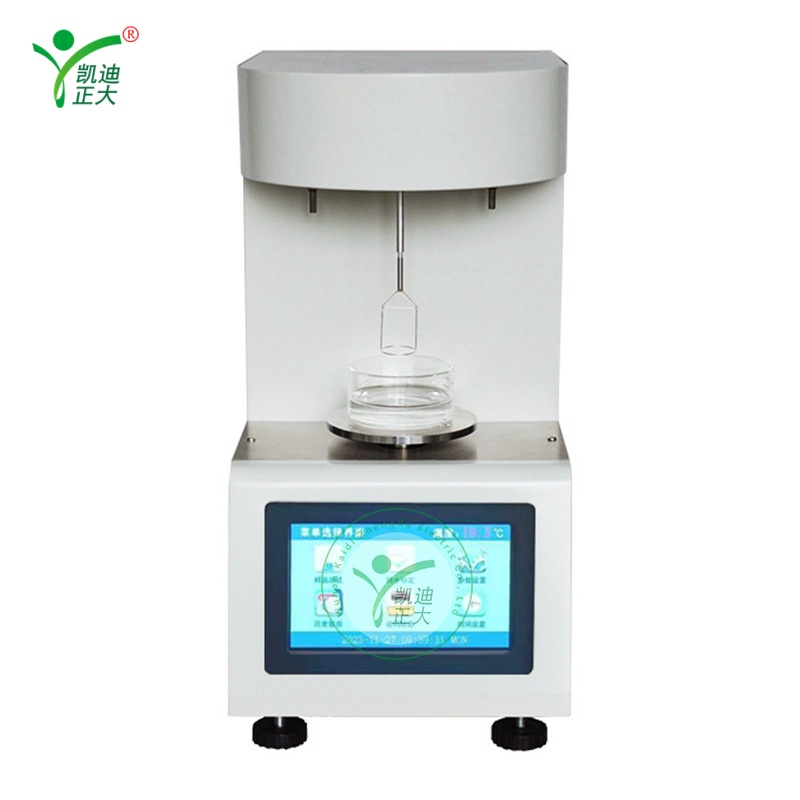

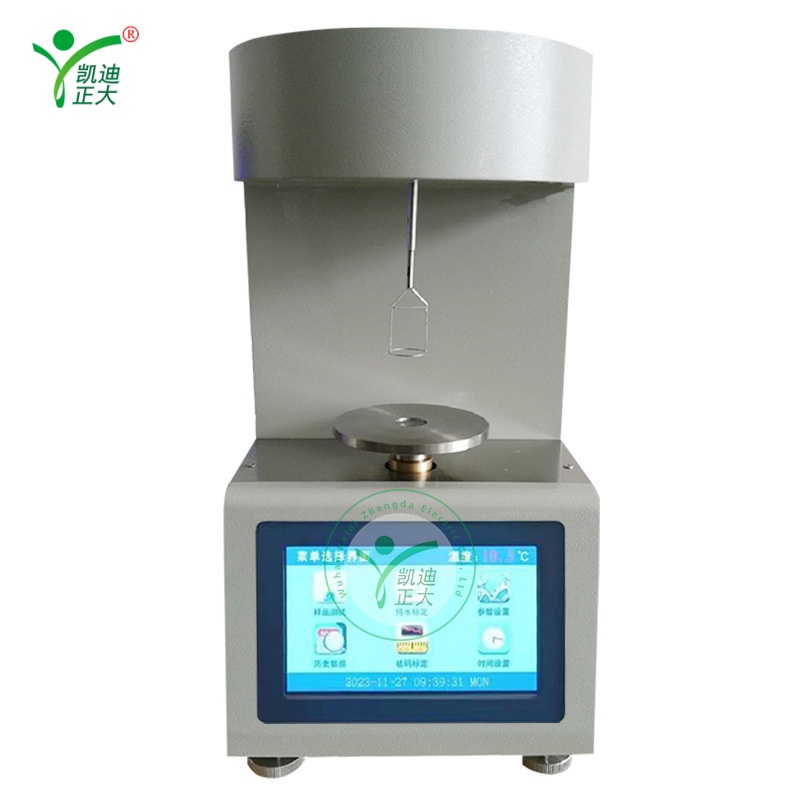

KDZL-807G Fully Automatic Interface Tension Tester
KDZL-807G Fully Automatic Interface Tension Tester

KDZL-807G Fully Automatic Interface Tension Tester

Applications:

Compliant with GB6541-86, it measures surface tension (liquid-gas) and interfacial tension (liquid-liquid) of petroleum products and mineral oils. Ideal for oil refineries, power labs, and QC departments to ensure liquid performance and compliance.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDZL-807G is a fully automatic surface/interfacial tension meter designed to meet GB6541-86 standards using the platinum ring method. It features a color touchscreen interface with Chinese menu prompts, guiding users through all tests defined in the standard. With high automation, reliable performance, and excellent repeatability, it simplifies operation—users only need to power on and follow on-screen prompts to complete full testing, making it ideal for efficient quality control.

Features:

  • Compliant with GB6541-86 standard for accurate surface/interfacial tension measurement
  • Platinum ring method for reliable liquid-gas and liquid-liquid interface testing
  • Color touchscreen with intuitive Chinese menu prompts for easy operation
  • High automation: one-click testing with minimal user intervention
  • Excellent repeatability (0.3%) and high measurement precision
  • Compact design suitable for laboratory use

Parameter:

  • Display: Color touchscreen with Chinese menu prompts
  • Measurement Range: 2~200 mN/m
  • Sensitivity: 0.1 mN/m
  • Accuracy: 0.1 mN/m
  • Resolution: 0.01 mN/m
  • Repeatability: 0.3%
  • Operating Temperature: 10~30°C (typical: 25°C)
  • Operating Humidity: 20~75% RH
  • Power Supply: AC 220V±5% 50Hz
  • Power Consumption: 20VA
  • Dimensions: 185×260×360 mm
  • Weight: 15kg
