KDSZ-803D 3-Cup Automatic Acid Number Tester for Insulating & Lubricating Oils

KDSZ-803D 3-Cup Automatic Acid Number Tester for Insulating & Lubricating Oils

Applications:

Compliant with GB/T7598-2008, it accurately tests acid number in insulating oil, turbine oil, anti-combustion oil, and lubricating oil. Ideal for power plants, oil refineries, and QC labs to monitor oil degradation and ensure equipment reliability.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

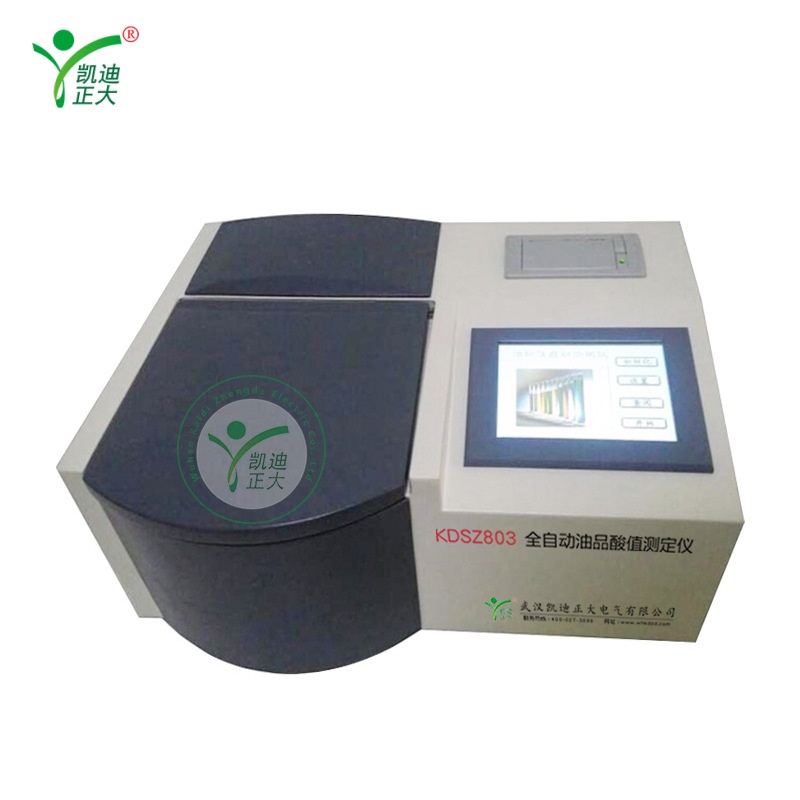

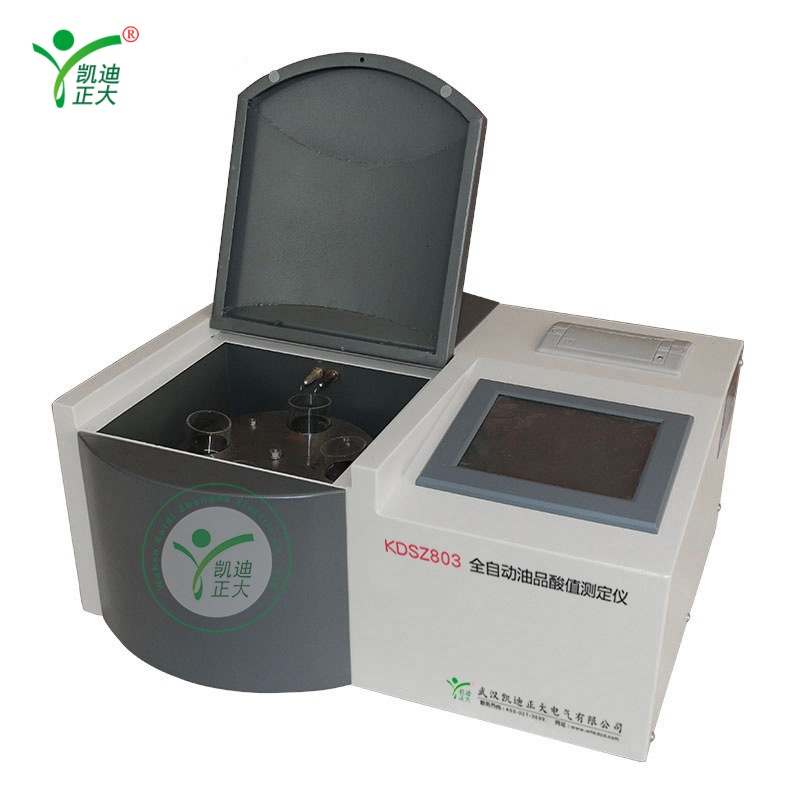

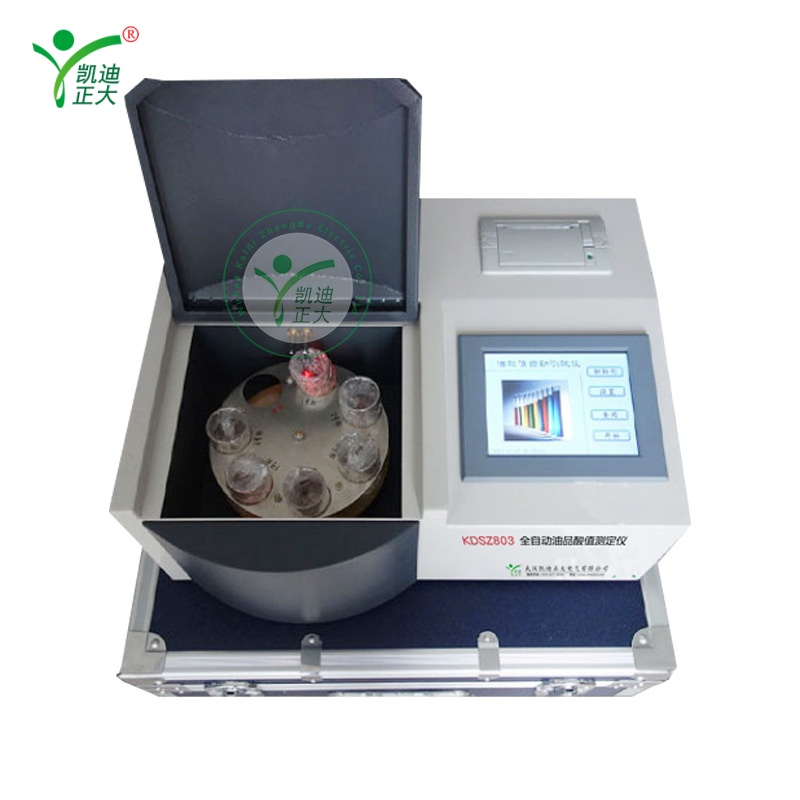

The KDSZ-803D is a fully automatic acid number tester based on the neutralization method. Under constant temperature, a microprocessor automatically handles reagent dosing, stirring, titration, and endpoint detection. Operated via a large touchscreen LCD, it supports 1–3 parallel tests with an average analysis time of 2 minutes per sample. It stores up to 35 result sets and prints all relevant parameters, delivering efficient, reliable oil quality analysis.

Features:

Compliant with GB/T7598-2008 standard for precise acid number detection
Neutralization method with full microprocessor-controlled automation
Supports 1–3 parallel sample tests, cutting analysis time to 2 minutes per sample
Large touchscreen color LCD for intuitive operation and clear data display
Stores up to 35 test results and enables full parameter printing
Glass reagent containers prevent plastic additive contamination
Safe design: no direct contact with organic solvents required

Parameter:

Linear Range: 0.001~0.400 mgKOH/g
Correlation Coefficient: 0.999~0.9998
Recovery Rate: 98~103%
Minimum Resolution: 0.001 mgKOH/g
Repeatability: 2~5% (RSD)
Measurement Accuracy: ±0.003 mgKOH/g (0.001~0.100 mgKOH/g); ±2~5% of reading (0.100~0.400 mgKOH/g)
Display: Large touchscreen color LCD (Chinese interface)
Dimensions: 430mm (L) × 370mm (W) × 190mm (H)
Net Weight: 9kg
