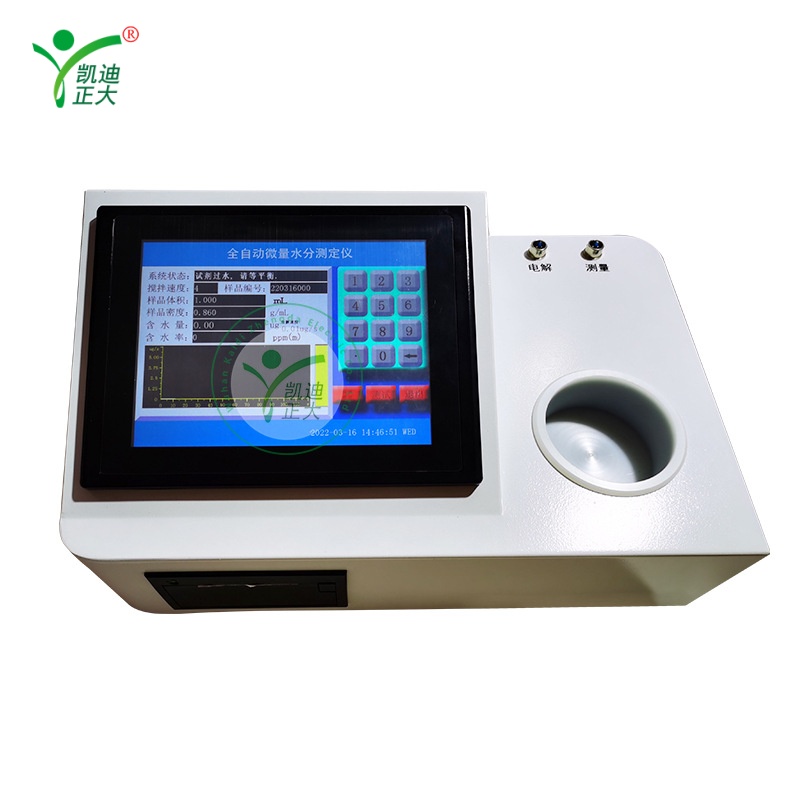

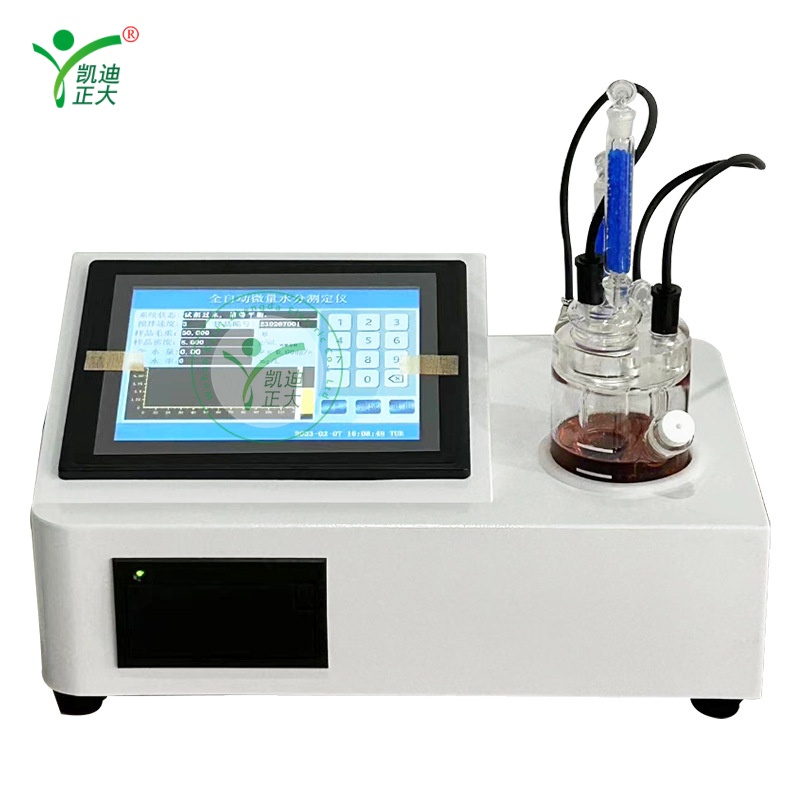

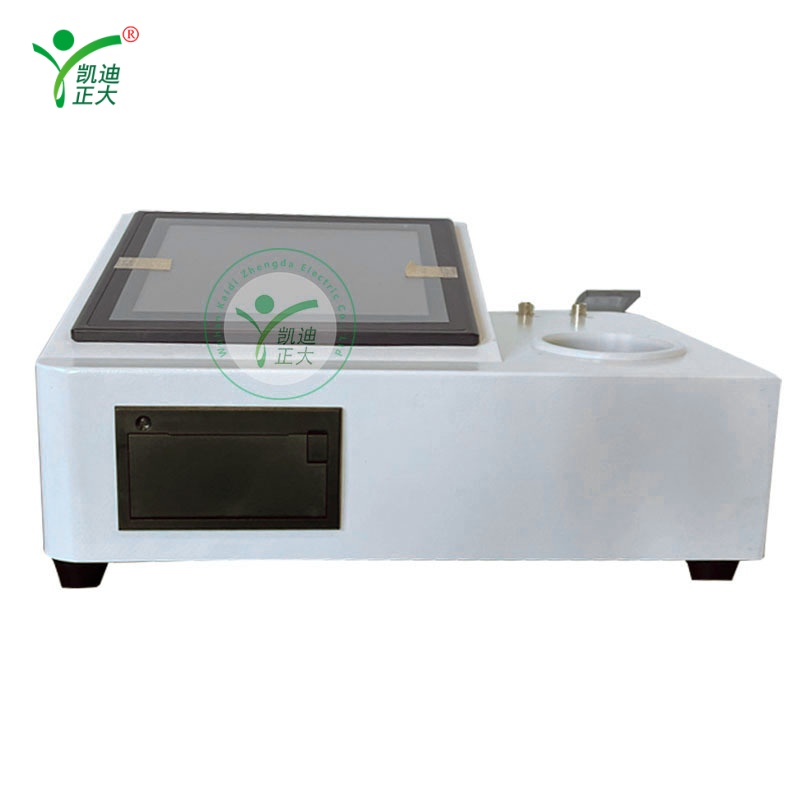

KDWS809G Fully Automatic Karl Fischer Coulometric Moisture Analyzer
KDWS809G Fully Automatic Karl Fischer Coulometric Moisture Analyzer

KDWS809G Fully Automatic Karl Fischer Coulometric Moisture Analyzer

Applications:

Ideal for measuring trace moisture in liquids, gases, and solids across petroleum, chemical, power, and pharmaceutical industries. Perfect for quality control labs, ensuring material safety and compliance with industry standards.

  • The KDWS809G fully automatic micro moisture analyzer adopts an LCD large screen color display;
  • Experimental result storage, printing function, and time display function.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDWS809G is a next-generation fully automatic trace moisture analyzer based on Karl Fischer coulometric titration. Equipped with an 8-inch large color LCD touchscreen and a microprocessor control system, it offers intuitive menu-driven operation and high flexibility. It features high sensitivity, fast testing speed, and strong repeatability. Beyond basic moisture detection, it supports 8 built-in calculation formulas, data storage, printing, and real-time time display, making it an upgraded replacement for traditional moisture testers.

Features:

  • Advanced Karl Fischer coulometric titration for precise trace moisture analysis
  • 8-inch color LCD touchscreen with user-friendly menu interface
  • Microprocessor control & 0–400mA automatic electrolysis current regulation
  • High sensitivity (0.1ug H₂O) and accurate testing results
  • 8 built-in calculation formulas with automatic unit conversion
  • Multi-functional: data storage, printing, and real-time time display
  • Compact design with low power consumption (<100W) for lab efficiency

Parameter:

  • Titration Method: Microprocessor-controlled Coulometric Titration
  • Electrolysis Current Output: 0–400mA automatic control
  • Display System: 8-inch color LCD display
  • Human-Computer Interaction: Touchscreen input
  • Resolution: 0.1ug H₂O
  • Testing Accuracy: ±2ug for 3ug~1mg H₂O; ±0.2% for >1mg H₂O (excluding sampling error)
  • Power Consumption: <100W
  • Operating Environment: Temperature 5°C~40°C, Humidity ≤85%
  • Power Supply: AC220V±10% 50Hz±2.5Hz
  • Built-in Formulas: 8 calculation formulas
