KDSR-303D 6-Cup Automatic Water-Soluble Acid Tester for Insulating Oil PH Test
KDSR-303D 6-Cup Automatic Water-Soluble Acid Tester for Insulating Oil PH Test

KDSR-303D 6-Cup Automatic Water-Soluble Acid Tester for Insulating Oil PH Test

Applications:

Designed to test water-soluble acidity in insulating oil, turbine oil, and anti-combustion oil per GB/T7598-2008. Ideal for power plants, transformer maintenance labs, and oil quality inspection centers to ensure safe operation of electrical equipment by monitoring oil PH levels.

  • Using colorimetric method to determine pH value;
  • The color touch LCD screen can be easily operated through a touch sensitive LCD screen;
  • One can process and sequentially complete the testing of 1-6 samples.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

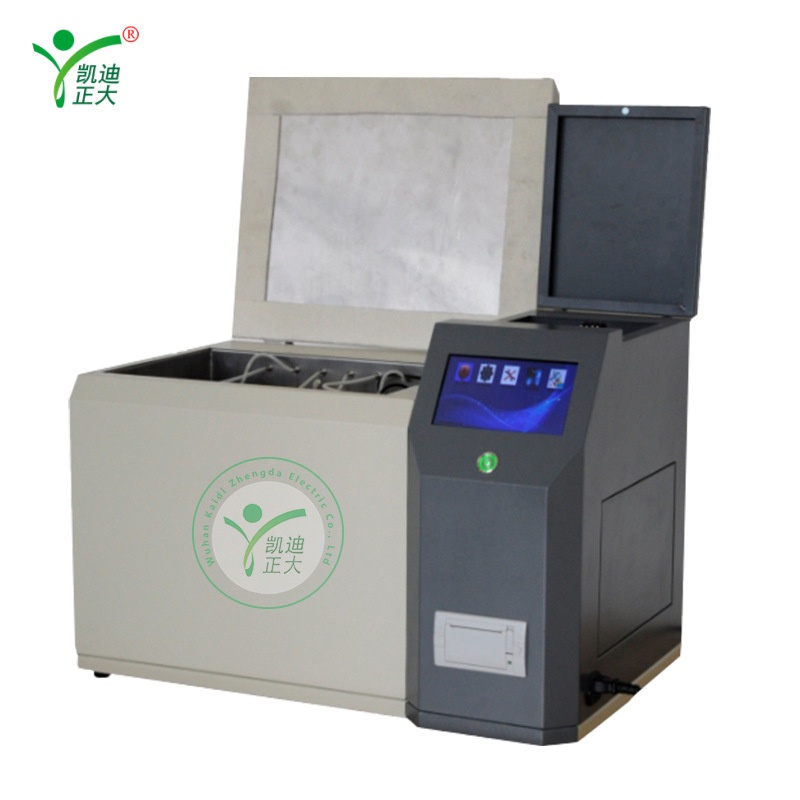

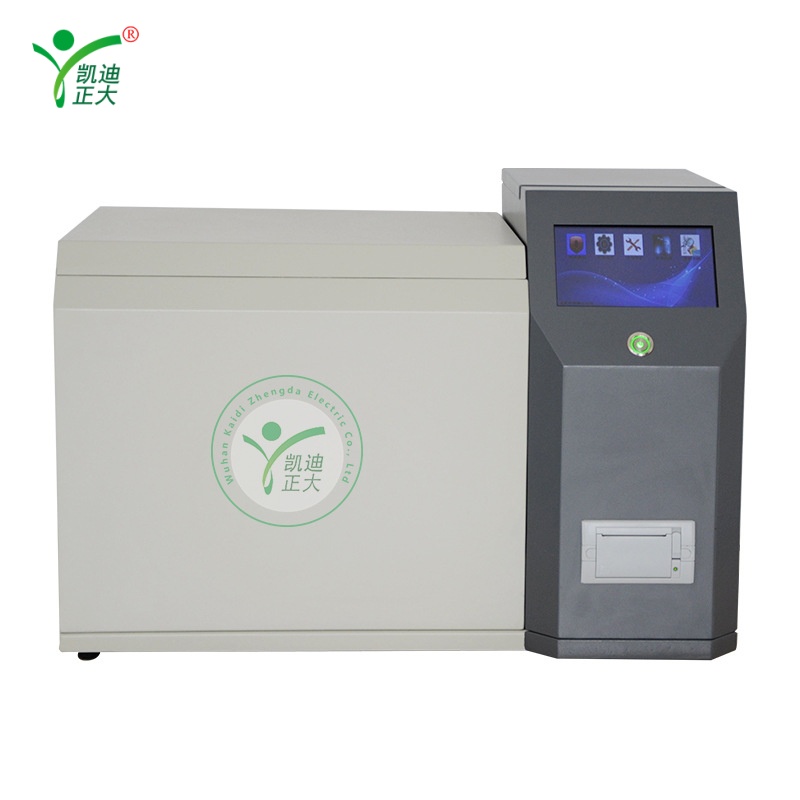

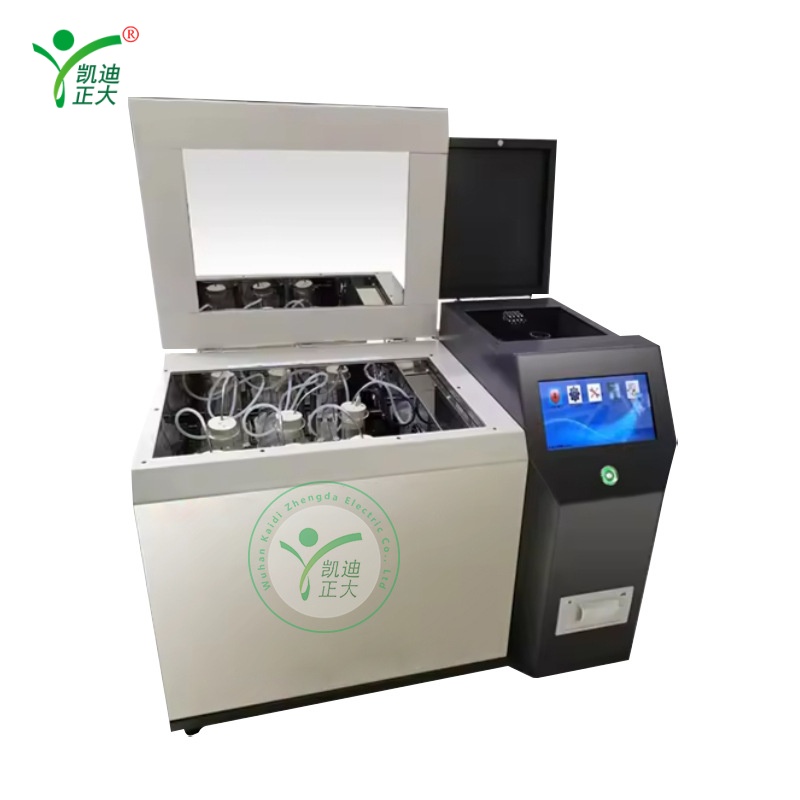

The KDSR-303D is a fully automatic water-soluble acid tester developed in accordance with national standard GB/T7598-2008. It adopts a large color touchscreen and microprocessor control, enabling fully automated operations including heating, constant temperature, shaking, sampling, testing, cleaning, and printing. It can process 1 to 6 samples sequentially in one run, significantly reducing testing time and improving efficiency for oil product quality control.

Features:

  • Compliant with GB/T7598-2008 standard for accurate oil water-soluble acidity detection
  • 7-inch color touchscreen for intuitive operation and clear data display
  • Fully automated workflow: heating, shaking, static separation, colorimetry, and result printing
  • Supports simultaneous testing of 1–6 samples to boost lab efficiency
  • Stable constant temperature control (±2°C) ensures reliable test results

Parameter:

  • Measurement Range: PH 3.6~7.0
  • Minimum Display Unit: 0.1 PH
  • Constant Temperature Accuracy: ±2°C
  • Operating Environment: -1~45°C, relative humidity ≤85%
  • Power Supply: AC (220±10%) V, 50Hz±1Hz, power consumption <600W
  • Dimensions: L660mm × W415mm × H470mm
  • Wavelengths: 660 nm, 415 nm, 470 nm
  • Weight: 36kg
