Profile:

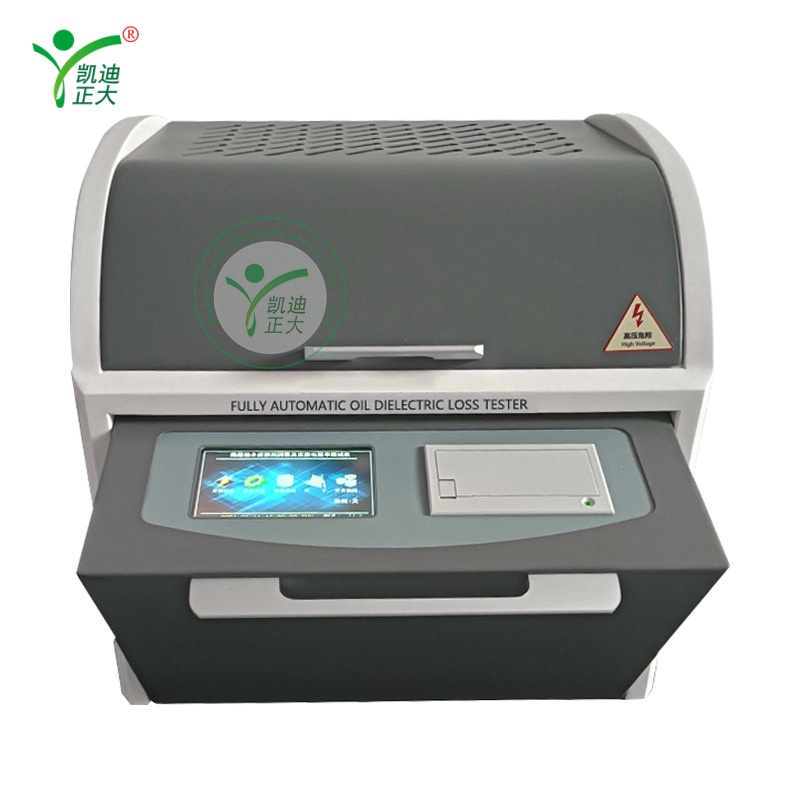

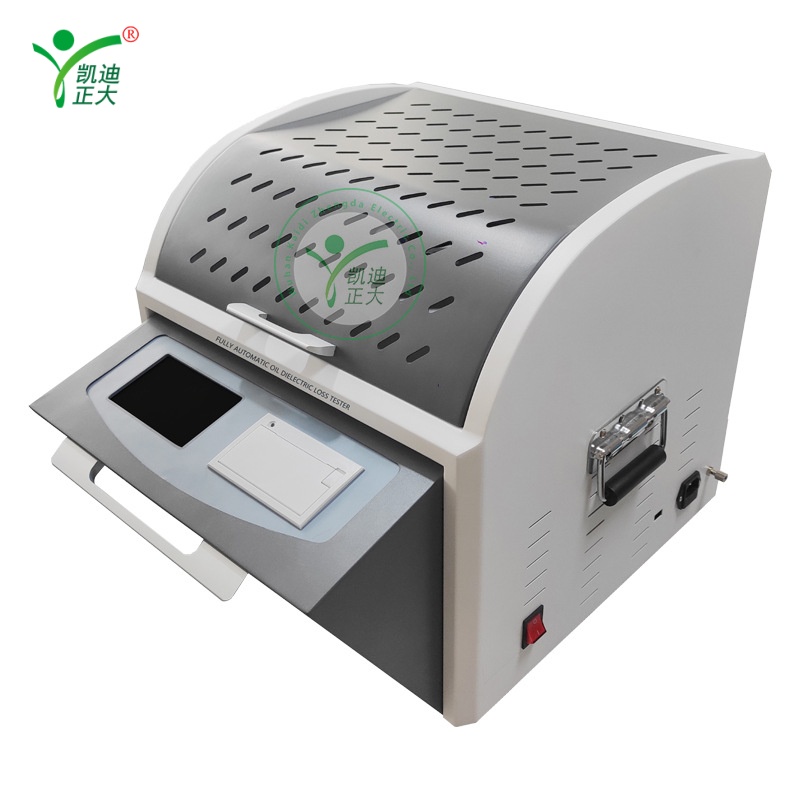

The KD610G insulation oil dielectric loss factor and DC resistivity tester is controlled by a microcomputer, which is easy to use, has high measurement accuracy, high testing efficiency, and reduces the labor intensity of test personnel.
Features:

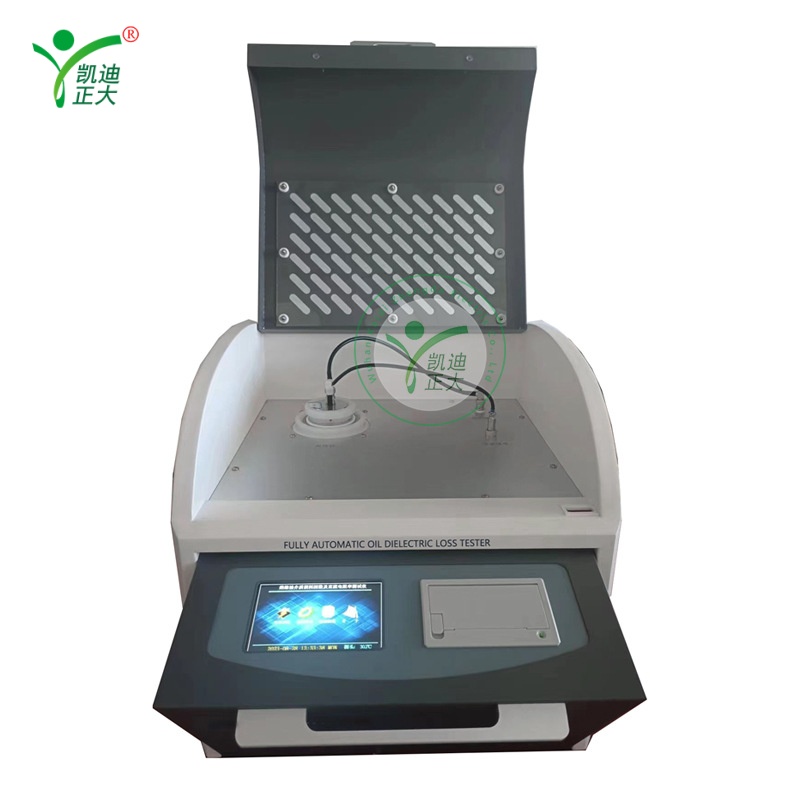

1.The KD610G insulation oil dielectric loss factor and DC resistivity tester is an integrated structure, controlled by a microcontroller. It completes electrode cup heating, temperature control, voltage adjustment, automatic testing, and data printing according to different models or settings;
2. The series of instruments adopts an 800 × 480 point large screen color touch screen LCD display, thermal printer, and simple operation;
3. Using standard SF6 capacitors as internal standards, it is less affected by air humidity;
4. It has protection functions such as overvoltage, overcurrent, temperature limit, and limit position;
5. Adopting medium frequency induction heating method to achieve uniform heating of the electrode cup in a short period of time;
6. Test the temperature of the inner electrode using a temperature probe placed inside the electrode cup;
7. The measurement results are accurate, reliable, and have good repeatability.
Parameter:
AC test voltage range: 0-2000VAC 50Hz
Test temperature range: Room temperature to 125 ℃
Dielectric loss test range: 0.00001 to 1
Measurement accuracy: ± (indication × 0.5%+0.0001)
Relative dielectric constant: ± (indicated value × 0.5%+0.1)
Resolution of resistivity: 0.001M Ω· m
Measurement range of resistivity: 2.5M Ω· m~20T Ω· m
Power: 500W
Dimensions: 420mm * 420mm * 400mm
Usage conditions
Power supply voltage: AC220V ± 22V
Environmental temperature: 0 ℃~40 ℃
Relative humidity of the environment: less than or equal to 75%
