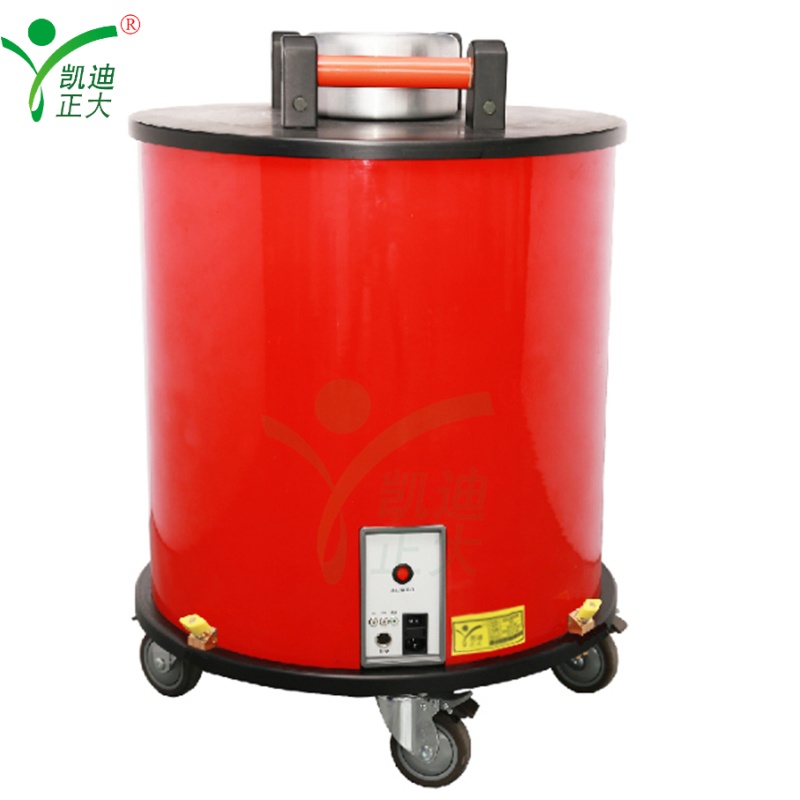

KDDAC-30 Cable Oscillation Wave PD Test System
KDDAC-30 Cable Oscillation Wave PD Test System

KDDAC-30 Cable Oscillation Wave PD Test System

Applications:

Complies with IEC60270, used for partial discharge (PD) testing, positioning and dielectric loss measurement of 10kV power cables (200m~20km). Applied in power grids and maintenance teams for on-site detection of insulation defects and aging assessment.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDDAC-30 is an integrated PD test system with wireless control, combining laser-triggered high-voltage switch and 100MHz sampling rate. It features portable design, full Chinese interface and automatic calibration, enabling efficient and accurate on-site cable testing.

Features:

  • Laser-triggered high-voltage switch with on-time 1μs and on-resistance <1Ω for stable oscillation wave output
  • Wireless/wired dual-control mode (IEEE 802.11a) for flexible on-site operation
  • PD positioning accuracy ≤1% of cable length (minimum resolution 2m) with 150kHz~45MHz automatic bandwidth adjustment
  • Built-in TDR function to measure cable length, joint position and wave speed accurately
  • Full Chinese software interface, supporting automatic/manual calibration (20pC~100nC, 12 gears)
  • Simultaneous measurement of PD signal, dielectric loss and cable capacitance for comprehensive insulation assessment
  • External safety control unit with emergency stop and lock switch for enhanced operational safety

Parameter:

  • Core Output Performance
    • Maximum oscillation wave voltage: 30kV; Oscillation frequency range: 20Hz~300Hz
    • High-voltage charging current: 5mA; Input power: 220VAC±10%, 50Hz (≥1000W)
  • PD Measurement
    • PD measurement range: 1pC~100nC; Sampling rate: 100MHz; Storage depth: 32MB (300ms data)
    • PD positioning bandwidth: 150kHz~45MHz (automatic adjustment); Conforms to IEC60270
  • Test Range & Accuracy
    • Cable length range: 200m~20km; PD positioning accuracy: ≤1% of cable length (min 2m)
    • Dielectric loss measurement range: 0.1%~10%; Cable capacitance measurement included
  • Control & Software
    • Control mode: Wireless (password "12345") + wired (TCP/IP); Control host: Laptop (T470)
    • Software functions: Full Chinese interface, PD waveform amplification/analysis, automatic report generation
  • Safety & Environment
    • Safety control: Emergency stop, lock switch, high-voltage warning light
    • Working conditions: -20℃~70℃ (implied), Relative humidity ≤95% (no condensation)
  • Accessories

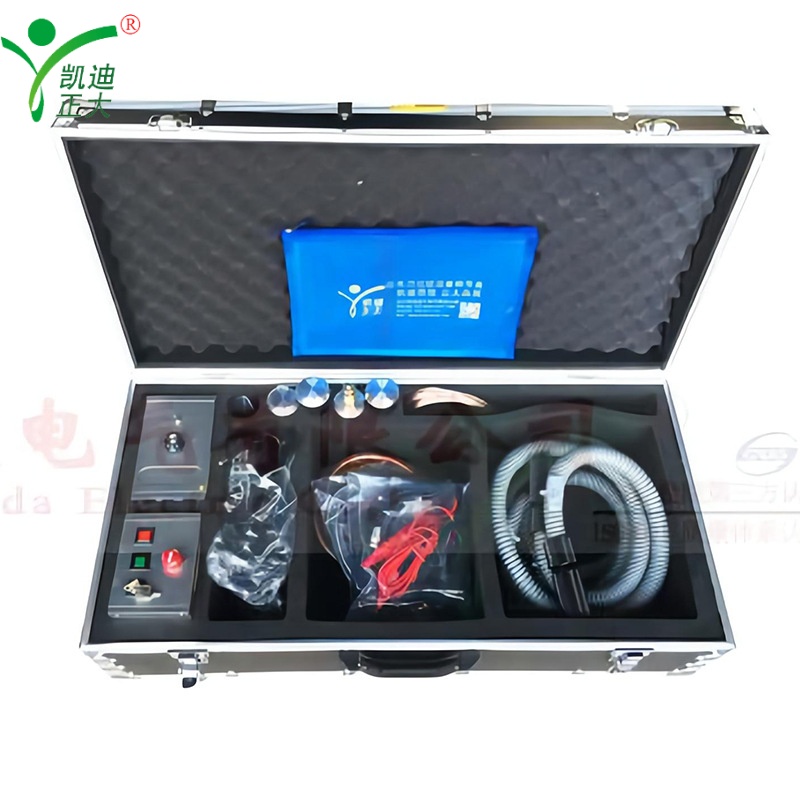

    • Standard accessories: 25m high-voltage cable, compensation capacitor (100nF), discharge rod, calibration box, emergency stop unit, TDR tester, grounding wires, power cord
