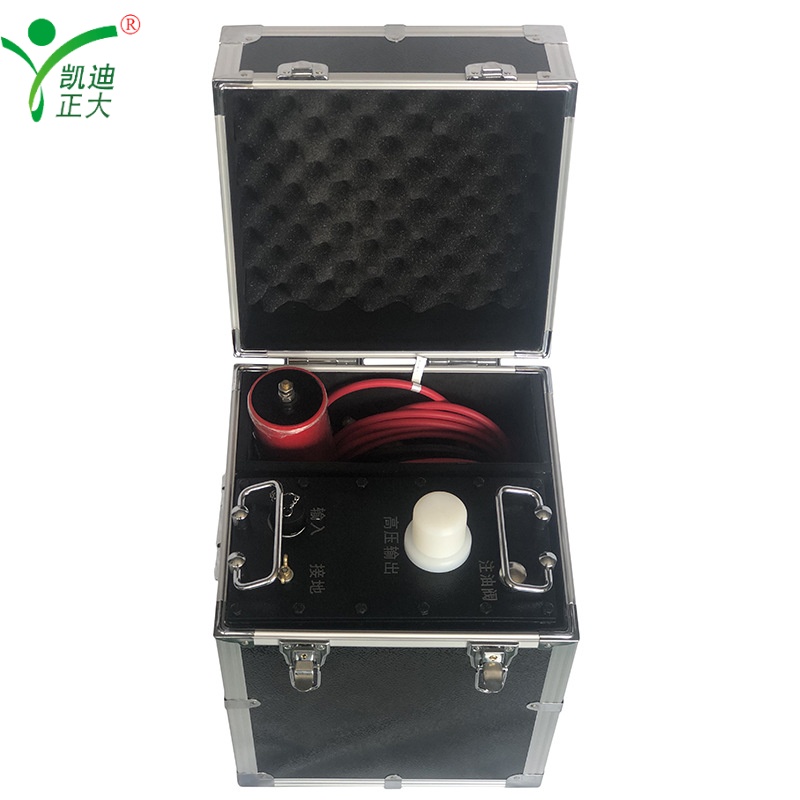

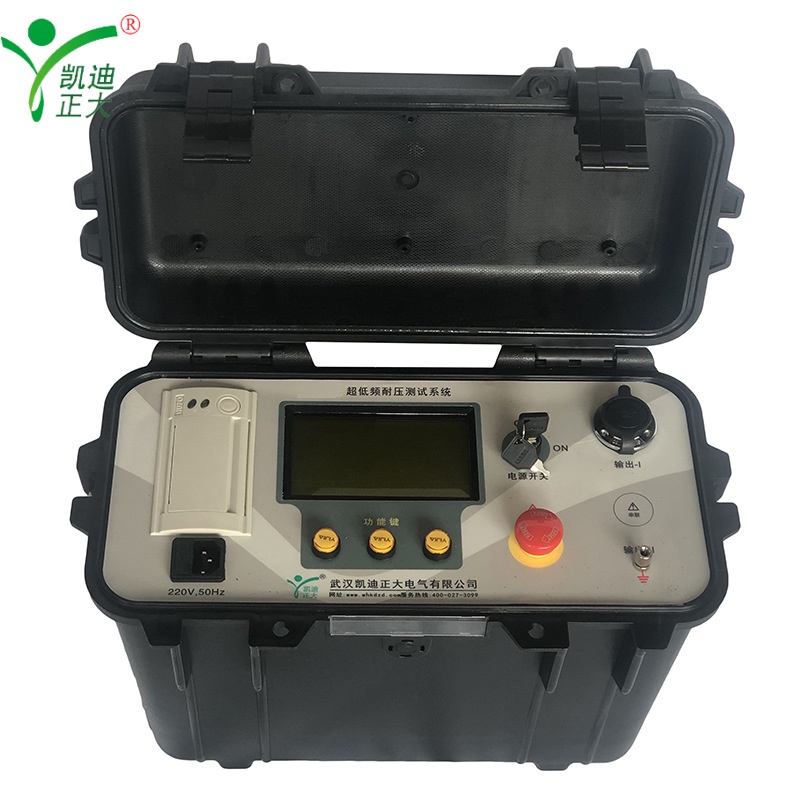

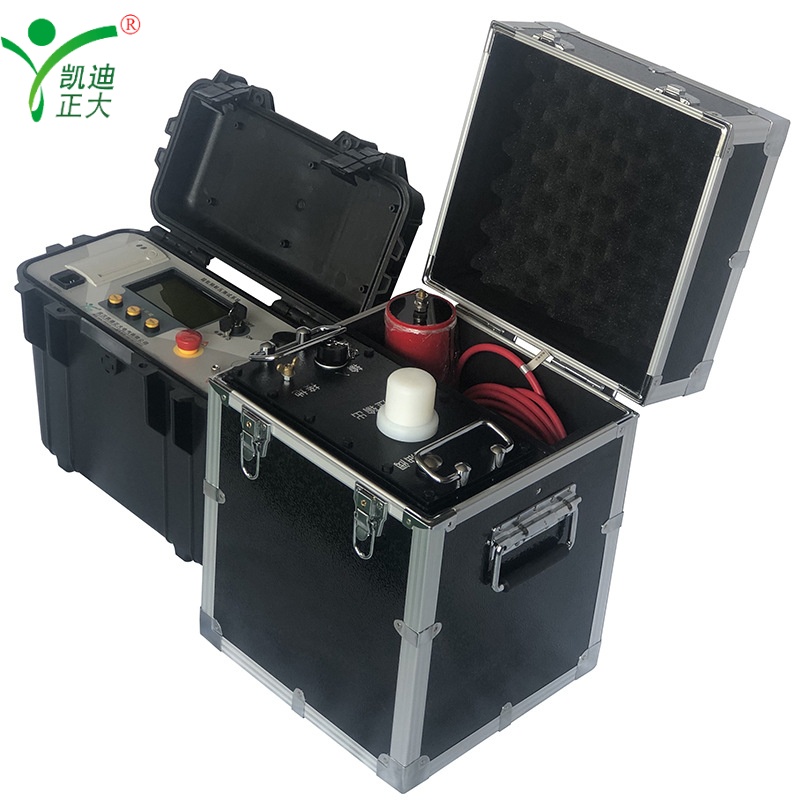

KDVLF-TD Very-Low Frequency Dielectric Loss Tester
KDVLF-TD Very-Low Frequency Dielectric Loss Tester

KDVLF-TD Very-Low Frequency Dielectric Loss Tester

Applications:

Complies with CENELEC HD 620/621 S1, used for dielectric loss, withstand voltage, DC leakage and sheath tests of XLPE/PE cables. Applied in power utilities and cable manufacturers to detect insulation defects like water trees.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDVLF-TD is an integrated ULF tester with multi-waveform output (sine/DC/rectangular wave). It features automatic testing, USB data export and multi-language UI, enabling accurate and efficient cable insulation assessment.

Features:

  • Integrates ULF withstand voltage, dielectric loss, DC leakage and sheath tests in one unit
  • Multi-waveform output: 0.1Hz sine wave, DC voltage and rectangular wave for diverse test needs
  • Automatic frequency adjustment (0.01Hz-0.1Hz) adapting to cable capacitance
  • Real-time display of waveform, tanδ, capacitance and resistance with 1% measurement accuracy
  • Automatically tests at 0.5U0, U0, 1.5U0 and generates insulation health assessment reports
  • USB 2.0 interface for data export and firmware update, supports multi-language operation
  • Compact Peli Case packaging (22kg) for easy transportation and on-site use

Parameter:

  • Output Performance (Dual Models)
    • VLF-34kV: Sine wave 24kVrms (34kVpeak), DC ±1~34kV; VLF-45kV: 31.8kVrms (45kVpeak), DC ±1~45kV
    • Voltage resolution: 0.001kV; Accuracy: ±1%
  • Dielectric Loss Measurement
    • Range: 1×10⁻⁴~9999.9×10⁻⁴; Resolution: 1×10⁻⁵; Accuracy: ±1×10⁻⁴
    • Frequency: 0.1Hz; Load range: 1nF~8μF (34kV), 1nF~5μF (45kV)
  • Current & Load Capacity
    • Measurement range: 0~14mA; Resolution: 1μA; Accuracy: ±1%
    • Max capacitive load: 0.5μF (0.1Hz/34kV), 1.0μF (0.05Hz/34kV), 5.0μF (0.01Hz/45kV)
  • General Specifications
    • Power supply: AC 110V~230V, 50/60Hz; Power consumption: ≤400VA
    • Working temperature: -10℃~+50℃; Storage temperature: -20℃~+60℃
    • Dimensions: 430×240×340mm; Weight: 22kg
    • Safety compliance: CE, Low Voltage Directive 2014/35/EC, EMC Directive 2014/30/EC
  • Accessories
    • Standard accessories: Main power cord (2.5m), grounding cable (4m), high-voltage cable (5m), USB flash drive, user manual, accessory kit
