KDZG-II 200kV/2mA DC High-Voltage Generator

KDZG-II 200kV/2mA DC High-Voltage Generator

Applications:

Complies with DL/T848.1-2004, used for DC withstand voltage tests of zinc oxide arresters, power cables, transformers and generators. Applied in power departments, factories and research institutes for on-site and laboratory high-voltage insulation performance detection.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

KDZG-II 200kV/2mA is a portable DC high-voltage generator adopting PWM technology and IGBT devices. It features stable output, low ripple and multiple protections, with integrated/split design for convenient on-site operation.

Features:

PWM pulse width modulation technology ensures high voltage stability (≤1%) and low ripple coefficient (≤1%)
One-key 0.75UDC-1mA function for precise zinc oxide arrester testing (accuracy ≤1.0%)
Digital display of voltage and current with ±(1.0% reading ±2 digits) measurement accuracy
Dial switch for overvoltage protection setting, intuitive and easy to operate
Epoxy glass fiber reinforced plastic voltage doubling cylinder with air insulation, no leakage risk

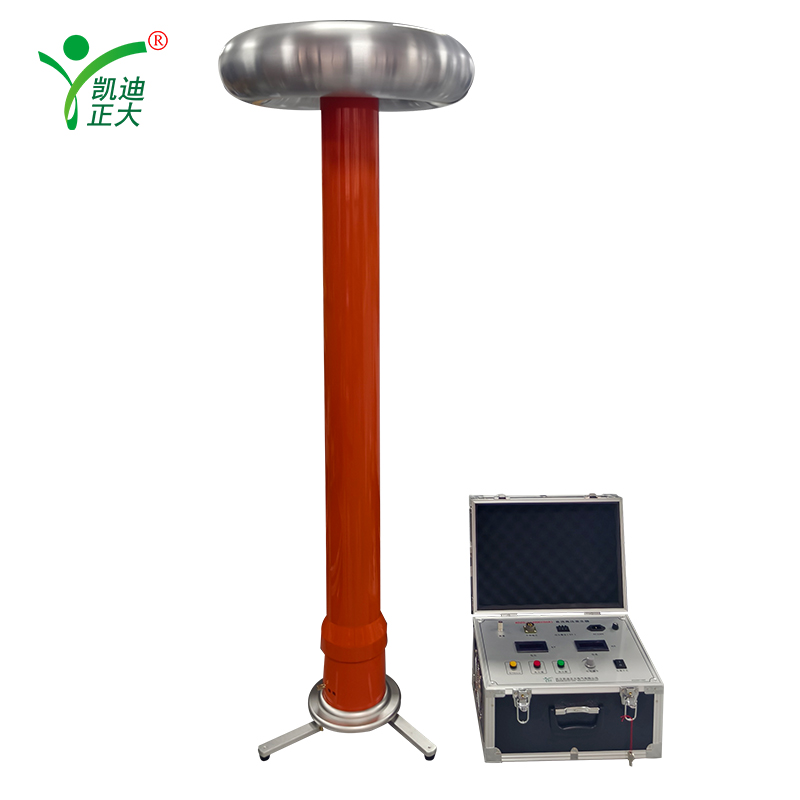

Foldable feet (split model) and compact control box for enhanced stability and portability
Zero-start voltage regulation with fine adjustment (accuracy ≤0.5%) for safe operation

Parameter:

Core Output Performance (200/2 split model)
- Rated voltage: 200kV DC; Rated current: 2mA; Rated power: 400W
- Voltage measurement accuracy: ±(1.0% reading ±2 digits); Current measurement accuracy: ±(1.0% reading ±2 digits)
- Ripple coefficient: ≤1%; Voltage stability: ≤1% (when power supply changes ±10%)
Overload Capacity
- No-load voltage: 10% higher than rated voltage, usable for 10 minutes
- Maximum charging current: 1.5×rated current; Capacitive load capacity: Unlimited
Power Supply
- Input: Single-phase AC 220V±10%, 50Hz
Working Conditions
- Working mode: Intermittent (max 30 minutes continuous operation)
- Temperature: -10～40℃; Relative humidity: ≤85% (25℃, no condensation); Altitude: ≤1500m
Physical Specifications (split model)
- Control box weight: 4.5kg; Voltage doubling cylinder weight: 11.5kg
- Voltage doubling cylinder height: 965mm
- Structure: Epoxy glass fiber reinforced plastic voltage doubling cylinder, air insulation; Foldable "Y" type feet
Function & Operation

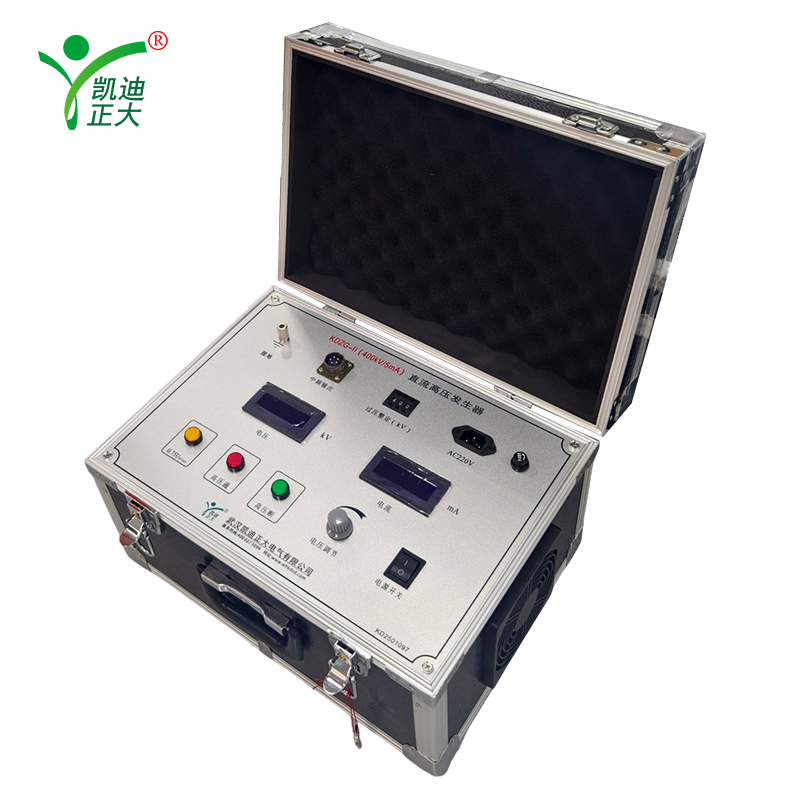

- Control buttons: Power on/off, high voltage on/off, 0.75UDC1mA button, voltage adjustment potentiometer
- Protection functions: Overvoltage, overcurrent, zero-start protection
Series Model Reference (partial)
- Integrated models: 40/3 (40kV/3mA) to 120/5 (120kV/5mA)
- Split models: 200/3 (200kV/3mA), 300/5 (300kV/5mA), 400/5 (400kV/5mA); Customizable 500～1000kV
Accessories

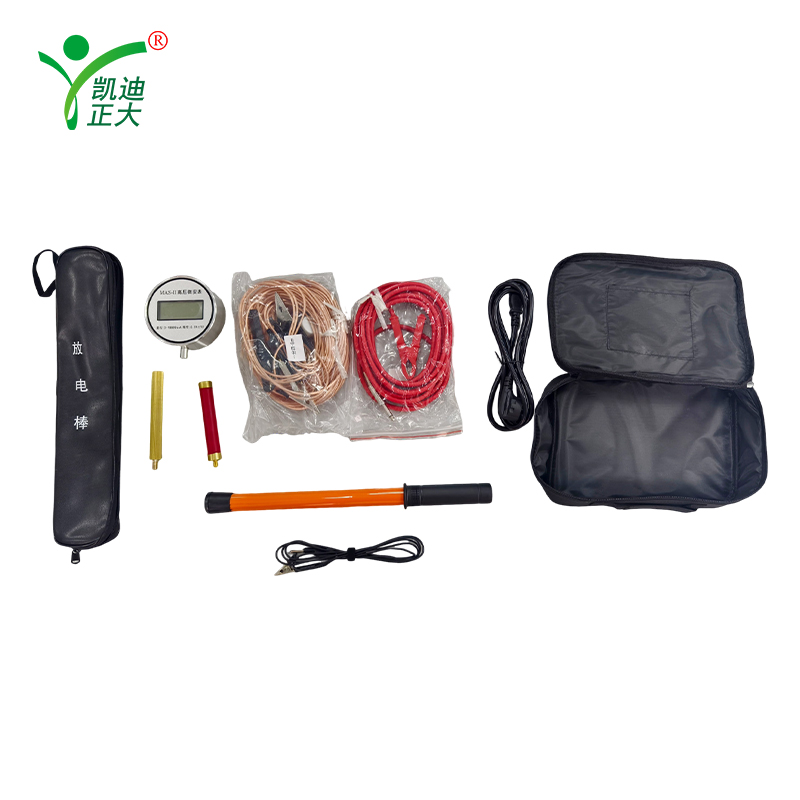

- Standard accessories: High-frequency cable, grounding wire, discharge rod, microammeter with shielded wire, fuses, user manual, certificate
